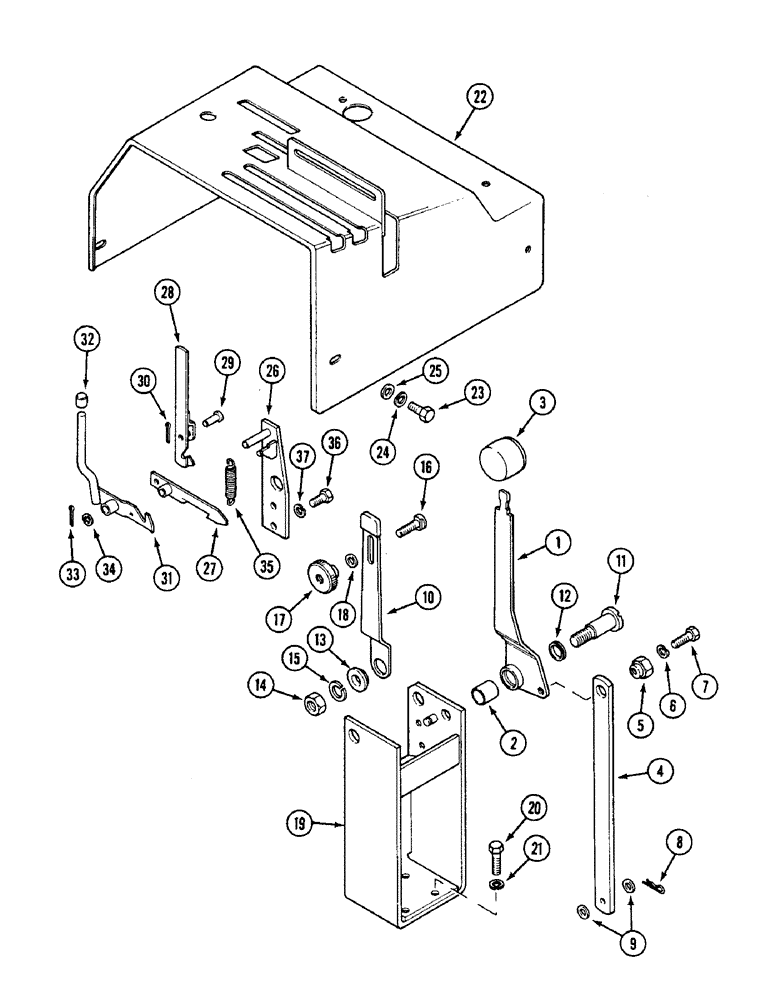

Запчасти Case IH 1594 (8-296) - CONTROL LEVER AND CONSOLE, TRACTORS WITHOUT CAB (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
K306627
LEVER
- hydraulic control, Includes: Ref. 2
1шт.
2
K621377
BUSHING
- lever pivot
1шт.
3
K306268
KNOB
- control lever
1шт.
4
K306195
LINK
ROD - connecting
1шт.
5
K306196
BUSHING
- eccentric
1шт.
6
K19481
SPRING WASHER
WASHER - lock, 5/16 inch
1шт.
7
K612804
SCREW
BOLT - set, 5/8 UNF x 7/8 inch
1шт.
8
K950865
CLIP
- retaining
1шт.
9
K626662
WASHER
- 1/4 inch
2шт.
10
K306190
GUIDE
LEVER - guide
1шт.
11
K305521
PIN
- pivot, M12
1шт.
12
K628130
SEAL
RING - sealing
2шт.
13
K305522
BUSHING
SPACER - pivot
1шт.
14
825-1112
NUT,M12, Cl 8
- hex, 12 mm - 1.75
1шт.
15
K651850
SPRING
WASHER - lock, 12 mm
1шт.
16
K909577
STUD
- 5/16 inch UNF
1шт.
17
K921826
SERRATED NUT
- hand, 5/16 UNF
1шт.
18
K626682
WASHER
- lever pin, 5/16 inch (8 mm)
1шт.
19
K306181
SUPPORT
BRACKET - lever support
1шт.
20
K602806
BOLT
- 5/16 UNC x 1-1/8 inch
3шт.
21
K19481
SPRING WASHER
WASHER - lock, 5/16 inch
3шт.
22
K311604
PANEL
CONSOLE - hydraulic controls with folding ROPS
1шт.
22
K306370
PANEL
CONSOLE - hydraulic controls
1шт.
23
K651242
BOLT
- M8 x 20 mm
6шт.
24
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
6шт.
25
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
- flat, 9 x 17 x 1.6 mm
6шт.
REF
INSTRUCTION
LATCH UNIT - control lever, Order components, Includes: Ref. 26 - 37
1шт.
26
K306185
SUPPORT
BRACKET - lock support
1шт.
27
K306244
LATCH
LOCK - hold
1шт.
28
K306248
LATCH
LEVER - hand
1шт.
29
K658509
PIN
- clevis
1шт.
30
K652181
PIN
- cotter, 1.6 x 10 mm
1шт.
31
K306228
LATCH
LOCK - full lift
1шт.
32
K306699
KNOB
- lock
1шт.
33
K652183
PIN
- cotter, 1.6 x 16 mm
1шт.
34
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
- flat, 9 x 17 x 1.6 mm
1шт.
35
K624938
SPRING
- return
2шт.
36
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
- hex, full threads, 8 - 1.25 x 16 mm
2шт.
37
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
2шт.
Выбрано товаров: 39
