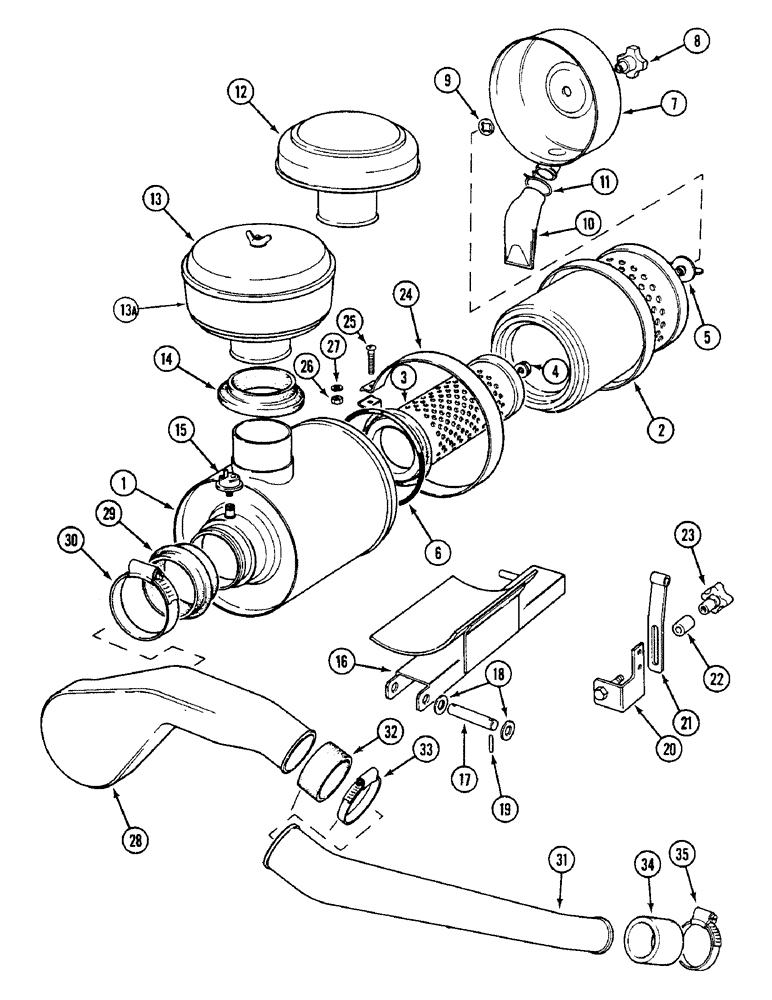

Запчасти Case IH 1594 (2-10) - AIR CLEANER AND TUBES (02) - ENGINE

1

K305980

CLEANER

ASSEMBLY - air, engine, Includes: Ref. 2 - 9

1шт.

2

K306535

FILTER, ELEMENT

ELEMENT - primary

1шт.

3

K306536

ELEMENT

- secondary

1шт.

4

K261052

NUT

ASSEMBLY - wing

1шт.

4

K261051

NUT

ASSEMBLY - wing

1шт.

6

K261053

O-RING

-, Serial Range: cover-body

1шт.

7

K261050

COVER

ASSEMBLY - end, Includes: Ref. 8 & 9

1шт.

8

NSS

NOT SOLD SEPARAT

NUT - retainer, cover

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - retainer nut

1шт.

10

K306537

DUST VALVE

VALVE ASSEMBLY - dust

1шт.

11

K306538

CLIP

CLAMP - hose

1шт.

12

K306180

CAP

- stack

1шт.

13

K306279

CLEANER

PRE-CLEANER ASSEMBLY - air

1шт.

re it no. 13A - k306279 : clear plastic bowl only is K262485 ph cam 3/4/98

1шт.

14

K206720

RUBBER SEAL

RING - sealing

1шт.

15

K330060

SWITCH

ASSEMBLY - vacuum (Replaces K206667)

1шт.

16

K307454

SUPPORT

ASSEMBLY - air cleaner

1шт.

17

K307461

PIN

- hinge

1шт.

18

K651781

WASHER

- 16 mm

2шт.

19

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

2шт.

20

K308051

BRACKET

- clamping

1шт.

21

K308054

STRAP

- adjusting

1шт.

22

K655719

BUSHING

SPACER - manual, Serial Range: box-fender

1шт.

23

K305983

KNOB

- M8

1шт.

24

K307460

MOUNTING PARTS

STRAP - retainer

2шт.

25

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

26

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

Order 825-1406 M6, Cl 10

2шт.

27

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

28

K206664

PIPE

TUBE - front

1шт.

29

K207048

INTAKE AIR HOSE,4.00" ID x 2.38", SAE J14 Class SC

- Tube to cleaner 4.00" ID x 2.38", SAE J14 Class SC

1шт.

30

K622035

CLAMP

- hose, Order 214-1464

2шт.

31

K307467

PIPE

TUBE - rear

1шт.

32

K626802

HOSE

- front to rear tube

1шт.

33

K622031

CLAMP

- hose, 2-1/4 inch (57 mm) diameter, Order 214-1436

2шт.

34

K206695

LARGE HOSE

HOSE -, Serial Range: tube-manifolds

2шт.

35

K622034

CLAMP

- hose, Order 214-1456

2шт.
