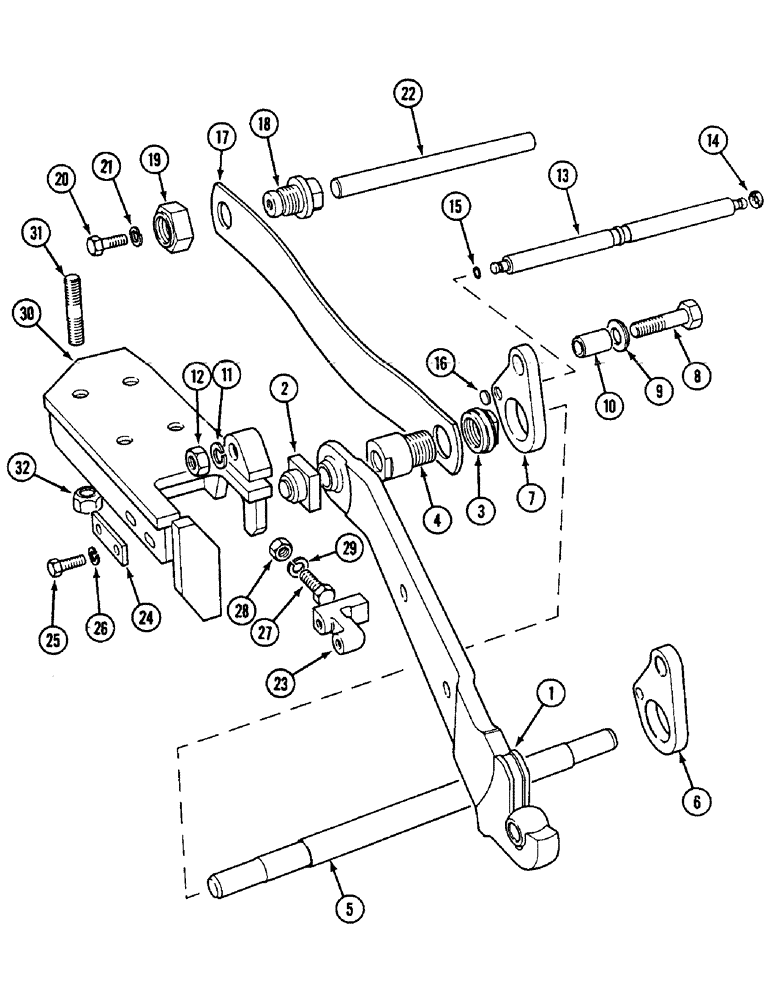

Запчасти Case IH 1594 (8-290) - DRAFT CONTROL MECHANISM (08) - HYDRAULICS

1

K201692

LINK

- lower left-hand, See Figure 9-328

1шт.

2

K204553

CAP

- cross shaft

2шт.

3

K204554

NUT

- 1-3/4 inch

2шт.

4

K204552

SLEEVE

- locking

2шт.

5

K204551

SHAFT

- cross, lower link

1шт.

6

K204548

LINK

- swing, right-hand

1шт.

7

K204549

LINK

- swing, left-hand

1шт.

8

K601411

BOLT

- 3/4 UNC x 3-1/4 inch

2шт.

9

K19476

WASHER

- 3/4 inch (19 mm)

2шт.

10

K954792

BUSHING

- pivot

2шт.

11

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

12

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

13

K204550

SHAFT

- summating

1шт.

14

K626457

RUBBER

WASHER - rubber, shaft

2шт.

15

K625404

O-RING,0.362" ID x 0.103" Width

- 3/8 inch (10 mm) ID

2шт.

16

K10448

PLUG

- core, 3/4 inch (20 mm) OD

2шт.

17

K210363

LARGE PLATE

SPRING - draft control

2шт.

18

K204546

BEARING

- front

2шт.

19

K204547

NUT

- 1-1/2 inch

2шт.

20

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

- hex, 1/2 NC x 1-3/8 inch

2шт.

21

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

2шт.

22

K204545

SHAFT

- spring anchor

1шт.

23

K204563

BLOCK

- thrust, hitch bracket

2шт.

24

K204596

SHIM

PLATE - locking

2шт.

25

K603143

SCREW

BOLT - 1/2 UNC x 1-1/2 inch

4шт.

26

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

27

K603278

SCREW

BOLT - 5/8 UNC x 2 inch

2шт.

28

425-1410

JAM NUT,Jam, 5/8"-11, G5

- lock, 5/8 inch UNC

2шт.

29

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

30

K204556

BRACKET

- hitch, left-hand

1шт.

30

K204555

BRACKET

- hitch, right-hand

1шт.

31

K608703

STUD

- 3/4 UNC/UNF x 4 inch

8шт.

32

K617168

WHEEL NUT

- wheel, 3/4 inch UNF

8шт.
