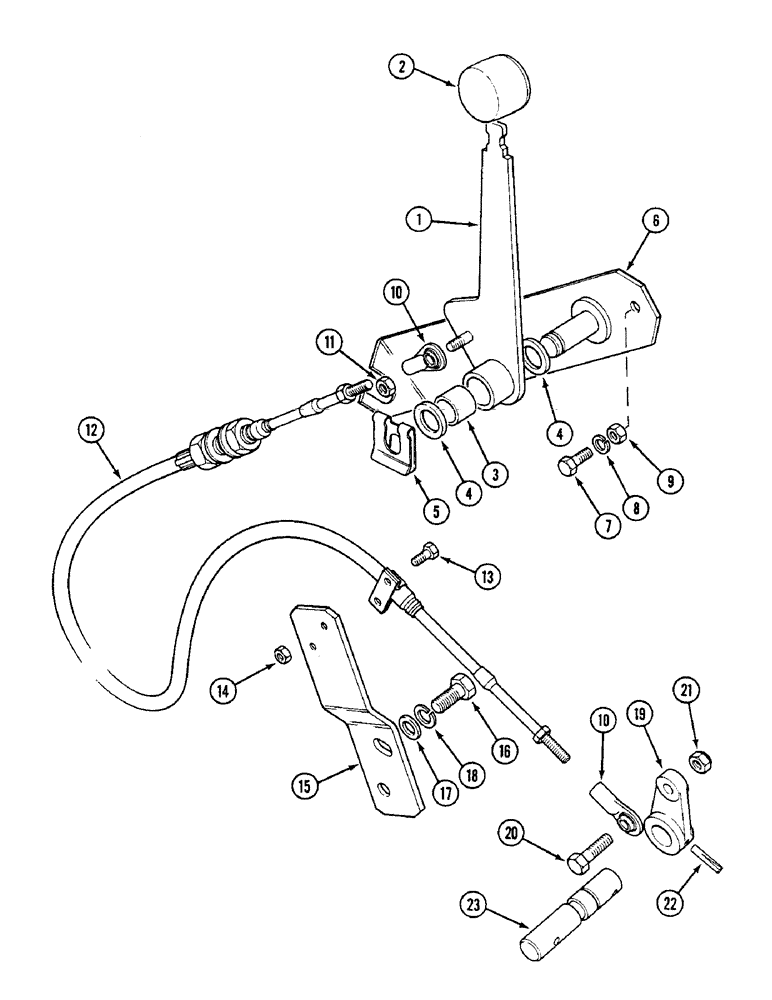

Запчасти Case IH 1594 (8-284) - SENSING CONTROL LEVER, TRACTORS WITH CAB (08) - HYDRAULICS

1

K306137

LEVER

- hand

1шт.

2

K306268

KNOB

- control lever

1шт.

3

K655430

BUSHING

- lever

2шт.

4

K655810

BUSHING

SPACER - shaft

2шт.

5

K659108

CLIP

- retaining

1шт.

6

K306101

BRACKET

- support, hand lever

1шт.

7

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

8

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

9

825-13412

NUT,M12 x 1.25, Cl 8

- cable, M12

2шт.

10

K628327

BALL

JOINT - cable, 1/4 inch UNC

2шт.

11

425-114

NUT,1/4"-28, G5

1шт.

12

K305790

CABLE

ASSEMBLY - control

1шт.

13

K614924

SCREW

- No. 10 UNF x 1/2 inch

2шт.

14

225-14210

NUT,#10-32

2шт.

15

K306339

BRACKET

- cable anchor

1шт.

16

K602849

SCREW

- 5/16 UNC x 7/8 inch

2шт.

17

K626682

WASHER

- lever pin, 5/16 inch (8 mm)

2шт.

18

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

19

K306335

LEVER

- control cable

1шт.

20

K966404

SCREW

BOLT - 1/4 x 1-1/8 inch

1шт.

21

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

22

438-11216

LOCK PIN,3/16" x 1", Slotted

PIN - cotter, 3/16 25 mm

1шт.

23

K204958

SHAFT

- sensing control

1шт.
