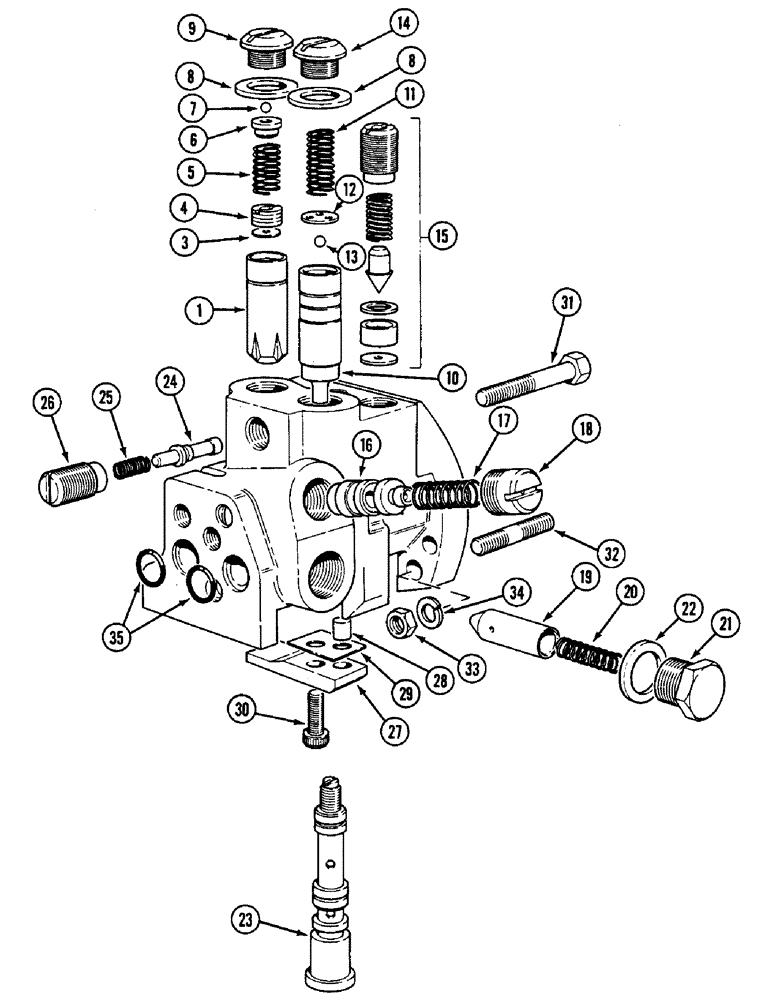

Запчасти Case IH 1594 (8-278) - SELECTMATIC CONTROL VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
K262494
VALVE
ASSEMBLY - control, Includes: Ref. 1 - 5
1шт.
1
NSS
NOT SOLD SEPARAT
PLUNGER - by-pass valve
1шт.
3
K948380
PLATE
RESTRICTOR - oil flow
1шт.
4
K943901
PLUG
- 3/8 inch UNF
1шт.
5
K24832
SPRING
- pressure
1шт.
6
K947977
RETAINER
- spring, Includes: Ref. 7 - 14
1шт.
7
K11548
BALL
- steel, 1/8 inch (3 mm) OD
1шт.
8
K623515
SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk
WASHER - sealing, 5/8 inch (16 mm)
2шт.
9
K948067
PLUG
- 5/8 inch UNF
1шт.
10
NSS
NOT SOLD SEPARAT
PLUNGER - hold valve
1шт.
11
K24832
SPRING
- pressure
1шт.
12
K920136
SHIM
RETAINER - ball
1шт.
13
K11548
BALL
- steel, 1/8 inch (3 mm) OD
1шт.
14
K913242
PLUG
- 5/8 inch UNF
1шт.
15
K961794
VALVE
ASSEMBLY - relief, pre-set, Includes: Ref. 16 - 26
1шт.
16
K202530
SPOOL
- rate of lowering valve
1шт.
17
K625108
SPRING
- rate of lowering valve
1шт.
18
K202531
CAP
PLUG - 3/8 inch BSP
1шт.
19
K916395
PLUNGER
- non-return valve
1шт.
20
K625167
SPRING
- non-return valve
1шт.
21
K916397
PLUG
- 3/4 inch UNF
1шт.
22
K623530
SEAL
WASHER - sealing, 3/4 inch (19 mm)
1шт.
23
NSS
NOT SOLD SEPARAT
VALVE - spool
1шт.
24
NSS
NOT SOLD SEPARAT
PLUNGER - latching valve
1шт.
25
K625180
SPRING
- latching valve
1шт.
26
K913971
PLUG
- 9/16 inch UNF
1шт.
27
K912464
WASHER
PLATE - abutment
1шт.
28
K24853
PIN
DOWEL - locating, 1/4 x 11/16 inch
1шт.
29
K912465
SHIM,.003" Thk
(0.05 mm) .003" Thk
1шт.
29
K912466
SHIM,.007" Thk
(0.18 mm) .007" Thk
1шт.
29
K912467
SHIM,.015" Thk
(0.38 mm) .015" Thk
1шт.
30
K606803
SCREW
- self-locking, 1/4 inch UNC
1шт.
31
413-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
- hex, 5/16 NC x 2-1/4 inch
1шт.
32
K608143
STUD
- 5/16 UNC x 1-1/2 inch
2шт.
33
9635082
NUT,5/16" - 18, Gr 5
- 5/16 inch UNC
2шт.
34
K19481
SPRING WASHER
WASHER - lock, 5/16 inch
3шт.
35
K625408
O-RING
- 7/16 inch (11 mm) ID
2шт.
K962813
GASKET
SEAL KIT - control valve
1шт.
Выбрано товаров: 38
