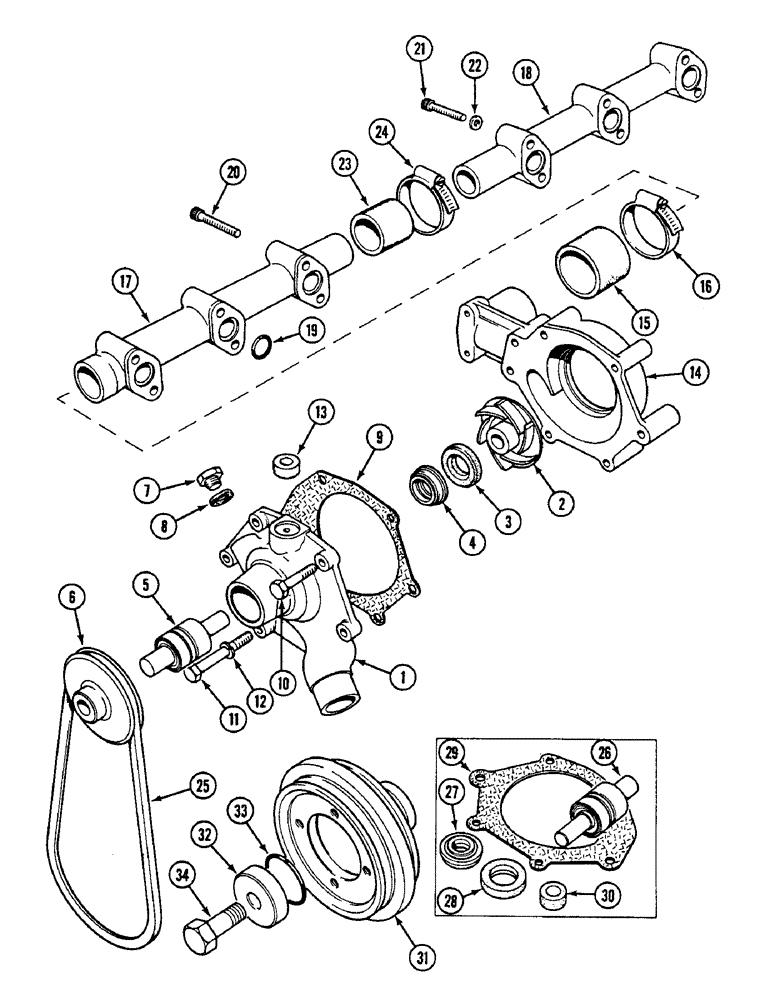

Запчасти Case IH 1594 (2-08) - WATER PUMP (02) - ENGINE
№
Артикул
Название
Примечание
Количество
K200759
PUMP
ASSEMBLY - water, Includes: Ref. 1 - 6
1шт.
1
K200686
HOUSING
BODY - pump
1шт.
2
K200760
IMPELLER
- water
1шт.
3
K200821
RING
- impeller
1шт.
4
K200823
GLAND
SEAL - gland
1шт.
5
K620202
BEARING ASSY
SHAFT AND BEARING - pump
1шт.
6
K200773
PULLEY
- pump
1шт.
7
K623829
PLUG
- 3/8 inch BSP
1шт.
8
K19500
GASKET
WASHER - sealing, 5/8 inch (16 mm)
1шт.
9
K942844
GASKET
- pump to impeller housing
1шт.
10
K600205
BOLT
- 5/16 UNC x 1-1/2 inch
2шт.
11
K600217
BOLT
- 5/16 UNC x 3 inch
4шт.
11
K600213
BOLT
- 5/16 UNC x 2-1/2 inch
1шт.
12
K19481
SPRING WASHER
WASHER - lock, 5/16 inch
7шт.
13
K915330
SEALING RING
SEAL - rubber, pump to cylinder head
1шт.
14
K949111
HOUSING
- impeller
1шт.
15
K626836
HOSE
- 1-3/4 x 1-1/2 inch (44 x 38 mm)
1шт.
16
214-1432
HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm
CLAMP, HOSE, , Adjustable #32, 1.56/2.50 Type F Worm
2шт.
17
K949096
MANIFOLD
- water, front
1шт.
18
K949097
MANIFOLD
- water, rear
1шт.
19
238-5211
O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro
6шт.
20
61-536
HEX SOC SCREW,5/16"-18 x 2 1/4"
BOLT - hex socket head, 5/16 NC x 2-1/4 inch
6шт.
21
K606560
BOLT
BOLT - 5/16 UNC x 3/4 inch, Order 28406R1
6шт.
22
K626924
WASHER
- 5/16 inch
12шт.
23
K626835
HOSE
- 1-3/8 x 1-5/8 inch (35 x 41 mm)
1шт.
24
214-1428
HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm
CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm
2шт.
25
K311714
V-BELT
BELT, Drive
1шт.
NSS
NOT SOLD SEPARAT
REPAIR KIT - water pump, Order components, Includes: Ref. 26 - 30
1шт.
26
K620202
BEARING ASSY
SHAFT AND BEARING - pump
1шт.
27
K200823
GLAND
SEAL - gland
1шт.
28
K200821
RING
- impeller
1шт.
29
K942844
GASKET
- pump mounting
1шт.
30
K915330
SEALING RING
SEAL - rubber, pump to cylinder head
1шт.
31
K949109
PULLEY
- crankshaft
1шт.
32
K200461
WASHER
- 5/8 inch (16 mm) special
1шт.
34
K611281
BOLT,Hex, 5/8" - 18 x 1 3/4", Gr V
BOLT - 5/8 UNF x 1-3/4 inch
1шт.
Выбрано товаров: 37
