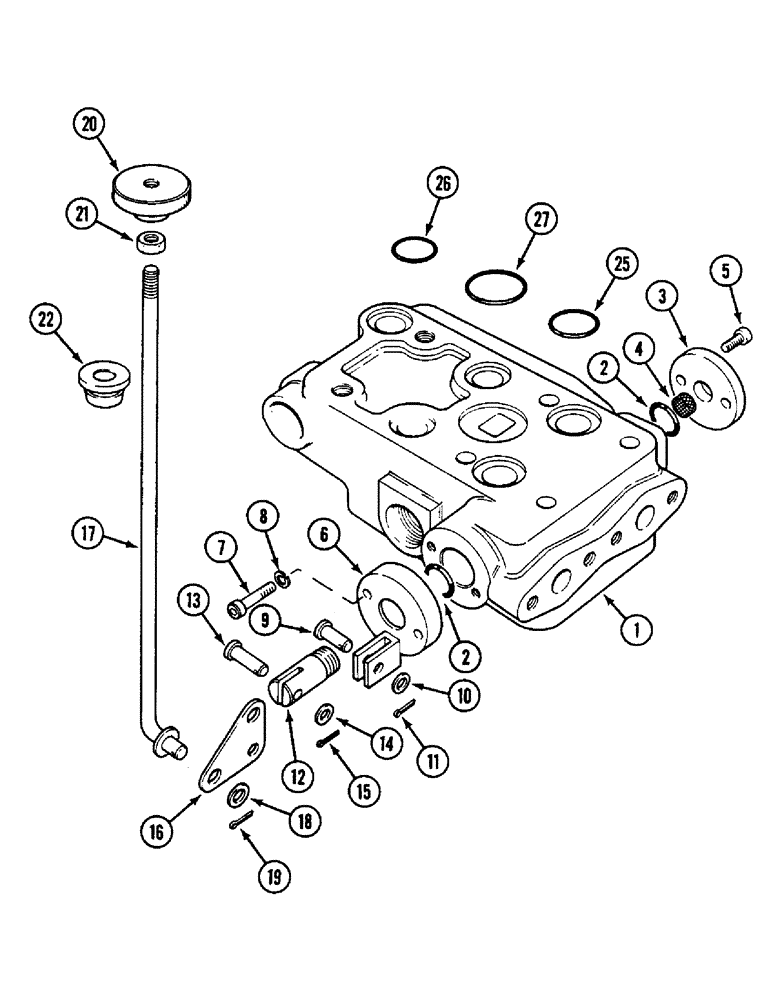

Запчасти Case IH 1594 (8-274) - COMBINING VALVE, TRACTORS WITHOUT CAB (08) - HYDRAULICS

1

K206877

HOUSING

VALVE ASSEMBLY - combining, Includes: Ref. 2 - 27

1шт.

2

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16 inch (14 mm) ID

2шт.

3

K202852

CAP

ASSEMBLY - end, Includes: Ref. 4

1шт.

4

K915393

FOAM

PAD - breather

1шт.

5

K616485

SCREW

- no. 10 UNF x 1/2 inch, 1/4 UNF x 1/2 inch

2шт.

6

K206906

CAP

- end, end

1шт.

7

K616489

SOCKET/RECEPTACLE

SCREW - no. 10 UNF x 1 inch

2шт.

8

K19488

SPRING WASHER

- lock, 3/16 inch

2шт.

9

K625981

PIN

- clevis, 1/4 x 9/16 inch

1шт.

10

K627473

WASHER

- 1/4 inch (6 mm)

1шт.

11

K652181

PIN

- cotter, 1.6 x 10 mm

1шт.

12

K203441

SPOOL

EXTENSION - spool

1шт.

13

K625969

PIN

- clevis, 1/4 x 13/16 inch

1шт.

14

K627473

WASHER

- 1/4 inch (6 mm)

1шт.

15

K652181

PIN

- cotter, 1.6 x 10 mm

1шт.

16

K206717

LEVER

- actuating, ecial

1шт.

17

K306431

ROD

- hand

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

19

K652195

PIN

- cotter, 2 x 12 mm

1шт.

20

K921826

SERRATED NUT

- hand, 5/16 UNF

1шт.

21

425-115

NUT,5/16"-24, G5

- lock, 5/16 inch UNF

1шт.

22

K306665

BUSHING

- plastic

1шт.

25

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

26

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

3шт.

27

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch (30 mm) ID

1шт.
