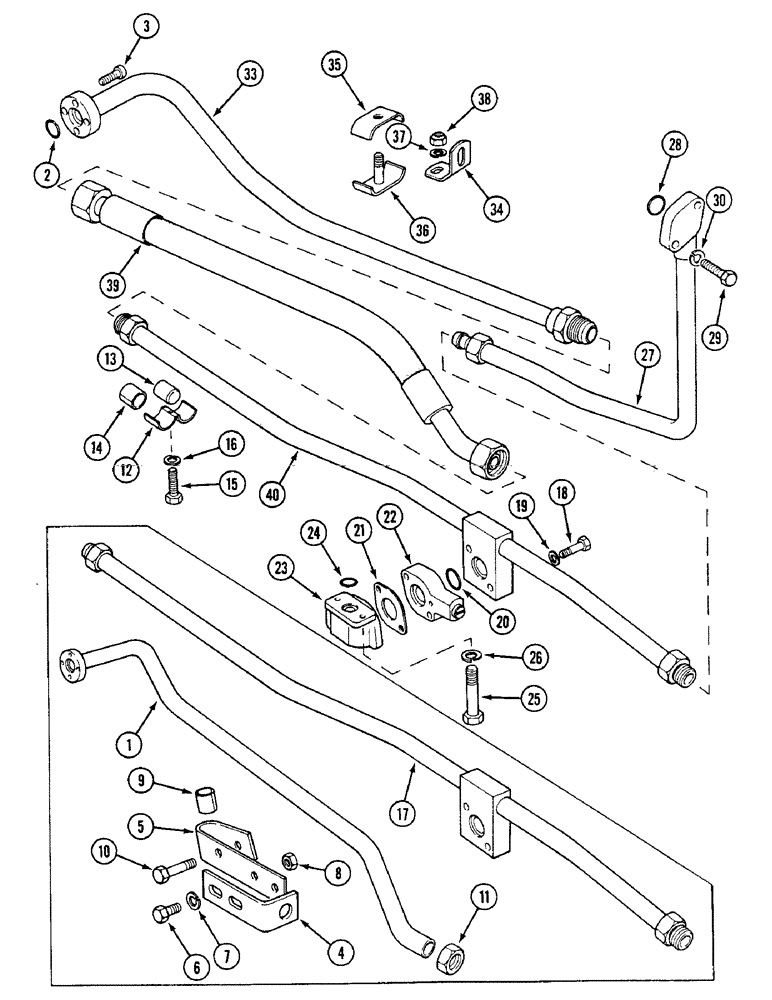

Запчасти Case IH 1594 (8-268) - TUBES FOR SINGLE PUMP AND REAR SECTION OF TANDEM PUMP (08) - HYDRAULICS

1

REF

INSTRUCTION

TUBE - pump outlet (Prior to P.I.N. 11220216), Order Kit components

1шт.

2

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

3

61-32516

HEX SOC SCREW,1/4"-20 x 1"

BOLT - hex socket, 1/4 NC x 1 inch

4шт.

3

K606515

SCREW

BOLT - 1/4 UNC x 2-3/8 inch (Power shift)

4шт.

4

K308509

BRACKET

- main frame (Prior to P.I.N. 11220216)

1шт.

5

K308508

BRACKET

- tube (Prior to P.I.N. 11220216)

1шт.

6

K602803

BOLT

- 5/16 UNC x 3/4 inch

2шт.

7

K626682

WASHER

- lever pin, 5/16 inch (8 mm)

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

3шт.

9

K946125

TUBE

SLEEVE - nylon

1шт.

10

K600205

BOLT

- 5/16 UNC x 1-1/2 inch

1шт.

11

K626099

NUT

- sealing, 7/8 inch BSP (Prior to P.I.N. 11220216)

1шт.

12

K916899

BRACKET

- tube clip

1шт.

13

K919418

SUPPORT

BLOCK - support, single pump

1шт.

14

K200258

BUSHING

SLEEVE - nylon

2шт.

15

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

16

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

17

K207032

PIPE

TUBE - relief valve to union (Prior to P.I.N. 11220216)

1шт.

18

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

19

492-11038

LOCK WASHER,3/8"

2шт.

20

238-5211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

2шт.

21

K928522

SEAL

- valve and tube

1шт.

22

K928525

VALVE

ASSEMBLY - bleed, See Figure 8-272

1шт.

23

K952323

VALVE

- relief, pre-set, Includes: shims

1шт.

K917558

SHIM

- 0.003 mm, adjusting

1шт.

K917559

SHIM

- 0.007 mm, adjusting

1шт.

K917560

SHIM

- 0.015 mm, adjusting

1шт.

24

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

25

K600608

BOLT

- 7/16 UNC x 2-1/4 inch

2шт.

26

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

27

K205558

PIPE

TUBE ASSEMBLY -, Serial Range: union-filter

1шт.

28

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

2шт.

29

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

30

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

REF

INSTRUCTION

KIT - hydraulic tube conversion, Order components, Includes: Ref. 33 - 40

1шт.

33

K207902

PIPE

TUBE - pump outlet (Synchromesh) (P.I.N. 11220216 and after)

1шт.

33

K207712

PIPE,20.25, 3.187" L

TUBE - pump outlet (Power shift) (P.I.N. 11220216 and after)

1шт.

34

K309660

BRACKET

- main frame (P.I.N. 11220216 and after)

1шт.

35

K951982

SHIM

CLAMP - tube (P.I.N. 11220216 and after)

1шт.

36

K210119

PIN

CLAMP - tube, lower (P.I.N. 11220216 and after)

1шт.

37

K19472

WASHER

- flat, 3/8 inch (10 mm)

1шт.

38

232-1416

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

39

K207622

HOSE,0.63" ID x 24.00", SAE 100 R2

TUBE - flexible, 1-1/16 UNF x 24 inch (P.I.N. 11220216 and after)

1шт.

40

K207620

PIPE,25.812, 14.625" L

TUBE - relief valve (P.I.N. 11220216 and after)

1шт.
