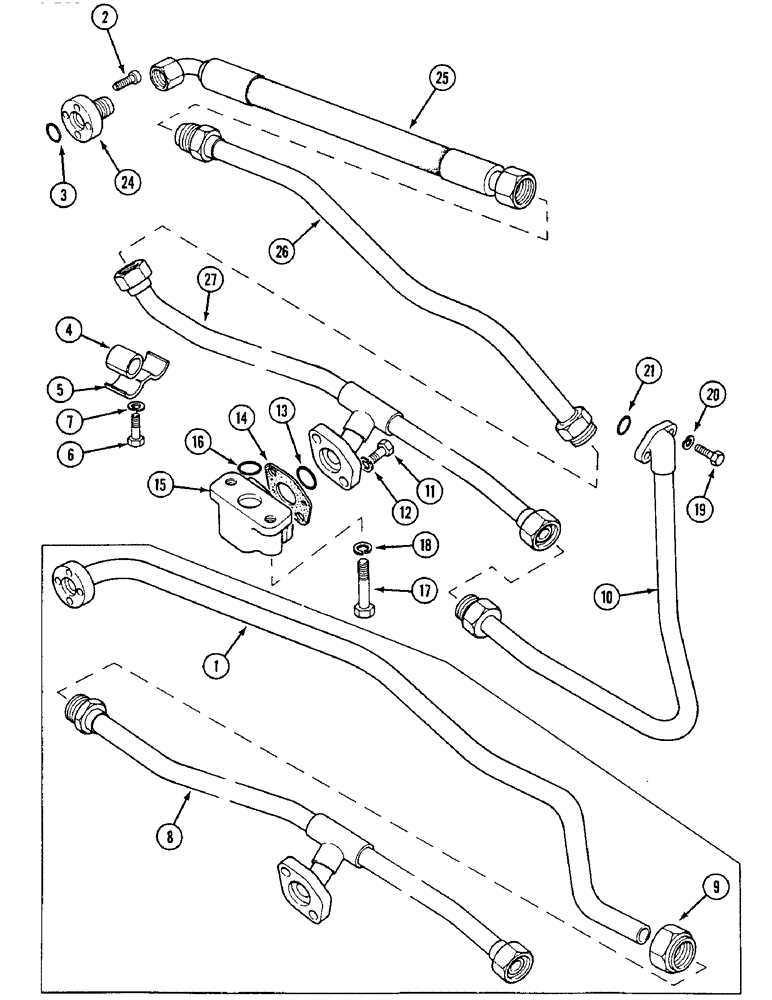

Запчасти Case IH 1594 (8-266) - TUBES FOR FRONT SECTION OF TANDEM PUMP (08) - HYDRAULICS

1

REF

INSTRUCTION

TUBE - pump outlet (Prior to P.I.N. 11220216), Order 24 - 27

1шт.

2

61-32516

HEX SOC SCREW,1/4"-20 x 1"

BOLT - hex socket, 1/4 NC x 1 inch

4шт.

3

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

4

K200258

BUSHING

SLEEVE - nylon

2шт.

5

K916899

BRACKET

- tube clip

2шт.

6

K602806

BOLT

- 5/16 UNC x 1-1/8 inch

1шт.

7

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

8

K207035

PIPE

TUBE - valve to union (Prior to P.I.N. 11220216)

1шт.

9

K626099

NUT

- sealing, 7/8 inch BSP (Prior to P.I.N. 11220216)

1шт.

10

K205554

PIPE

TUBE - union to distribution block

1шт.

11

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

238-5211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

1шт.

14

K928522

SEAL

- valve and tube

1шт.

15

K952323

VALVE

- relief, pre-set

1шт.

16

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

17

K600608

BOLT

- 7/16 UNC x 2-1/4 inch

2шт.

18

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

19

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

20

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

21

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

REF

INSTRUCTION

KIT - hydraulic tube conversion (Prior to P.I.N. 11220216), Includes: Ref. 24 - 27

1шт.

24

K207716

FLANGE

- pump outlet (P.I.N. 11220216 and after)

1шт.

25

K207717

HOSE,0.63" ID x 12.81", SAE 100 R2

TUBE - flexible, 3/4 x 1-1/16 UNF x 13 inch (P.I.N. 11220216 and after)

1шт.

26

K207714

PIPE,31.125" L

TUBE - flexible tube to union (P.I.N. 11220216 and after)

1шт.

27

K205552

PIPE

TUBE - relief valve (P.I.N. 11220216 and after)

1шт.
