Запчасти Case IH 1594 (8-265A) - TANDEM HYDRAULIC PUMP, TRACTORS P.I.N. 11527033 AND AFTER (08) - HYDRAULICS

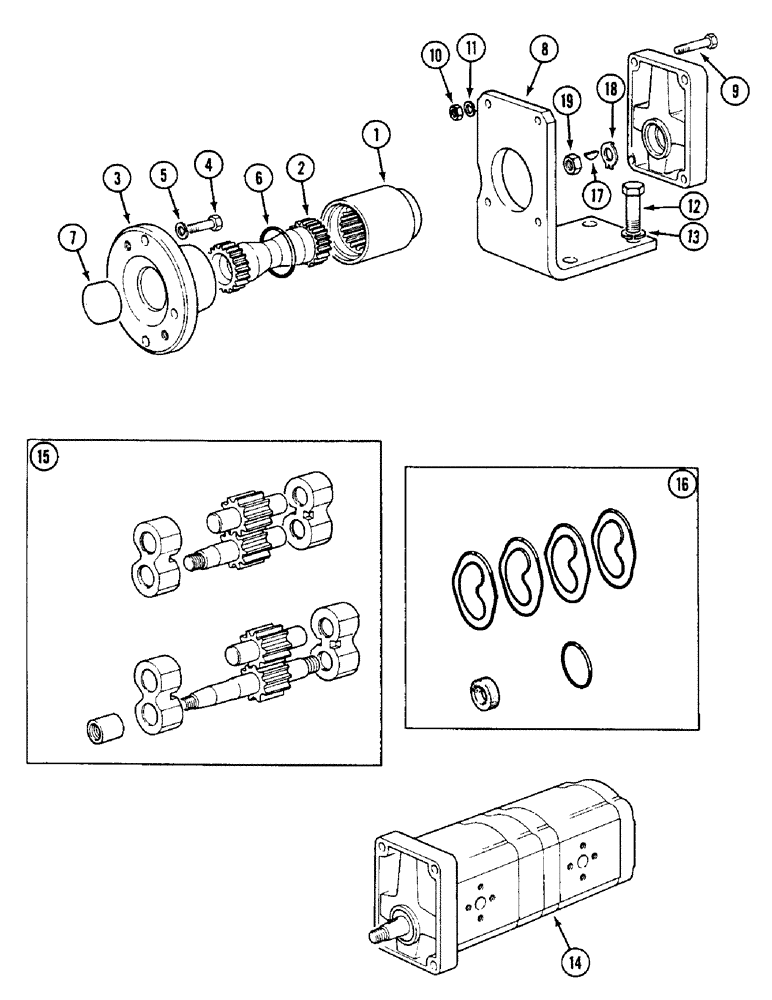

Схема запчастей Case IH 1594 - (8-265A) - TANDEM HYDRAULIC PUMP, TRACTORS P.I.N. 11527033 AND AFTER (08) - HYDRAULICS
11
13
6
15
8
14
1
17
19
16
3
9
5
10
12
4
18
7
2

Артикул

Название

Примечание

Количество

1

K944947

COUPLING, BREAK AWAY

COUPLING - pump

1шт.

2

K200464

SHAFT

DRIVE SHAFT -, Serial Range: engine-pump

1шт.

3

K200465

SPLINED COUPLING

COUPLING - crankshaft pulley, W/O Air Conditioning, See Figure 9-427

1шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

6

K262773

O-RING

- 1-3/8 inch (35 mm) ID

2шт.

7

K627581

BUSHING

SPACER - rubber, 7/16 inch (11 mm) Thick

1шт.

7

K627582

BUSHING

SPACER - rubber, 9/16 inch (14 mm) Thick

1шт.

7

K627583

BUSHING

SPACER - rubber, 5/8 inch (16 mm) Thick

1шт.

8

K949984

SUPPORT

BRACKET - support

1шт.

9

K600006

BOLT

- 1/4 UNC x 1-1/2 inch

2шт.

9

K600007

BOLT

- 1/4 UNC x 5/8 inch

2шт.

10

K607000

NUT

- 1/4 inch UNC

4шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

12

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

- hex, 1/2 NC x 1-3/8 inch

4шт.

13

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

14

K310386

PUMP

ASSEMBLY - tandem (Sundstrand AFGP-18/16L-27934) (Replaces K952465), Includes: Ref. 15 - 19

1шт.

15

K262501

KIT

GEAR SET - front and rear pumps

1шт.

16

K262500

KIT

SEAL KIT - front and rear pumps

1шт.

17

K622386

KEY

- Woodruff

1шт.

18

K626380

WASHER

- tab, gear, 7/16 inch

1шт.

19

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

Выбрано товаров: 22
