Запчасти Case IH 1594 (8-264) - TANDEM HYDRAULIC PUMP, TRACTORS PRIOR TO P.I.N. 11527033 (08) - HYDRAULICS

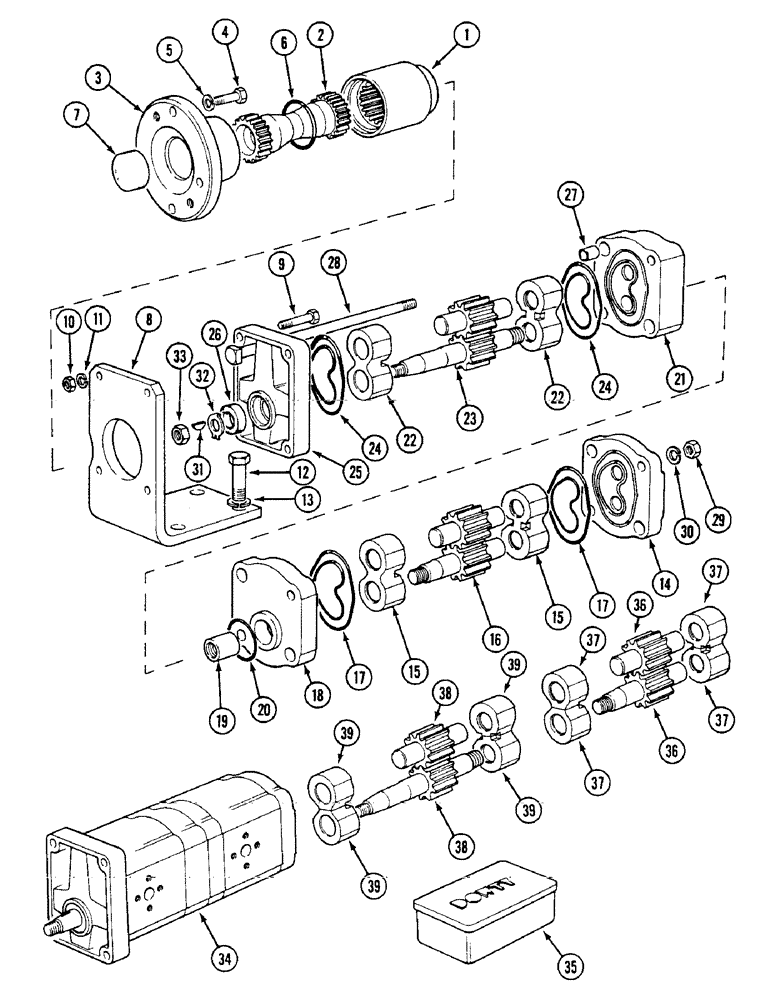

Схема запчастей Case IH 1594 - (8-264) - TANDEM HYDRAULIC PUMP, TRACTORS PRIOR TO P.I.N. 11527033 (08) - HYDRAULICS
3
22
38
39
26
36
10
15
39
36
18
23
37
20
4
37
2
22
16
17
24
39
28
1
27
6
9
21
19
31
30
39
17
35
12
14
8
11
7
5
25
13
33
37
15
34
24
38
29
37
32

Артикул

Название

Примечание

Количество

1

K944947

COUPLING, BREAK AWAY

COUPLING - pump

1шт.

2

K200464

SHAFT

DRIVE SHAFT -, Serial Range: engine-pump

1шт.

3

K200465

SPLINED COUPLING

COUPLING - crankshaft pulley

1шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

6

K262773

O-RING

- 1-3/8 inch

2шт.

7

K627581

BUSHING

SPACER - rubber, 7/16 inch (11 mm) Thick

1шт.

7

K627582

BUSHING

SPACER - rubber, 9/16 inch (14 mm) Thick

1шт.

7

K627583

BUSHING

SPACER - rubber, 5/8 inch (16 mm) Thick

1шт.

8

K949984

SUPPORT

BRACKET - support

1шт.

9

K600006

BOLT

- 1/4 UNC x 1-1/2 inch

2шт.

9

K600007

BOLT

- 1/4 UNC x 5/8 inch

2шт.

10

K607000

NUT

- 1/4 inch UNC

4шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

12

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

- hex, 1/2 NC x 1-3/8 inch

4шт.

13

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

K310386

PUMP

ASSEMBLY - tandem (Replaces K952465), Includes: Ref. 14 - 39

4шт.

14

K260118

COVER

- front (Front pump)

1шт.

15

K260117

GUIDE PIN

BEARING - rotor (Front pump)

2шт.

16

K260120

GEAR

ROTOR - pump (Set) (Front pump)

1шт.

17

K260121

SEAL

KIT - pump (Front pump)

1шт.

18

K260119

FLANGE

PLATE - end

1шт.

19

K260126

COUPLING, BREAK AWAY

COUPLING - muff

1шт.

20

K260129

O-RING

O-RING - end plate

1шт.

21

K260122

COVER

PLATE - end (Rear pump)

1шт.

22

K260117

GUIDE PIN

DOWEL - plate (Rear pump)

2шт.

23

K260124

GEAR

ROTOR - pump (Set) (Rear pump)

1шт.

24

K260125

SEAL

KIT - Plessey Tandem Pump (Rear pump)

1шт.

25

K260123

FLANGE

- rear (Rear pump)

1шт.

26

K962106

OIL SEAL,16.13mm ID x 28.83mm OD x 7.92mm Thk

- oil (Rear pump)

1шт.

27

K964920

PIN

DOWEL - ring

8шт.

28

K260127

BOLT

- special

4шт.

29

K260128

NUT

- pump

4шт.

30

492-11038

LOCK WASHER,3/8"

4шт.

31

K622386

KEY

- Woodruff

1шт.

32

K626380

WASHER

- tab, gear, 7/16 inch

1шт.

33

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

35

K260982

SEAL KIT

SEAL KIT - Dowty tandem pump

1шт.

36

K262033

GEAR

ROTOR - pair (Rear pump)

1шт.

37

K262035

PUMP

BEARING - pair (Front pump)

1шт.

38

K262034

GEAR

ROTOR - pair (Front pump)

1шт.

39

K262036

PUMP

BEARING - pair (Rear pump)

1шт.

Выбрано товаров: 42
