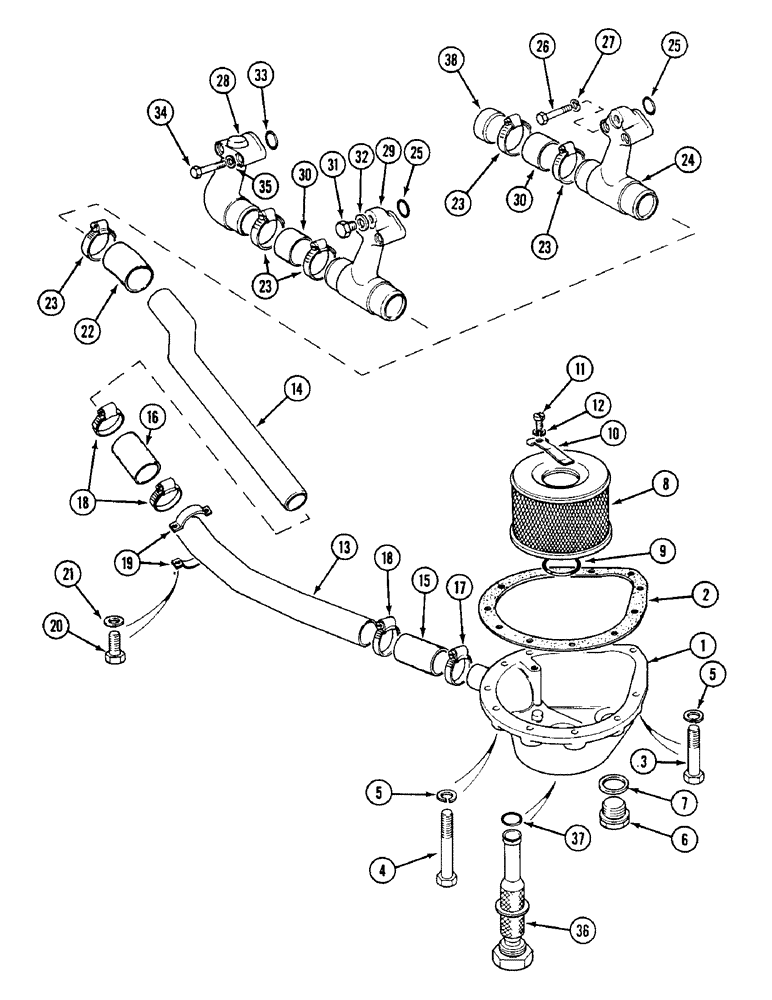

Запчасти Case IH 1594 (8-260) - INLET FILTER AND TUBES (08) - HYDRAULICS

1

K205042

HOUSING

- inlet filter

1шт.

2

K940407

GASKET

- housing

1шт.

3

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

10шт.

4

K600217

BOLT

- 5/16 UNC x 3 inch

1шт.

5

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

11шт.

6

K623830

PLUG

- 1 inch BSP (Synchromesh)

1шт.

7

K17457

WASHER

- sealing, 1-1/4 inch (34 mm) ID

1шт.

8

K946089

STRAINER ELEMENT

FILTER - inlet

1шт.

9

238-5220

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

10

K953845

RETAINER

PLATE - retainer

1шт.

11

K614021

SET SCREW,#10 - 32 x 1/2"

- No 10 x 1/2 inch

1шт.

12

K19488

SPRING WASHER

- lock, 3/16 inch

1шт.

13

K204020

PIPE

TUBE - inlet, rear

1шт.

14

NLS

NO LONGER SERVICED

TUBE - inlet, front

1шт.

15

K924378

HOSE

-, Serial Range: housing-tube

1шт.

16

K917126

HOSE

- elbow, 1-3/4 x 2-3/8 inch (44 x 60 mm)

1шт.

17

K622031

CLAMP

- hose, 2-1/4 inch (57 mm) diameter

1шт.

18

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Adjustable #32, 1.56/2.50 Type F Worm

2шт.

19

K916897

SHIM

BRACKET - tube

2шт.

20

K602803

BOLT

- 5/16 UNC x 3/4 inch

2шт.

21

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

22

K200733

HOSE,1.06" ID, SAE J14 Class SC

Angled 1.06" ID, SAE J14 Class SC

1шт.

23

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Adjustable #32, 1.56/2.50 Type F Worm

2шт.

24

K200462

FITTING

ELBOW - pump inlet (Single pump)

1шт.

25

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

26

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

27

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

28

K950129

FITTING

ELBOW - pump inlet

1шт.

29

K200462

FITTING

ELBOW - pump inlet (Tandem pump)

1шт.

30

K917126

HOSE

- elbow, 1-3/4 x 2-3/8 inch (44 x 60 mm)

1шт.

31

K623829

PLUG

- 3/8 inch BSP

1шт.

32

K626780

WASHER

- sealing, 11/16 inch (18 mm)

1шт.

33

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

2шт.

34

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

4шт.

35

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

36

K205927

FILTER

- oil

1шт.

37

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

38

K203617

PLUG

- inlet, single pump

1шт.
