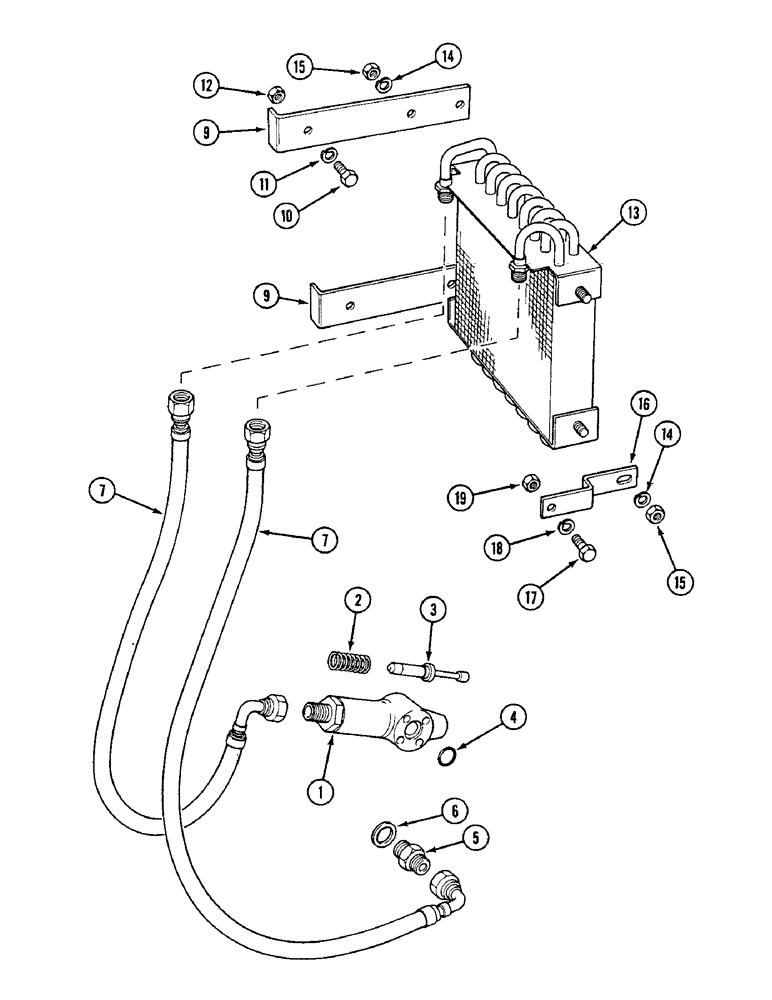

Запчасти Case IH 1594 (8-258) - TRANSMISSION OIL COOLER, POWER SHIFT TRACTORS (08) - HYDRAULICS

1

K207672

VALVE

ASSEMBLY - flow control, Includes: Ref. 2 & 3

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - plunger

1шт.

3

NSS

NOT SOLD SEPARAT

PLUNGER - valve

1шт.

4

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

2шт.

5

K626079

FITTING

UNION - 3/8 inch BSP

1шт.

6

K626780

WASHER

- sealing, 11/16 inch (18 mm)

1шт.

7

K201663

HOSE

ASSEMBLY - cooler, 3/8 BSP x 27 inch (686 mm)

2шт.

9

K306304

SUPPORT

BRACKET - support

2шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

11

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

12

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

13

K306303

COOLER

- oil

1шт.

14

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

16

K306305

STAY

- lower (Without air conditioning)

1шт.

16

K306307

STAY

- lower (With air conditioning)

1шт.

17

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

1шт.

18

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

19

825-1408

NUT,M8, Cl 8

1шт.
