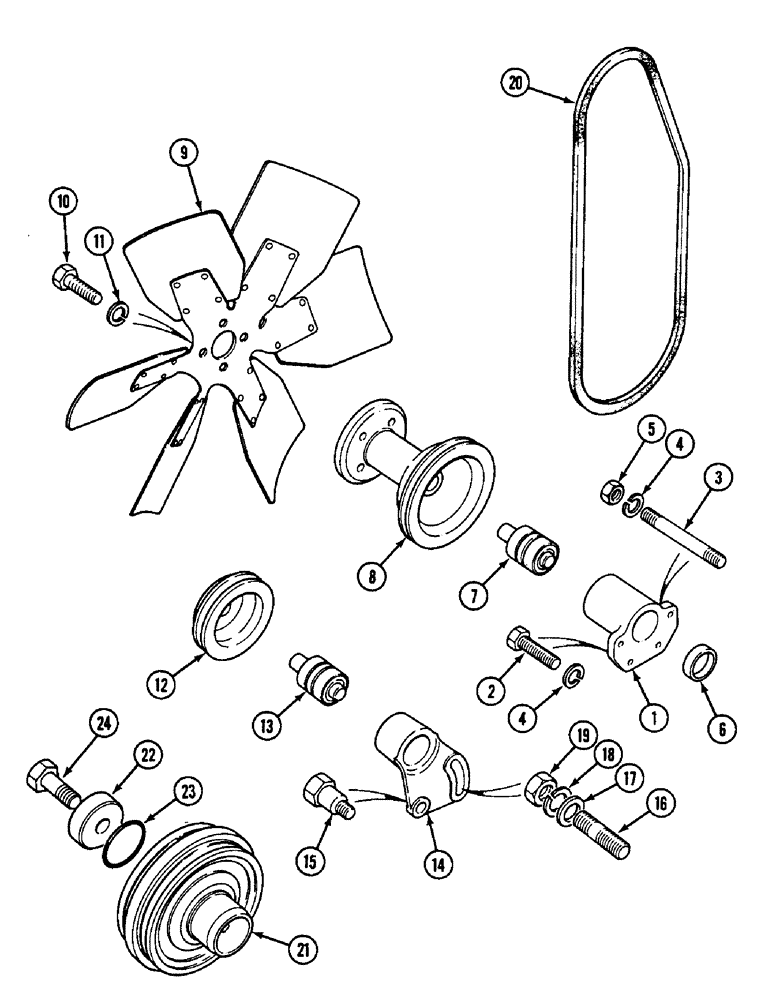

Запчасти Case IH 1594 (2-06) - FAN AND PULLEYS (02) - ENGINE

1

K200819

BEARING HOUSING

HOUSING - bearing, fan

1шт.

2

K600326

SCREW

BOLT - 5/16 UNC x 1 inch

2шт.

3

K608162

STUD

- 5/16 UNC x 4-1/2 inch

2шт.

4

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

2шт.

6

41-1624

PLUG,Cup, 1 1/2", Stainless

- core

1шт.

7

K620203

BALL BEARING,38.1mm OD x 75.75mm L

SHAFT AND BEARING - fan

1шт.

8

K202141

PULLEY

- fan

1шт.

9

K206802

FAN

- 18 inch diameter (457 mm)

1шт.

10

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

K200981

PULLEY

- belt idler

1шт.

13

K620203

BALL BEARING,38.1mm OD x 75.75mm L

SHAFT AND BEARING - fan

1шт.

14

K206212

BRACKET

- support

1шт.

15

K955095

STEP BOLT

BOLT - pivot, 3/8 inch UNC

1шт.

16

K608236

STUD

- 3/8 UNC x 1-1/2 inch

1шт.

17

K19472

WASHER

- flat, 3/8 inch (10 mm)

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

425-106

NUT,3/8"-16, Cl 5

1шт.

20

K311714

V-BELT

BELT, Drive

1шт.

21

K949109

PULLEY

- crankshaft

1шт.

22

K200461

WASHER

- 5/8 inch (16 mm) special

1шт.

23

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

24

K611281

BOLT,Hex, 5/8" - 18 x 1 3/4", Gr V

BOLT - 5/8 UNF x 1-3/4 inch

1шт.
