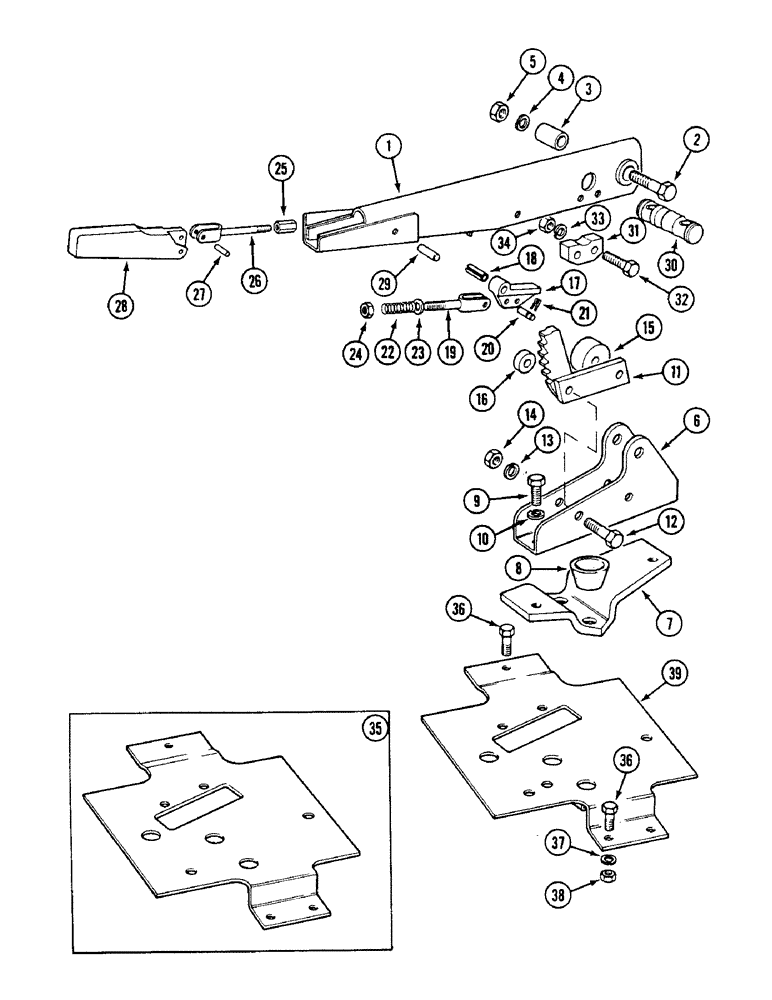

Запчасти Case IH 1594 (7-254) - HAND BRAKE LEVER (07) - BRAKES

1

K955643

LEVER

- hand

1шт.

2

K600526

BOLT

- 3/8 UNC x 1-7/8 inch

1шт.

3

K627052

BUSHING

SPACER - lever pivot

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

425-106

NUT,3/8"-16, Cl 5

1шт.

6

K955244

BRACKET

- hand lever support

1шт.

7

K949506

SHIM

PLATE - retaining (With cab)

1шт.

8

K949507

SEAL

- rubber (With cab)

2шт.

9

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

BOLT - 5/16 UNC x 3/4 inch

2шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm (Without cab)

2шт.

10

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

11

K307481

RATCHET

1шт.

12

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

13

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

15

K627109

BUSHING

SPACER - 1-3/8 inch (35 mm)

1шт.

16

K627110

BUSHING

SPACER - 3/4 inch (19 mm)

1шт.

17

K307484

PAWL

1шт.

18

K623924

SPRING

PIN - spring, 1/4 x 7/8 inch, Order 138-132

1шт.

19

K950033

ROD

- pull

1шт.

20

K949499

PIN

- grooved 3/16 x 1/2 inch

1шт.

21

K621572

RING, SNAP

CLIP - spring

1шт.

22

K625099

SPRING

- return

1шт.

23

K626310

WASHER

- lock 3/16 inch

1шт.

24

225-14210

NUT,#10-32

2шт.

25

K617297

NUT

SLEEVE - adjusting, No., 10 UNF

1шт.

26

K950033

ROD

- pull

1шт.

27

K949498

PIN

- plain

1шт.

28

K950026

LEVER

- release

1шт.

29

138-2067

PIN,3/16" x 1", Coiled

1шт.

30

K949501

BAR

- balance

1шт.

31

K949502

SUPPORT

BLOCK - support

1шт.

32

K966404

SCREW

BOLT - 1/4 x 1-1/8 inch

2шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

34

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

35

K306450

SUPPORT

- hand brake (Without cab) (Prior to P.I.N. 11220605)

1шт.

36

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm (Without cab)

1шт.

36

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm (Without cab)

2шт.

37

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

38

825-1408

NUT,M8, Cl 8

Without cab M8, Cl 8

2шт.

39

K308648

SUPPORT

- hand brake (Without cab) (P.I.N. 11220650 and after)

1шт.
