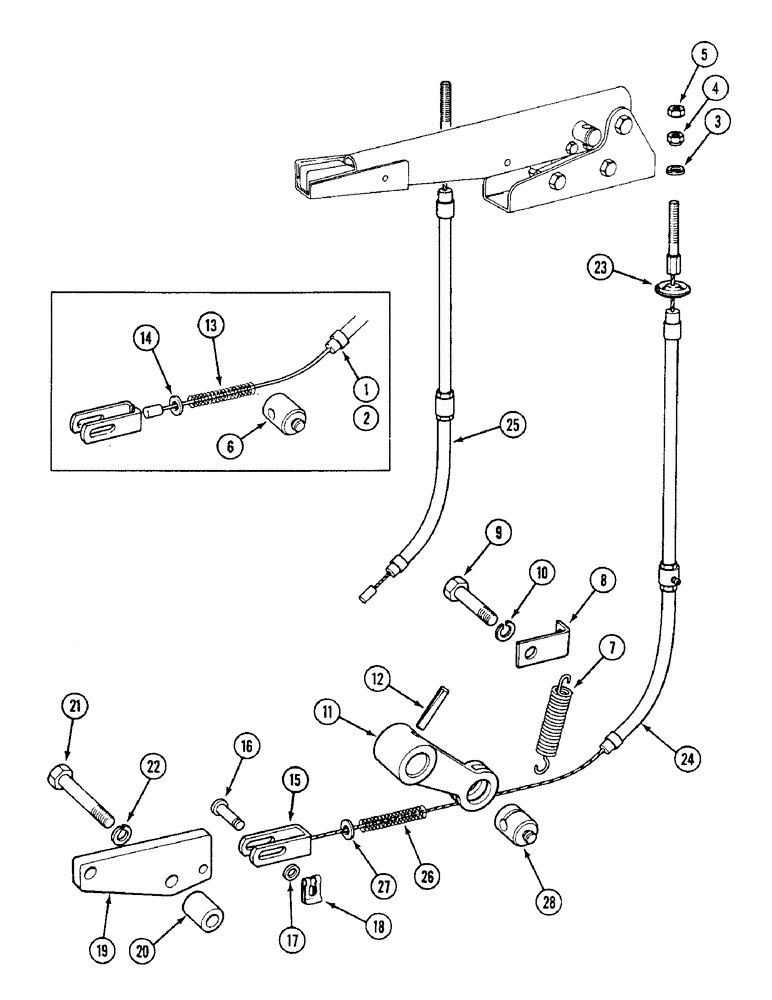

Запчасти Case IH 1594 (7-252) - HAND BRAKE LINKAGE (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
K953948
CABLE
ASSEMBLY - left-hand, With cab (Order K311170)
1шт.
1
K949505
BRAKE
CABLE ASSEMBLY - left-hand, W/O cab (Order K311168)
1шт.
2
K950221
BRAKE
CABLE ASSEMBLY - right-hand, With cab (Order K311169)
1шт.
2
K949504
BRAKE
CABLE ASSEMBLY - right-hand, W/O cab (Order K311167) (53-3/4 inch)
1шт.
3
K949503
WASHER
- spherical, 5/16 inch
2шт.
4
K617285
SPECIAL NUT
- 5/16 inch UNF
2шт.
5
425-155
JAM NUT,Jam, 5/16"-24, G5
- hex, jam, 5/16 inch NF
2шт.
6
K950216
PIN
- brake lever, 1 x 7/8 inch
2шт.
7
K624927
SPRING
- return
2шт.
8
K954736
SPRING
BRACKET - return spring
2шт.
9
K600810
BOLT
- 1/2 UNC x 2-1/2 inch
2шт.
10
K19484
LOCK WASHER
WASHER - lock, 1/2 inch
2шт.
11
K950211
LEVER
- operating
2шт.
13
K625259
SPRING
- cable return
2шт.
14
K626911
WASHER
- 11/32 inch (9 mm)
2шт.
15
K949523
FORK
END - brake cable
2шт.
16
K625930
PIN
- clevis
2шт.
17
K626682
WASHER
- lever pin, 5/16 inch (8 mm)
4шт.
18
K625040
CLIP
- spring
4шт.
19
K950209
SHIM
BRACKET - cable
2шт.
20
K627108
BUSHING
SPACER - bracket, 1-3/16 inch (30 mm)
4шт.
21
K600818
BOLT (SPREADER)
BOLT - 1/2 UNC x 4 inch (With cab), Order 413-824
4шт.
22
K19484
LOCK WASHER
WASHER - lock, 1/2 inch
4шт.
23
K653162
BOX
GROMMET - cables
2шт.
24
K311168
CABLE
- left-hand, standard and high clearance, without cab (44 inch), Includes: Ref. 26 - 27
1шт.
24
K311170
CABLE
- left-hand, left-hand with cab (39-1/2 inch), Includes: Ref. 26 - 27
1шт.
25
K311167
CABLE
- right-hand, standard without cab (55-1/2 inch), Includes: Ref. 26 - 27
1шт.
25
K311169
CABLE
- right-hand, with cab (54.82 inch), Includes: Ref. 26 - 27
1шт.
25
K311858
CABLE
- right-hand, high clearance, without cab (61.8 inch), Includes: Ref. 26 - 27
1шт.
26
NSS
NOT SOLD SEPARAT
SPRING - cable
1шт.
27
NSS
NOT SOLD SEPARAT
WASHER - cable
1шт.
28
K210359
PIN
- brake lever
2шт.
Выбрано товаров: 33
