Запчасти Case IH 1594 (7-250) - BRAKE MECHANISM (07) - BRAKES

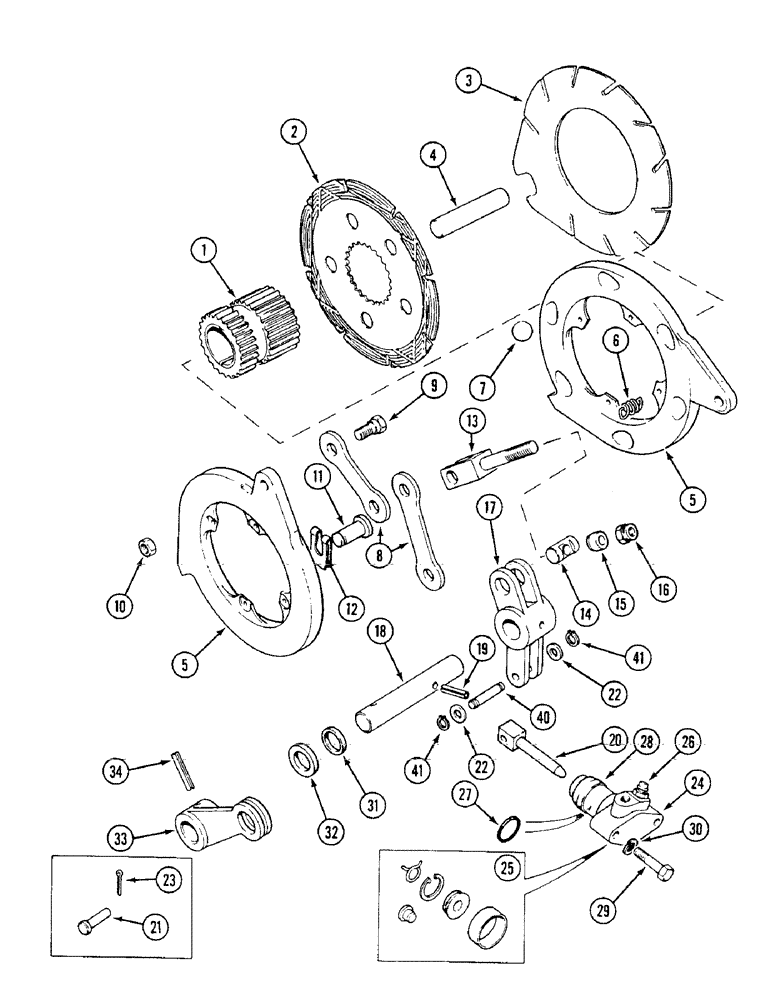

Схема запчастей Case IH 1594 - (7-250) - BRAKE MECHANISM (07) - BRAKES
7
21
26
11
27
8
34
18
10
22
19
3
4
9
33
15
22
5
29
20
25
41
32
6
41
2
40
16
23
31
24
28
30
12
1
14
13
17
5

Артикул

Название

Примечание

Количество

1

K940854

HUB

- brake disc

1шт.

2

K945754

DISC,185.42mm ID x 224.03mm OD x 4.9mm Thk

- rotating (Girling 64321818)

12шт.

3

K945755

DISC

- stationary (Girling 64321506)

8шт.

4

K940860

SHAFT

PIN - stationary discs

2шт.

5

K945753

ACTUATOR

ACTUATING ASSEMBLY - brake (Girling 64321033), Includes: Ref. 6 - 10

2шт.

6

K963644

SPRING

- return

8шт.

7

K963645

BALL

- steel (Girling 64150456)

12шт.

8

K963641

LEVER

- actuating (Pair) (Girling 64320835)

2шт.

9

K963642

BOLT

- special (Girling 64320833)

4шт.

10

K963643

NUT

- special

4шт.

11

K625932

PIN

- pivot, 5/8 x 1-3/4 inch

2шт.

12

K625043

CLIP

- retaining

2шт.

13

K940838

STUD

ROD AND FORK - actuator

2шт.

14

K940840

PIN

- 1/8 x 1-5/8 inch

2шт.

15

K627077

BUSHING

SPACER - pin

2шт.

16

K617375

NUT

- self-locking, 1/2 inch UNF

2шт.

17

K210162

LEVER

- actuator (Replaces K201739)

2шт.

18

K201818

SHAFT

- pivot

2шт.

19

135-101

GROOVED PIN,3/8" x 1 3/4", Type A

PIN, GROOVED, 3/8" x 1 3/4", Type A

2шт.

20

K203380

ROD

- push

2шт.

21

K210326

PIN

- groove, Order also K621842 Circlip

2шт.

22

K626682

WASHER

- lever pin, 5/16 inch (8 mm)

4шт.

23

K11933

PIN

- cotter, 1/8 x 5/8 inch

2шт.

24

K200219

CYLINDER

ASSEMBLY - slave

2шт.

25

K965765

KIT

- seals, mineral oil (Girling Min 18), Includes: Ref. 26 - 28

1шт.

26

K964534

SCREW,M12 x 1

- air removal

1шт.

27

K628876

O-RING,1.443" ID x 0.073" Width

- cylinder to reduction housing

2шт.

28

K965764

SEAL

COVER - rubber (Girling 7360122)

2шт.

29

K600205

BOLT

- 5/16 UNC x 1-1/2 inch

4шт.

30

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

31

K623762

O-RING,0.99" ID x 0.147" Width

O-RING - sealing, 1 inch (25 mm) ID

2шт.

32

K85417

SEAL

- dirt

2шт.

33

K950211

LEVER

- operating

2шт.

34

135-101

GROOVED PIN,3/8" x 1 3/4", Type A

PIN, GROOVED, 3/8" x 1 3/4", Type A

2шт.

40

K210326

PIN

- clevis, 5/16 x 1-5/8 inch

2шт.

41

K621482

RING, SNAP

RING - retaining, 5/16 inch (8 mm) external

4шт.

Выбрано товаров: 36
