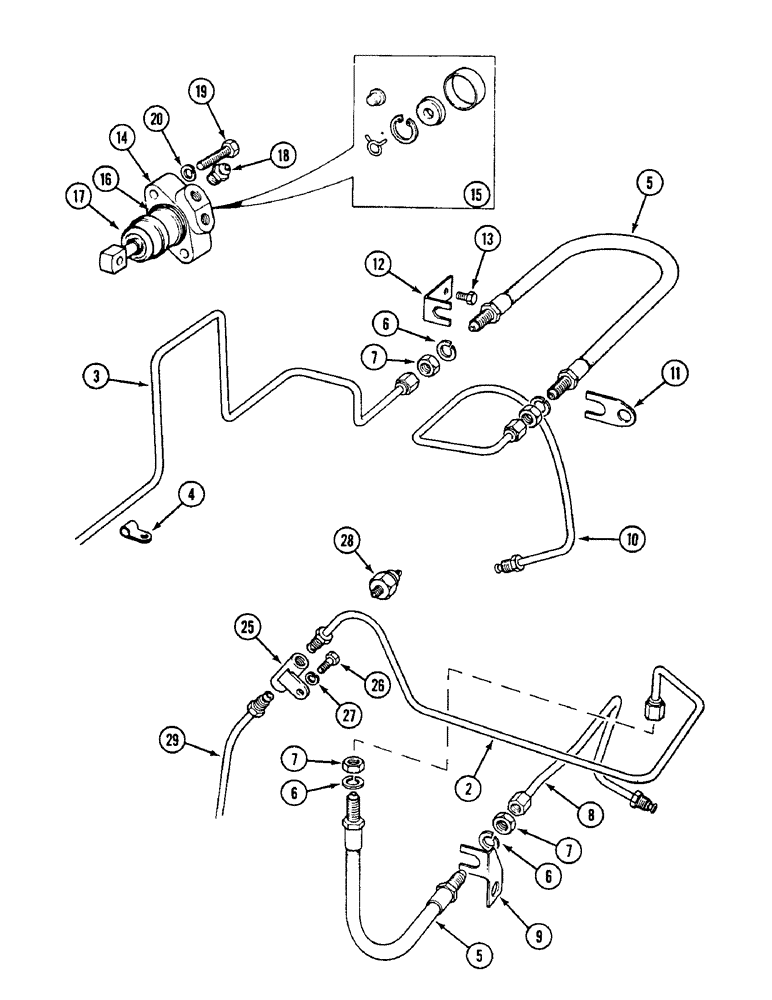

Запчасти Case IH 1594 (7-248) - BRAKE TUBES AND SLAVE CYLINDERS, P.I.N. 11526319 AND AFTER, TRACTORS WITH CAB (07) - BRAKES

2

K310507

PIPE

TUBE - left-hand, three way to flexible hose

1шт.

3

K310506

PIPE

TUBE - union to flexible, right-hand

1шт.

4

K625000

CLIP

- tube

1шт.

5

K957164

HOSE,11.023" L

TUBE ASSEMBLY - flexible, M12 x 280 mm

2шт.

6

K626686

WASHER

- flat, 1/2 inch (13 mm)

2шт.

7

K652100

LOCK NUT

- lock, M12

2шт.

8

K301279

PIPE

TUBE ASSEMBLY - flexible hose to left-hand slave cylinder

1шт.

9

K301428

CLIP,ELECTRICAL

CLIP - left-hand flexible

1шт.

10

K302097

PIPE

TUBE ASSEMBLY - flexible hose to right-hand slave cylinder

1шт.

11

K302119

BRAKE

CLIP - hose

1шт.

12

K302911

BRACKET

CLIP - right-hand flexible

1шт.

13

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 12 mm

2шт.

14

K200219

CYLINDER

ASSEMBLY - slave, mineral oil, Includes: Ref. 15 - 18 and fluid

2шт.

15

K965765

KIT

- seals, mineral oil (Girling Min 18)

1шт.

16

K628876

O-RING,1.443" ID x 0.073" Width

- cylinder to reduction housing

1шт.

17

K965764

SEAL

COVER - rubber (Girling 64275107)

1шт.

18

K964534

SCREW,M12 x 1

- air removal

1шт.

K260781

FLUID

- brake, (Mineral)

1шт.

19

K600205

BOLT

- 5/16 UNC x 1-1/2 inch

4шт.

20

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

25

K310498

FITTING

- three-way

1шт.

26

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

27

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

28

K951976

LIGHT SWITCH

SWITCH - stop lamps

1шт.

29

K310505

PIPE

TUBE - union to three way fitting, left-hand

1шт.
