Запчасти Case IH 1594 (7-246) - BRAKE PEDALS AND MASTER CYLINDERS, TRACTORS WITH CAB, P.I.N. 11526319 AND AFTER (07) - BRAKES

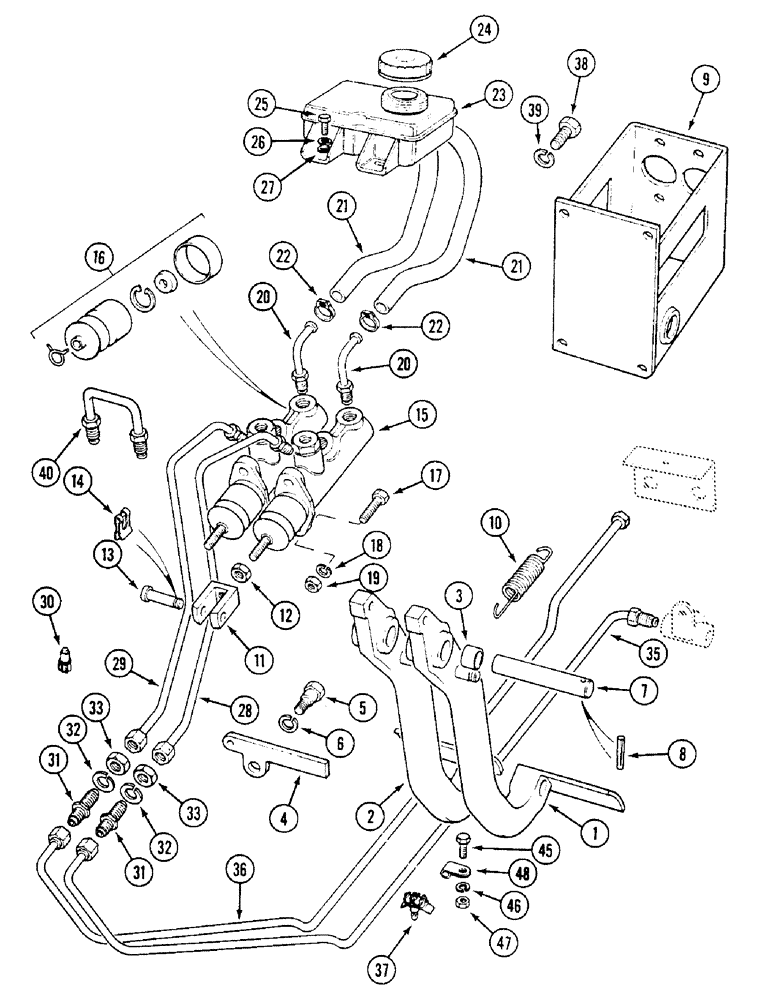

Схема запчастей Case IH 1594 - (7-246) - BRAKE PEDALS AND MASTER CYLINDERS, TRACTORS WITH CAB, P.I.N. 11526319 AND AFTER (07) - BRAKES
5
3
20
32
27
26
33
18
37
16
9
21
32
14
6
13
31
8
29
20
7
17
25
30
47
15
35
38
31
45
48
23
19
2
28
1
39
24
21
33
22
12
4
36
11
22
40
46
10

Артикул

Название

Примечание

Количество

1

K307849

PEDAL

- brake, left-hand, Includes: Ref. 3

1шт.

2

K307850

PEDAL

- brake, right-hand, Includes: Ref. 3

1шт.

3

K655525

BUSHING

- pedal

2шт.

4

K948974

LATCH

LOCK - pedals

1шт.

5

K600500

SCREW

BOLT - special

1шт.

6

K626700

WASHER

- lock

1шт.

7

K303546

SHAFT

PIN - pivot

1шт.

8

K690706

PIN

- groove,, 6 x 30 mm

1шт.

9

K303941

BRACKET

- pedal

1шт.

10

K303540

SPRING

- return

2шт.

11

K622212

FORK

END FORK - 5/16 inch UNF

2шт.

12

425-115

NUT,5/16"-24, G5

- 5/16 inch UNF

2шт.

13

K625930

PIN

- clevis, 5/16 x 1-3/16 inch

2шт.

14

K625040

CLIP

- spring

2шт.

15

K307032

CYLINDER,36mm Stroke

MASTER CYLINDER - (Girling A73067120), Includes: Ref. 16

2шт.

16

K262205

SEAL KIT

KIT - seals, mineral oil

1шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

4шт.

18

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

19

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

20

K302099

PIPE

TUBE - master cylinder inlet

2шт.

21

K203032

HOSE

- reservoir to master cylinder

2шт.

22

K656903

CLIP

- hose

2шт.

23

K301441

RESERVOIR

-

1шт.

24

K301443

CAP

- filler

1шт.

25

K652474

BOLT

- M6 x 12 mm

2шт.

26

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

28

K310501

PIPE,6 mm DIA.

TUBE - left-hand, master cylinder to union

1шт.

29

K310500

PIPE,6 mm DIA.

TUBE - right-hand, master cylinder to union

1шт.

30

K625008

CLIP

- tube

2шт.

31

K301280

FITTING

UNION - M12

2шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

33

K652100

LOCK NUT

- lock, M12

2шт.

35

K310505

PIPE

TUBE - union to three way fitting, left-hand

1шт.

36

K310506

PIPE

TUBE - union to flexible, right-hand

1шт.

37

K625024

CLIP

- brake tube

2шт.

38

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

4шт.

39

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

40

K310499

PIPE

TUBE - master cylinders

1шт.

45

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- 1/4 UNC x 5/8 inch

2шт.

46

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

2шт.

47

K607000

NUT

- 1/4 inch

2шт.

48

K621690

CLIP

- brake tube

2шт.

Выбрано товаров: 43
