Запчасти Case IH 1594 (7-244) - BRAKE TUBES AND SLAVE CYLINDERS, TRACTORS WITH CAB, PRIOR TO P.I.N. 11526319 (07) - BRAKES

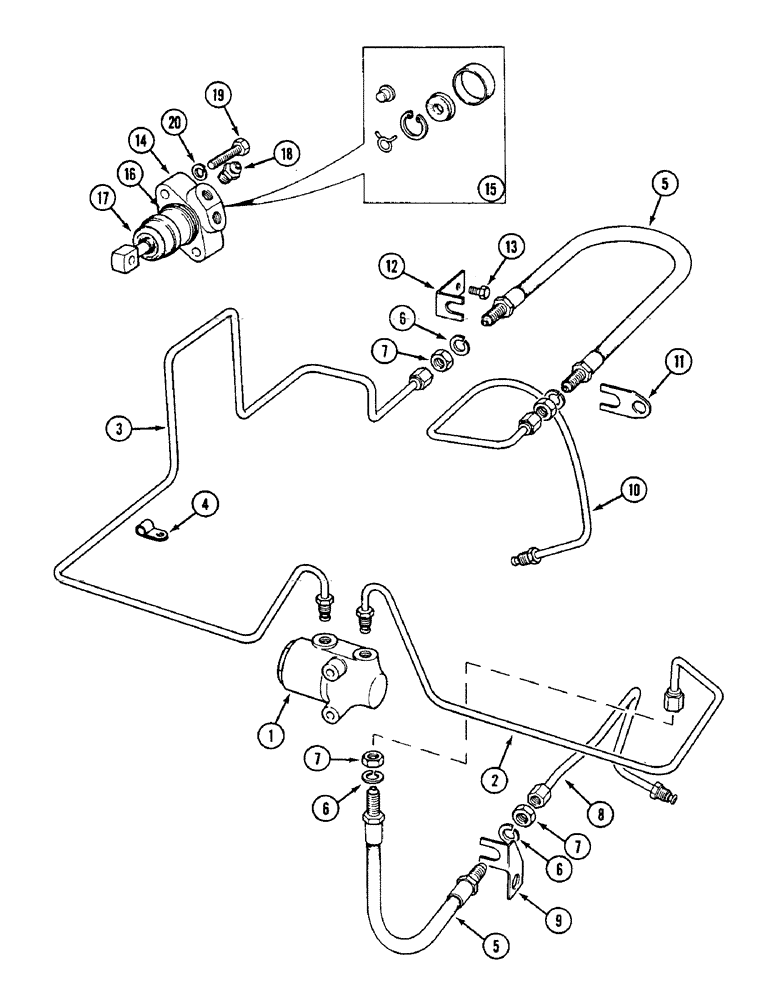

Схема запчастей Case IH 1594 - (7-244) - BRAKE TUBES AND SLAVE CYLINDERS, TRACTORS WITH CAB, PRIOR TO P.I.N. 11526319 (07) - BRAKES
1
17
3
8
7
7
6
15
14
6
18
2
12
19
20
10
5
13
6
9
7
16
4
5
11

Артикул

Название

Примечание

Количество

1

K957107

VALVE

ASSEMBLY - balance

1шт.

2

K305955

BRAKE,6 mm DIA.

TUBE ASSEMBLY - balance valve to flexible hose, left-hand

1шт.

3

K305956

PIPE,6 mm DIA.

TUBE ASSEMBLY - balance valve to flexible hose, right-hand

1шт.

4

K625000

CLIP

- tube

1шт.

5

K957164

HOSE,11.023" L

ASSEMBLY - flexible, M12 x 280 mm

2шт.

6

K626686

WASHER

- lock, 12 mm

2шт.

7

K652100

LOCK NUT

- lock, M12

2шт.

8

K301279

PIPE

TUBE ASSEMBLY - flexible hose to left-hand slave cylinder

1шт.

9

K301428

CLIP,ELECTRICAL

CLIP - hose

1шт.

10

K302097

PIPE

TUBE ASSEMBLY - flexible hose to right-hand slave cylinder

1шт.

11

K302119

BRAKE

CLIP - hose

1шт.

12

K302911

BRACKET

- tube and hose

1шт.

13

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 12 mm

2шт.

14

K200219

CYLINDER

ASSEMBLY - slave, mineral oil (Girling 7307050), Includes: Ref. 15 - 18

2шт.

15

K965765

KIT

SEAL KIT - mineral oil (Girling Min 18)

1шт.

16

K628876

O-RING,1.443" ID x 0.073" Width

- cylinder

1шт.

17

K965764

SEAL

COVER - rubber (Girling 64275107)

1шт.

18

K964534

SCREW,M12 x 1

- M12, air removal

1шт.

19

K600205

BOLT

- 5/16 UNC x 1-1/2 inch

4шт.

20

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

Выбрано товаров: 20
