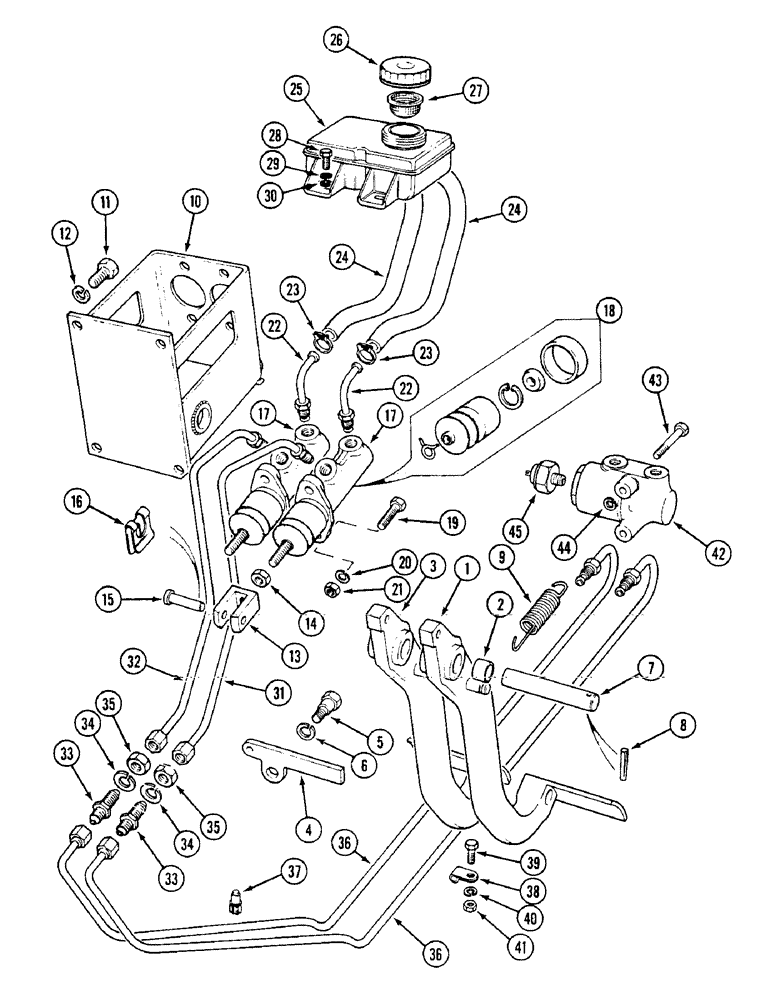

Запчасти Case IH 1594 (7-242) - BRAKE PEDALS AND MASTER CYLINDERS, TRACTORS WITH CAB, PRIOR TO P.I.N. 11526319 (07) - BRAKES

1

K307849

PEDAL

ASSEMBLY - brake, left-hand, Includes: Ref. 2

1шт.

2

K655525

BUSHING

- pedal

4шт.

3

K307850

PEDAL

ASSEMBLY - brake, right-hand, Includes: Ref. 4 - 6

1шт.

4

K948974

LATCH

LOCK - pedals

1шт.

5

K600500

SCREW

BOLT - special

1шт.

6

K626700

WASHER

- lock

1шт.

7

K303546

SHAFT

PIN - pivot

1шт.

8

K690706

PIN

- groove, 6 x 30 mm

1шт.

9

K303540

SPRING

- return

2шт.

10

K303164

MOUNTING PARTS

BRACKET - pedal

1шт.

11

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

4шт.

12

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

13

K622212

FORK

- 5/16 inch UNF

2шт.

14

425-115

NUT,5/16"-24, G5

- 5/16 inch UNF

2шт.

15

K625930

PIN

- clevis, 5/16 x 1-3/16 inch

2шт.

16

K625040

CLIP

- 1/16 x 1/2 inch

2шт.

17

K950544

CYLINDER,36.32mm Stroke

ASSEMBLY - master mineral oil (Girling 73067017)

2шт.

18

K964572

SEAL KIT

SEAL KIT - mineral oil

1шт.

19

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 UNC x 1-1/8 inch

4шт.

20

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

21

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch UNC

4шт.

22

K302099

PIPE

TUBE ASSEMBLY - master cylinder inlet

2шт.

23

L100659

CLIP

- self-adhesive

2шт.

REF#23 COULD ALSO USE METAL SCREW TYPE CLAMP 214-274 OR BOTH

1шт.

24

K203032

HOSE

- reservoir to master cylinder

2шт.

25

K301441

RESERVOIR

ASSEMBLY - brake, Includes: Ref. 26 & 27

1шт.

26

K301443

CAP

- filler

1шт.

27

K261058

SIEVE

SCREEN - reservoir

1шт.

28

K652474

BOLT

- M6 x 12 mm, Serial Range: reservoir-cab

2шт.

29

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

31

K301270

PIPE

TUBE - left-hand, master, Serial Range: cylinder-union

1шт.

32

K301269

PIPE

TUBE - right-hand, master, Serial Range: cylinder-union

1шт.

33

K301280

FITTING

UNION - connecting, M12

2шт.

34

K626686

WASHER

- 12 mm

2шт.

35

K652100

LOCK NUT

- lock, M12

2шт.

36

K306554

PIPE

TUBE ASSEMBLY - union to balance valve

2шт.

37

K625008

CLIP

- tube

2шт.

38

K621690

CLIP

-, Serial Range: tube,-cab

2шт.

39

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

2шт.

40

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

2шт.

41

K607000

NUT

- 1/4 inch UNC

2шт.

42

K957107

VALVE

- brake balance (Girling 73067064)

1шт.

43

K650635

BOLT

- M6 x 55 mm

2шт.

44

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

45

K951976

LIGHT SWITCH

SWITCH - stop lamps

1шт.
