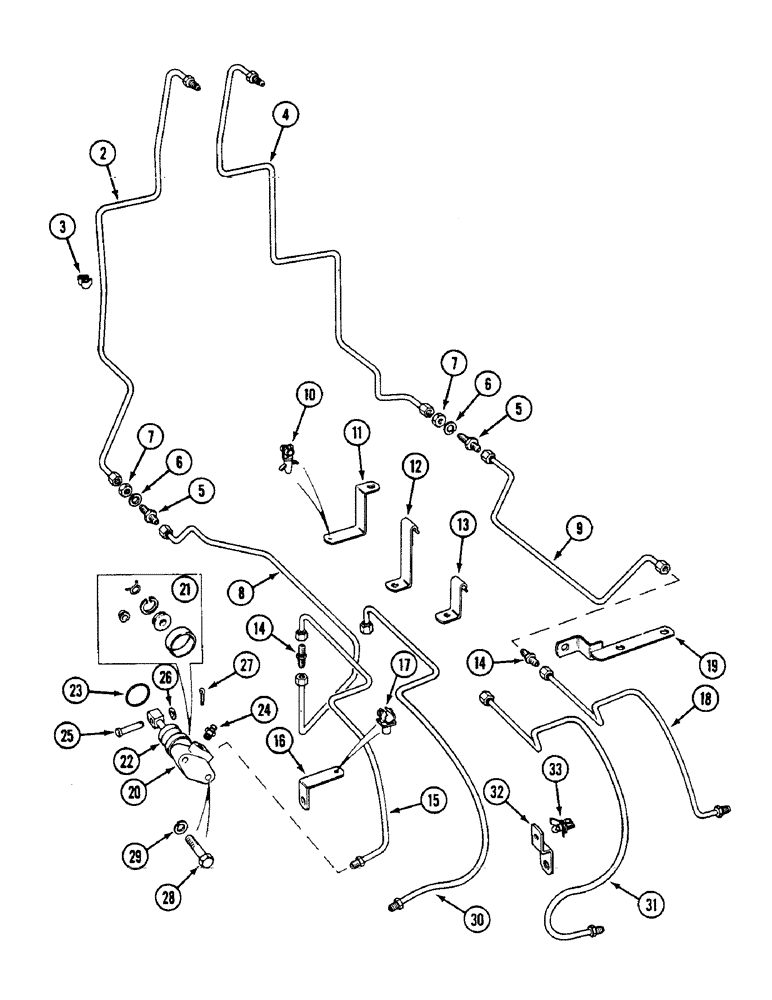

Запчасти Case IH 1594 (7-240) - BRAKE TUBES AND SLAVE CYLINDERS, TRACTORS WITHOUT CAB, P.I.N. 11526319 AND AFTER (07) - BRAKES
№
Артикул
Название
Примечание
Количество
2
K310511
PIPE
TUBE - master cylinder to union, left-hand
1шт.
3
K625014
CLIP
- brake tube
1шт.
4
K310509
PIPE
TUBE - balance valve to union, right-hand
1шт.
5
K301280
FITTING
CONNECTOR - M12
3шт.
6
K651850
SPRING
WASHER - lock, 12 mm
3шт.
7
K652100
LOCK NUT
- lock, M12
3шт.
8
K302185
BRAKE
TUBE - connector to union, left-hand
1шт.
9
K304086
BRAKE
TUBE - connector to union, right-hand
1шт.
10
K625023
CLIP
- plastic
2шт.
11
K304003
WASHER
CLIP - (Power shift)
2шт.
12
K304004
WASHER
CLIP - (Power shift)
2шт.
13
K304001
BRACKET
CLIP - (Synchromesh)
4шт.
14
K626084
FITTING
UNION - M12
1шт.
15
K311609
PIPE
TUBE - union to slave cylinder, left-hand, standard clearance
1шт.
16
K304092
- left-hand tube
1шт.
17
K625008
CLIP
- plastic
1шт.
18
K311608
PIPE,6 mm DIA.
TUBE - union to slave cylinder, right-hand, standard clearance
1шт.
19
K304091
BRACKET
- right-hand tube
1шт.
20
K200219
CYLINDER
SLAVE CYLINDER - (Girling 73067050), Includes: Ref. 21 - 24
2шт.
21
K965765
KIT
- seals, mineral oil (Girling Min 18)
1шт.
22
K965764
SEAL
COVER - rubber (Girling 64275107)
1шт.
23
K628876
O-RING,1.443" ID x 0.073" Width
- cylinder to reduction housing (Girling 64275107)
1шт.
24
K964534
SCREW,M12 x 1
- M12, air removal
1шт.
25
K650152
PIN - clevis, 5/16 x 1-5/8 inch
2шт.
26
K19472
WASHER
- flat, 5/26 inch (8 mm)
2шт.
27
K11933
PIN
- cotter
2шт.
28
K602811
SCREW
BOLT - 5/16 inch UNC
4шт.
29
K19481
SPRING WASHER
WASHER - lock, 5/16 inch
4шт.
30
K311850
TUBE
- union to slave cylinder, left-hand, high clearance (North America Only)
1шт.
31
K311852
TUBE
- union to slave cylinder, right-hand, high clearance (North America Only)
1шт.
32
K304345
BRACKET
- pipe clip, high clearance (North America only)
2шт.
33
K625023
CLIP
- pipe, high clearance (North America only)
2шт.
Выбрано товаров: 32
