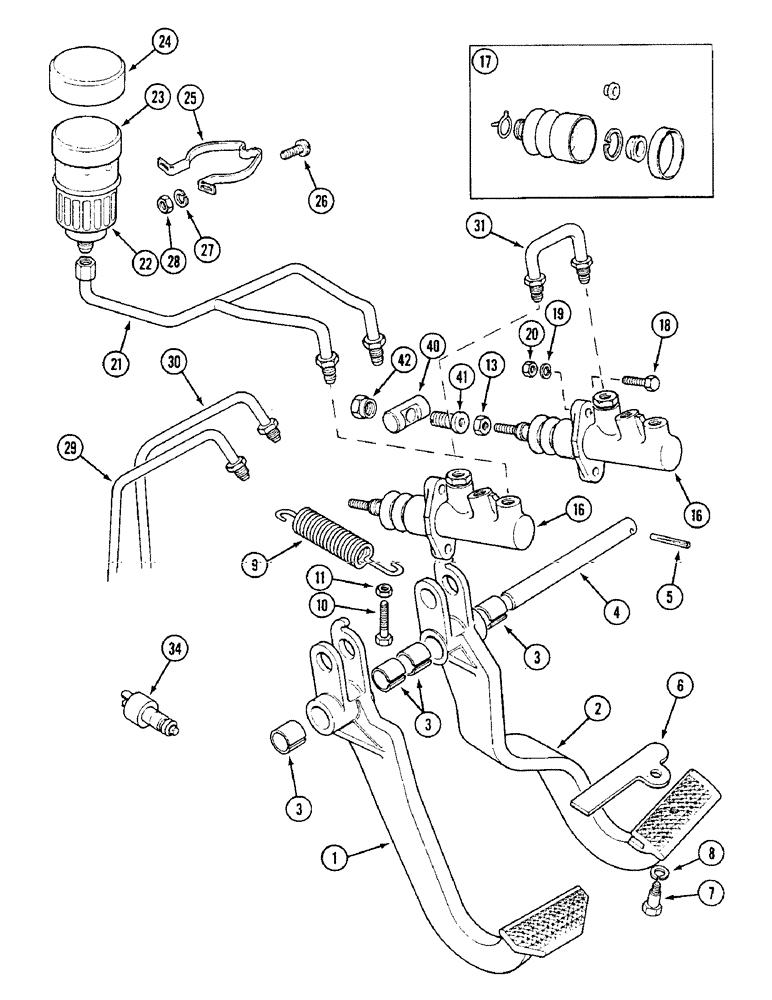

Запчасти Case IH 1594 (7-238) - BRAKE PEDALS AND MASTER CYLINDERS, TRACTORS WITHOUT CAB, P.I.N. 11526319 AND AFTER (07) - BRAKES

1

K262204

BRAKE

PEDAL - brake, left-hand, Includes: Ref. 3

1шт.

2

K262203

BRAKE

PEDAL - brake, right-hand, Includes: Ref. 3

1шт.

3

K628764

BUSHING

- pedals

4шт.

4

K202055

PIN

- pivot

1шт.

5

K19552

GROOVED PIN,1/8" x 1 1/8", Type A

Pin, Grooved, 1/8" x 1 1/8", Type A

1шт.

6

K948974

LATCH

LOCK - pedals

1шт.

7

K600500

SCREW

BOLT - 3/8 inch UNC, special

1шт.

8

K626700

WASHER

- lock, 3/8 inch

1шт.

9

K624971

SPRING

- return

2шт.

10

K650645

BOLT

- M8 x 35 mm

1шт.

11

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

13

425-115

NUT,5/16"-24, G5

- lock, 5/16 inch UNF, Order 425-115

2шт.

16

K307032

CYLINDER,36mm Stroke

MASTER CYLINDER - (Girling 73067120), Includes: Ref. 17

2шт.

17

K262205

SEAL KIT

KIT - seals, mineral oil

2шт.

18

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

2шт.

18

K655645

BOLT

SCREW - M8 x 22 mm, Order 614-8025

2шт.

19

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

20

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Cylinder to cab

2шт.

21

K302630

PIPE

TUBE - reservoir to master cylinders

1шт.

22

K951526

RESERVOIR

Includes: Ref. 23 & 24

1шт.

23

K964488

CAP

- filler

1шт.

24

K964813

COVER

- green

1шт.

25

K200671

SPRING

CLAMP -

1шт.

26

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 UNF x 1/2 inch

1шт.

27

K626340

RING

WASHER - lock, 3/16 inch, Order 492-11010

1шт.

28

225-14210

NUT,#10-32

1шт.

29

K310512

PIPE,6 mm DIA.

TUBE - master cylinder to union, left-hand

1шт.

30

K310510

PIPE

TUBE - master cylinder, to union, right-hand

1шт.

31

K310508

BRAKE

TUBE - cylinder compensating ports

1шт.

34

K929737

SWITCH ASSY

SWITCH - stop lamps (Lucas 30874A)

1шт.

40

K304513

PIN

- pivot

2шт.

41

K304512

NUT

SCREW - adjusting, special

2шт.

42

K651561

NUT

- adjusting, special

2шт.
