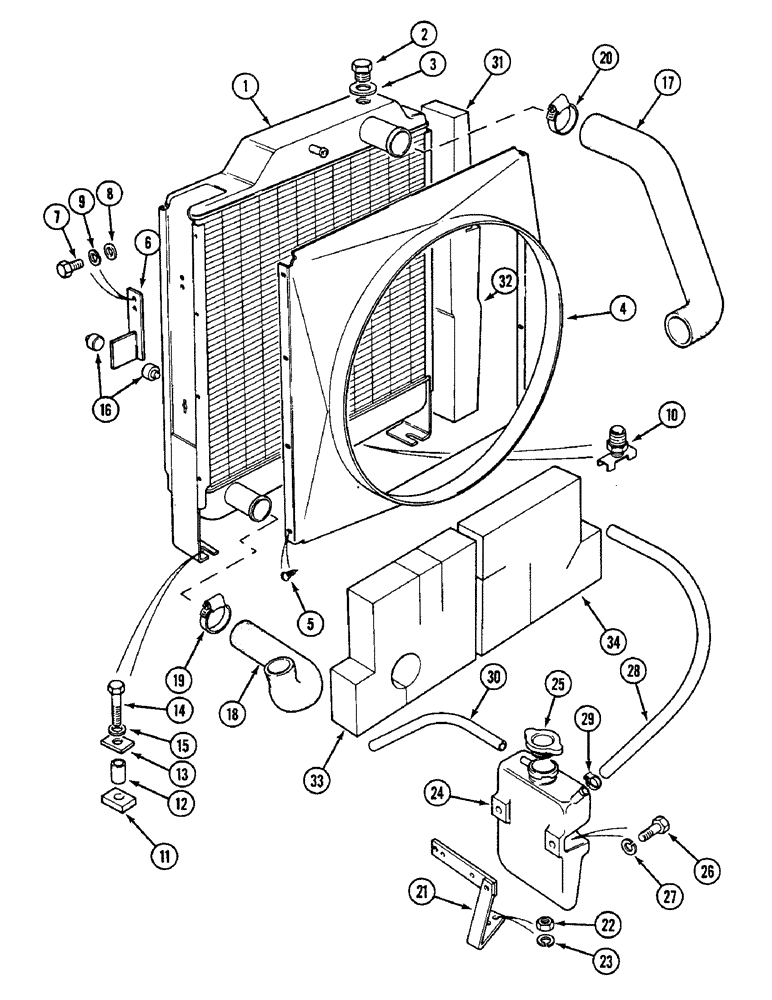

Запчасти Case IH 1594 (2-04) - RADIATOR AND TUBES (02) - ENGINE

1

K306657

RADIATOR

ASSEMBLY - engine Standard)

1шт.

K307486

RADIATOR

ASSEMBLY - engine (Tropical air conditioning)

1шт.

1

K307487

RADIATOR

- engine

1шт.

2

K262787

PLUG

- filler, radiator

1шт.

3

K965726

WASHER

- filler plug

1шт.

4

K306682

GUARD

SHROUD - radiator

1шт.

5

K624795

SCREW

- No. 10 x 3/8 inch, self tapping, Order 127-1026

8шт.

6

K305579

BRACKET

- radiator upper

2шт.

7

K651225

BOLT

- M6 x 12 mm

4шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

9

K626552

WASHER

- lock, 1/4 inch

4шт.

10

K622060

PLUG, DRAIN

VALVE - drain, 1/4 inch BSP

1шт.

11

K921836

WEDGE

PACKING - mounting

4шт.

12

K203115

TUBE

SPACER - stud

2шт.

13

K304769

BRACKET

PLATE - clamping

2шт.

14

K600406

BOLT

- special, 3/8 UNC x 1-3/4 inch

2шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

K302961

RUBBER

BLOCK - rubber

4шт.

17

K201718

RADIATOR HOSE,2.00" ID x 10.38", SAE J20 R4 Class D1

Inlet 2.00" ID x 10.38", SAE J20 R4 Class D1

1шт.

18

K203619

RADIATOR HOSE,1.50" ID x 9.88", SAE J20 R4 Class D1

Outlet 1.50" ID x 9.88", SAE J20 R4 Class D1

1шт.

19

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

2шт.

20

K622031

CLAMP

- hose, 2-1/4 inch (57 mm) diameter, Order 214-1436

2шт.

21

K306539

BRACKET

- support, tank overflow

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

2шт.

23

K626682

WASHER

- lever pin (8 mm)

2шт.

24

K300647

TANK

- overflow

1шт.

25

E81942

RADIATOR CAP,Vented

CAP - filler

1шт.

26

K602846

SCREW,5/16" - 18 x 5/8", Gr S

BOLT - 5/16 UNC x 5/8 inch

2шт.

27

K626682

WASHER

- lever pin, 5/16 inch

2шт.

28

K206796

HOSE

- overflow, 3/8 x 16-1/2 inch

1шт.

29

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. #08, 0.50/0.91 Type F Worm

2шт.

30

K307491

HOSE

TUBE - plastic, 8 x 1200 mm

1шт.

31

K306751

BAFFLE

- side, upper

2шт.

32

K306752

BAFFLE

- radiator, side, lower

2шт.

33

K308096

BAFFLE

- lower, left-hand

1шт.

34

K308095

BAFFLE

- lower, right-hand

1шт.
