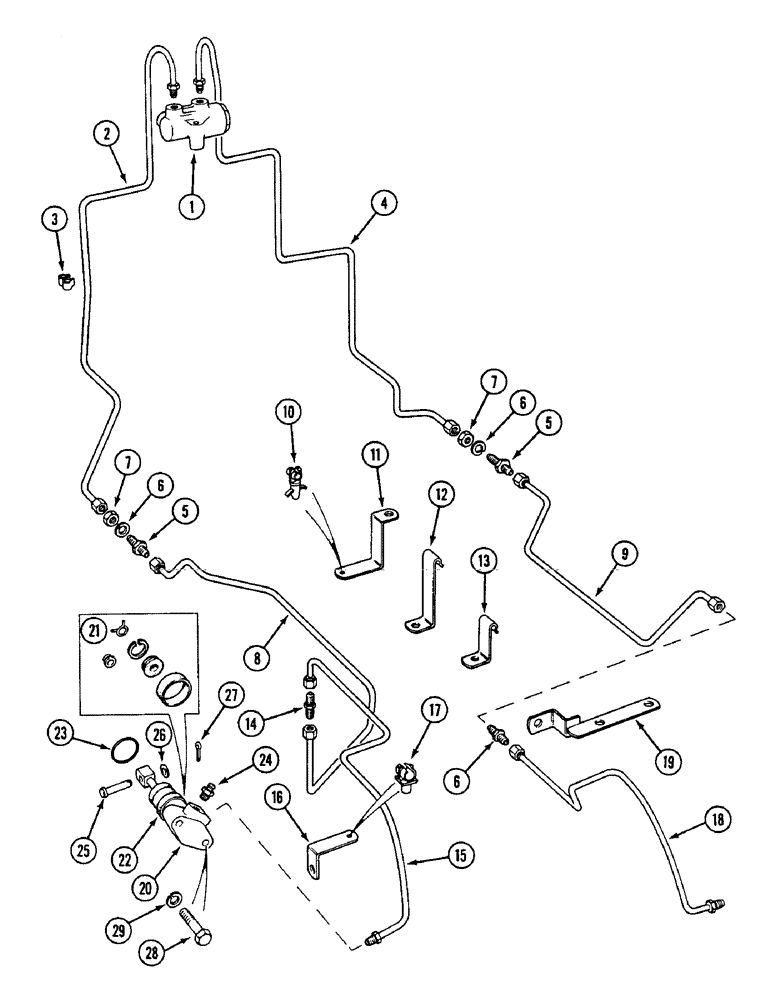

Запчасти Case IH 1594 (7-236) - BRAKE TUBES AND SLAVE CYLINDERS, TRACTORS WITHOUT CAB, PRIOR TO P.I.N. 11526319 (07) - BRAKES

1

K957107

VALVE

BALANCE VALVE

1шт.

2

K302637

PIPE

TUBE - balance valve to connector, left-hand

1шт.

3

K625014

CLIP

- brake tube

1шт.

4

K302636

PIPE,6 mm DIA.

TUBE - balance valve to connector, right-hand

1шт.

5

K301280

FITTING

CONNECTOR - M12

3шт.

6

K651850

SPRING

WASHER - lock, 12 mm

3шт.

7

K652100

LOCK NUT

- lock, M12

3шт.

8

K302185

BRAKE

TUBE - connector to union, left-hand

1шт.

9

K304086

BRAKE

TUBE - connector to union, right-hand

1шт.

10

K625023

CLIP

- plastic

2шт.

11

K304003

WASHER

CLIP - (Power shift)

2шт.

12

K304004

WASHER

CLIP - (Power shift)

2шт.

13

K304001

BRACKET

CLIP - (Synchromesh)

4шт.

14

K626084

FITTING

UNION - M12

1шт.

15

K304088

BRAKE

TUBE - union to slave cylinder, left-hand

1шт.

16

NLS

NO LONGER SERVICED

- left-hand tube

1шт.

17

K625008

CLIP

- plastic

1шт.

18

K304087

BRAKE

TUBE - union to slave cylinder, right-hand

1шт.

19

K304091

BRACKET

- right-hand tube

1шт.

20

K200219

CYLINDER

SLAVE CYLINDER (GIRLING 730670), Includes: Ref. 21 - 24

2шт.

21

K965765

KIT

- seals, mineral oil (Girling Min 18)

1шт.

22

K965764

SEAL

COVER - rubber (Girling 64275107)

1шт.

23

K628876

O-RING,1.443" ID x 0.073" Width

- cylinder to reduction housing (Girling 64275107)

1шт.

24

K964534

SCREW,M12 x 1

- M12 air removal

1шт.

25

K210326

PIN

- groove, Order also K621842 Circlip

2шт.

26

K19472

WASHER

- 5/16 inch (10 mm)

2шт.

27

K11933

PIN

- cotter

2шт.

28

K602811

SCREW

BOLT - 5/16 inch UNC, Order 413-528

4шт.

29

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.
