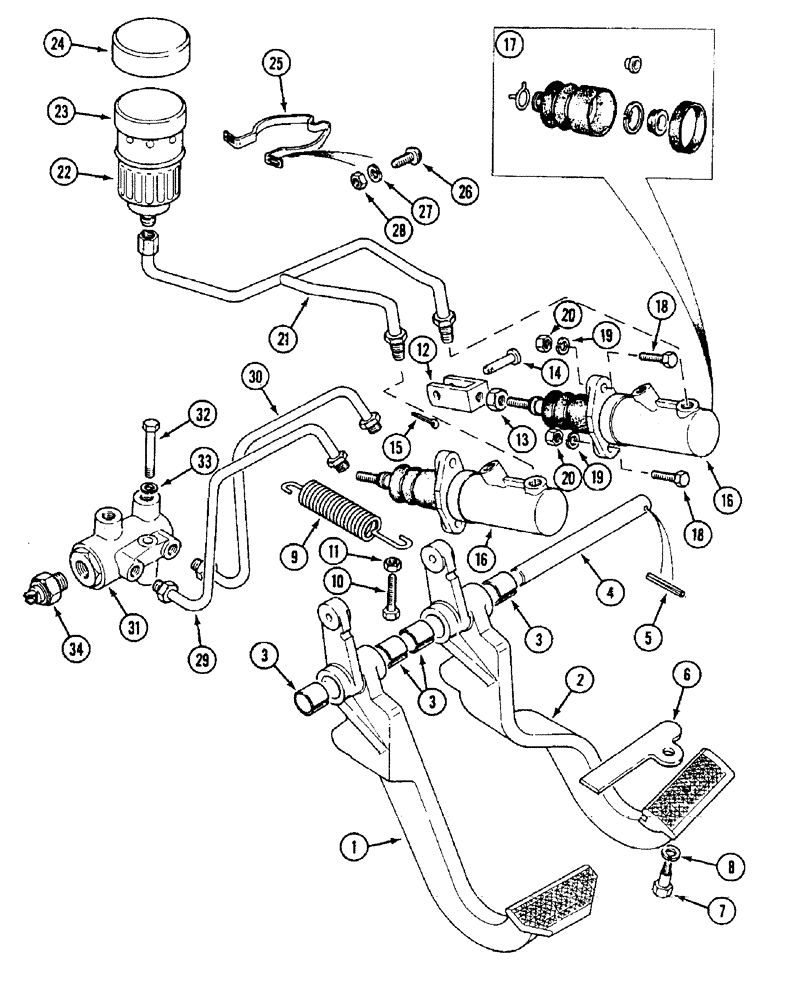

Запчасти Case IH 1594 (7-234) - BRAKE PEDALS AND MASTER CYLINDERS, TRACTORS WITHOUT CAB, PRIOR TO P.I.N. 11526319 (07) - BRAKES

1

K260512

BRAKE

PEDAL - brake, left-hand, Includes: Ref. 3

1шт.

2

K260511

BRAKE

PEDAL - brake, right-hand, Includes: Ref. 3

1шт.

3

K628764

BUSHING

- pedals

4шт.

4

K202055

PIN

- pivot

1шт.

5

K19552

GROOVED PIN,1/8" x 1 1/8", Type A

Pin, Grooved, 1/8" x 1 1/8", Type A

1шт.

6

K948974

LATCH

LOCK - pedals

1шт.

7

K600500

SCREW

BOLT - 3/8 inch UNC, special

1шт.

8

K626700

WASHER

- lock, 3/8 inch

1шт.

9

K624971

SPRING

- return

2шт.

10

K650645

BOLT

- M8 x 35 mm

1шт.

11

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

12

K622205

FORK

END - fork, 5/16 inch UNC

2шт.

13

425-115

NUT,5/16"-24, G5

- lock, 5/16 inch UNC

2шт.

14

K625954

PIN

- clevis, 5/16 x 1-3/16 inch

2шт.

15

K19528

PIN

- cotter, 1/16 x 1/2 inch

2шт.

16

K950544

CYLINDER,36.32mm Stroke

MASTER CYLINDER - (Girling 73067017), Includes: Ref. 17

2шт.

17

K964572

SEAL KIT

- seals, mineral oil

2шт.

18

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

2шт.

18

K655645

BOLT

- M8 x 16 mm

2шт.

19

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

20

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Cylinder to cab

2шт.

21

K302630

PIPE

TUBE - reservoir to master cylinders

1шт.

22

K951526

RESERVOIR

Includes: Ref. 23 & 24

1шт.

23

K964488

CAP

- filler

1шт.

24

K964813

COVER

- green

1шт.

K260781

FLUID

- brake (Mineral)

1шт.

25

K200671

SPRING

CLAMP

1шт.

26

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch

1шт.

27

K626340

RING

WASHER - lock, 3/16 inch

1шт.

28

225-14210

NUT,#10-32

1шт.

29

K304243

BRAKE

TUBE - master cylinder to balance valve, left-hand

1шт.

30

K304242

BRAKE

TUBE - master cylinder to balance valve, right-hand

1шт.

31

K957107

VALVE

- balance (Girling 73067064)

1шт.

32

K650636

BOLT

- M6 x 50 mm, balance, Serial Range: valve-bracket

2шт.

33

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

34

K951976

LIGHT SWITCH

SWITCH - stop lamps (Lucas 30874A)

1шт.
