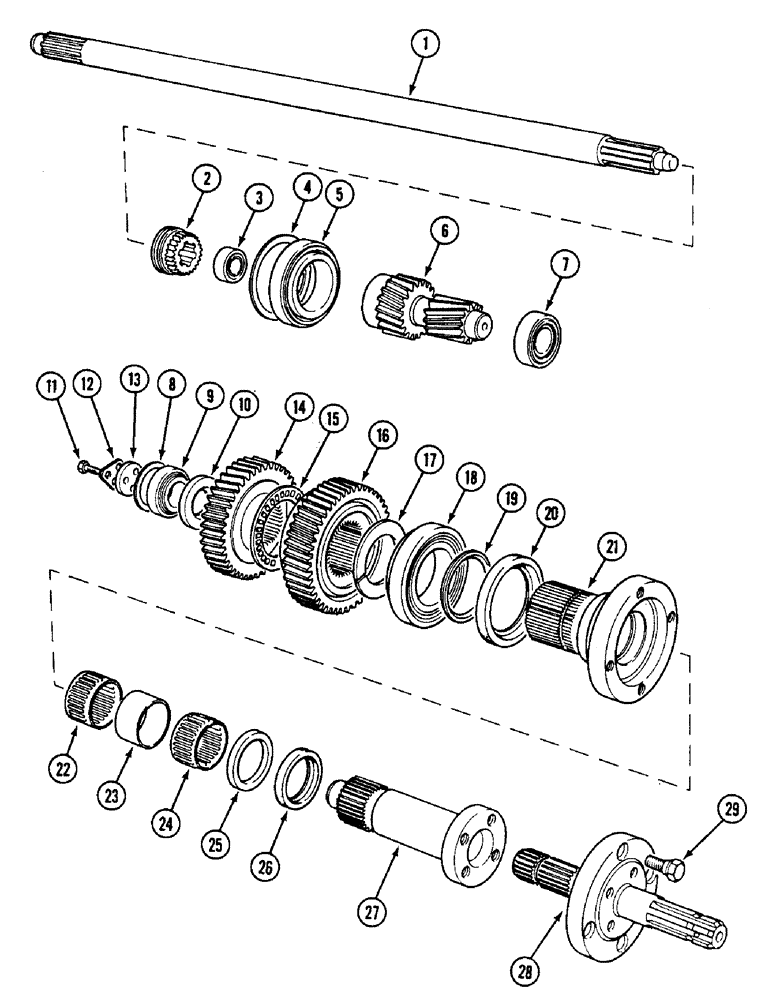

Запчасти Case IH 1594 (6-232) - PTO SHAFTS AND GEARS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
K954296
SHAFT
- cardan, PTO drive (Synchromesh)
1шт.
1
K953610
SHAFT
- cardan, PTO drive (Power shift)
1шт.
2
K952373
GEAR
- sliding, dog clutch
1шт.
3
A43356
BEARING ASSY
BEARING - ball
1шт.
4
K627406
SHIM,.003" Thk
(0.07 mm) .003" Thk
1шт.
4
K627407
SHIM,.005" Thk
(0.12 mm) .005" Thk
1шт.
4
K627408
SHIM,.007" Thk
(0.18 mm) .007" Thk
1шт.
4
K627409
SHIM,.010" Thk
(0.25 mm) .010" Thk
1шт.
5
REF
INSTRUCTION
BEARING - taper roller, Order 40392 and 40393
1шт.
6
K948384
GEAR
SHAFT - input, 21/13 teeth
1шт.
7
REF
INSTRUCTION
BEARING - taper rollerr, Order 618023R91 and 618024R1
1шт.
8
K88921
SHIM,.003" Thk
(0.07 mm) .003" Thk
1шт.
8
K88922
SHIM,.005" Thk
(0.12 mm) .005" Thk
1шт.
8
K88923
SHIM,.007" Thk
(0.18 mm) .007" Thk
1шт.
8
K88924
SHIM,.010" Thk
(0.25 mm) .010" Thk
1шт.
9
REF
INSTRUCTION
BEARING - taper roller, Order 618023R91 and 618024R1
1шт.
10
K948389
WASHER
- special
1шт.
11
K602803
BOLT
- 5/16 UNC x 3/4 inch
3шт.
12
K626430
WASHER
- tab, retainer bolt
1шт.
13
K948390
BEARING
RETAINER - bearing
1шт.
14
K948386
GEAR
- driven, high speed (43 teeth)
1шт.
15
K620147
THRUST BEARING
BEARING - thrust, needle
1шт.
16
K948385
GEAR
- driven, low speed (50 teeth)
1шт.
17
K948392
RING
- split, halves
2шт.
18
K620145
TAPERED BEARING,75mm ID x 130mm OD x 33.25mm W
- taper roller
1шт.
19
K948391
RING
WASHER - special (Early tractors only )
1шт.
20
K623452
SEAL,90mm ID x 110.28mm OD x 11.99mm Thk
- oil, inner, 90 x 110 x 12 mm
1шт.
21
K948387
SHAFT
- output, low speed
1шт.
22
K620146
NEEDLE BEARING
BEARING - needle roller
1шт.
23
K948394
BUSHING
SPACER - bearing
1шт.
24
K620146
NEEDLE BEARING
BEARING - needle roller
1шт.
25
K948395
PLATE
- abutment
1шт.
26
K623464
OIL SEAL
- oil, 55 x 70 x 8 mm
1шт.
27
K948388
SHAFT
- output, high speed
1шт.
28
K948393
SHAFT
PTO SHAFT - reversible, 6/21 splindes
1шт.
29
K948397
BOLT
BOLT - 1/2 inch UNF, special
4шт.
Выбрано товаров: 36
