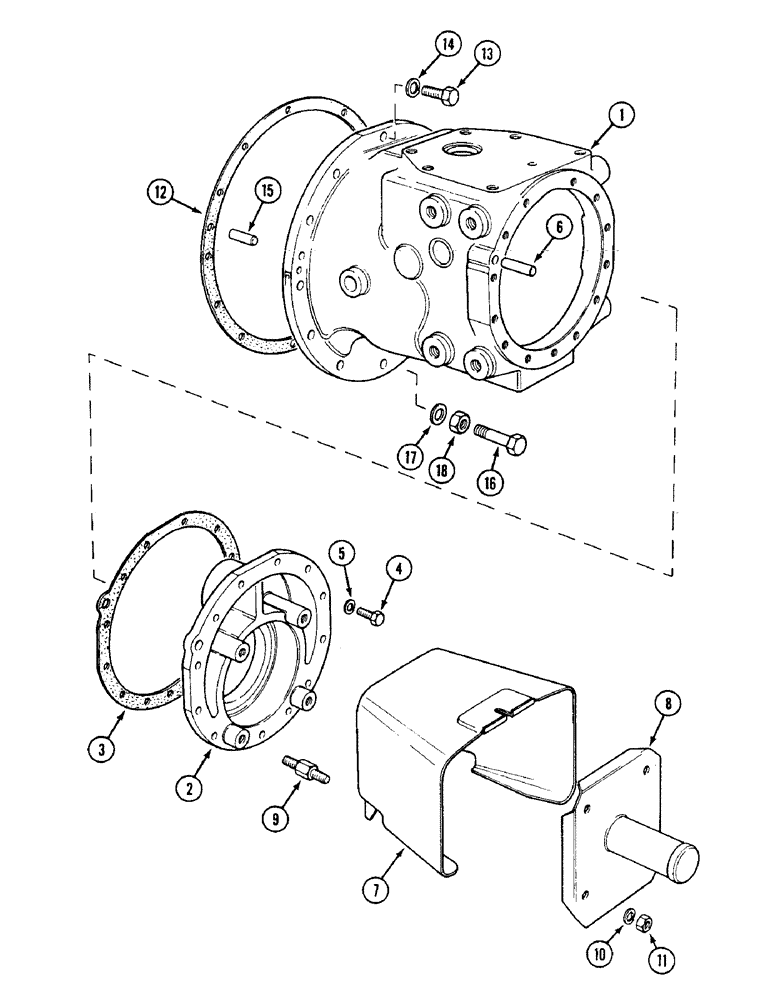

Запчасти Case IH 1594 (6-230) - PTO HOUSING AND COVERS (06) - POWER TRAIN

1

K956127

PTO

HOUSING - PTO

1шт.

2

K207825

SHAFT

COVER - housing

1шт.

3

K948396

GASKET,0.25mm Thk

- cover

1шт.

4

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

13шт.

5

K19481

SPRING WASHER

WASHER - lock

13шт.

6

K30134

PIN

DOWEL - 1/2 x 1-5/16 inch (13 x 33 mm)

1шт.

7

K948409

GUARD

- PTO shaft

1шт.

8

K955938

GUARD

COVER - PTO shaft

1шт.

9

K608325

STUD

- 7/16 UNC x 2-1/2 inch, special

4шт.

10

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

11

280717

NUT,7/16"-14, G5

4шт.

12

K205398

GASKET

- plate to rear axle housing and PTO unit

1шт.

13

K603006

SCREW

BOLT - 7/16 UNC x 1-3/8 inch

11шт.

14

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

15

K61412

PIN

DOWEL - 7/16 x 1-1/4 inch (11 x 32 mm)

1шт.

16

K603044

SCREW

BOLT - 7/16 UNC x 1-3/4 inch

1шт.

17

K626314

WASHER

- 7/16 inch

1шт.

18

K607083

NUT

- lock, 7/16 inch UNC

1шт.
