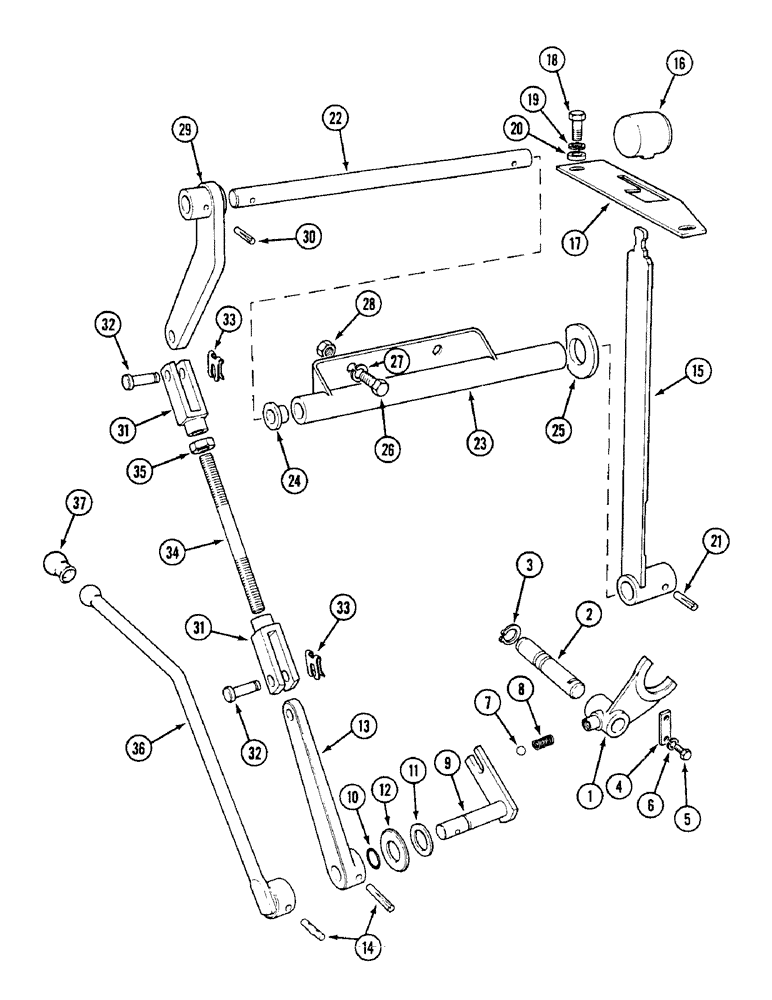

Запчасти Case IH 1594 (6-228) - POWER TAKE-OFF CONTROLS (06) - POWER TRAIN

1

K948398

SHIFTER FORK

FORK - selector, PTO

1шт.

2

K948399

SELECTOR

ROD - selector, PTO

1шт.

3

K11290

RING, SNAP

RING - snap, 3/4 inch (19 mm) External

1шт.

4

K948400

PLATE

- retaining

1шт.

5

K602702

SCREW

BOLT - 1/4 UNC x 5/8 inch

2шт.

6

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 24

1шт.

8

K24831

SPRING

- detent, ball

1шт.

9

K948401

SELECTOR

LEVER AND SHAFT ASSEMBLY - PTO

1шт.

10

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16 inch (14 mm) ID

1шт.

11

K19476

WASHER

- 3/4 inch (19 mm)

1шт.

12

K627461

WASHER

- 3/4 inch special

1шт.

13

K951272

LEVER

- operating

1шт.

14

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, 1/4" x 1 1/2", Coiled

1шт.

15

K306667

LEVER

- engagement

1шт.

16

K307625

RUBBER

KNOB - lever

1шт.

17

K306156

BRACKET

PLATE - engagement lever

1шт.

18

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

19

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

21

438-11216

LOCK PIN,3/16" x 1", Slotted

PIN - cotter, 3/16 25 mm

1шт.

22

K202320

SHAFT

- cross

1шт.

23

K202317

SUPPORT

BRACKET - support

1шт.

24

K628757

BUSHING

- shaft

2шт.

25

K952800

SEAL

- lever

1шт.

26

513-2704

BOLT

- M10 x 20 mm

3шт.

27

892-11010

LOCK WASHER,M10

3шт.

28

825-1410

NUT,M10, Cl 8

3шт.

29

K306140

LEVER

- PTO

1шт.

30

135-55

GROOVED PIN,3/16" x 1 1/4", Type A

Pin, Grooved, (5 x 32 mm) 3/16" x 1 1/4", Type A

1шт.

31

1537272C1

CLEVIS

- adjustable, 10 mm - 1.5

2шт.

32

K658614

PIN

- 10 x 25 mm

2шт.

33

K659106

PLATE, LOCKING

CLIP - retaining

2шт.

34

K306563

ROD

- M10 x 150 mm

1шт.

35

825-1410

NUT,M10, Cl 8

2шт.

36

K202331

LEVER

- engagement (Without cab)

1шт.

37

K307985

COVER

- engagement lever (Without cab)

1шт.
