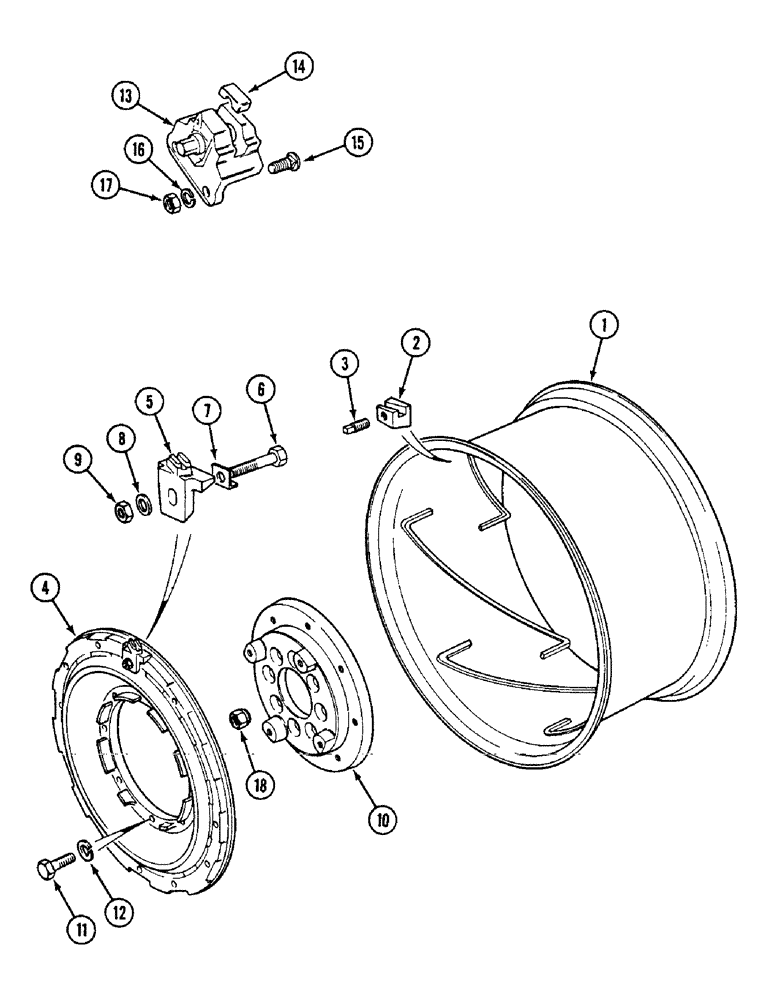

Запчасти Case IH 1594 (6-220) - POWER ADJUSTED REAR WHEELS (06) - POWER TRAIN

K301058

WHEEL

ASSEMBLY - rear, for, 18.4/15-38 tires, Includes: Ref. 1 - 9

2шт.

1

K309573

RIM

- rear wheel, W, 16L x 38 inch (Replaces K301021)

1шт.

2

A9406

STOP

- rim (Replaces K201031)

2шт.

3

K200142

SCREW,Hex, 9/16" x 2 1/8"

BOLT - stop bracket

1шт.

4

K301033

WHEEL

CENTER - rear wheel

1шт.

5

A33171

CLAMP

- double ramp

6шт.

6

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 UNC x 3-1/2 inch

6шт.

7

A34799

LOCK WASHER

- lock, clamp bolt

6шт.

8

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut

6шт.

9

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch UNC

6шт.

K301057

RIM

WHEEL ASSEMBLY - rear, for, 16.9/14-34 tires, Includes: Ref. 1 - 9

2шт.

1

K309572

RIM

- rear wheel, W, 15 x 34 inch (Replaces K302265)

1шт.

2

A9406

STOP

- rim

2шт.

3

K200142

SCREW,Hex, 9/16" x 2 1/8"

BOLT - stop bracket

2шт.

4

A33172

WHEEL

CENTER - wheel

1шт.

5

A33171

CLAMP

- double ramp

6шт.

6

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 UNC x 3-1/2 inch

6шт.

7

A34799

LOCK WASHER

- lock, clamp bolt

6шт.

8

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut

6шт.

9

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch UNC

6шт.

10

K948149

ADAPTER

ADAPTOR - rear wheel

2шт.

11

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

16шт.

12

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

K207778

RIM

WHEEL ASSEMBLY - rear, for, 15.5 x 38 tires

2шт.

A147232

RIM

ASSEMBLY - rear, for, 16.9 x 38 tires, Includes: Ref. 1 - 3

2шт.

1

A45192

WHEEL

RIM - rear, W, 14L x 38

1шт.

2

A41740

STOP

BRACKET - stop, wheel rim

2шт.

3

K200142

SCREW,Hex, 9/16" x 2 1/8"

BOLT - stop bracket

2шт.

4

K207775

WHEEL

CENTER - rear (Used with K207778), Includes: Ref. 13 - 18

1шт.

4

A147234

DISC

WHEEL CENTER - rear (Used with A147232), Includes: Ref. 13 - 18

1шт.

13

K918809

AXLE PIN

BODY - with eccentric pin

6шт.

14

A41741

BLOCK

- eccentric pin

6шт.

15

111-614

CARRIAGE BOLT,Short NK, 5/8"-11 x 1 5/8", G5

COACH BOLT - 5/8 UNC x 1-5/8 inch

12шт.

16

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

17

425-1010

NUT,5/8"-11, G5

12шт.

18

K617169

WHEEL NUT

- special wheel, 3/4 inch UNF

16шт.
