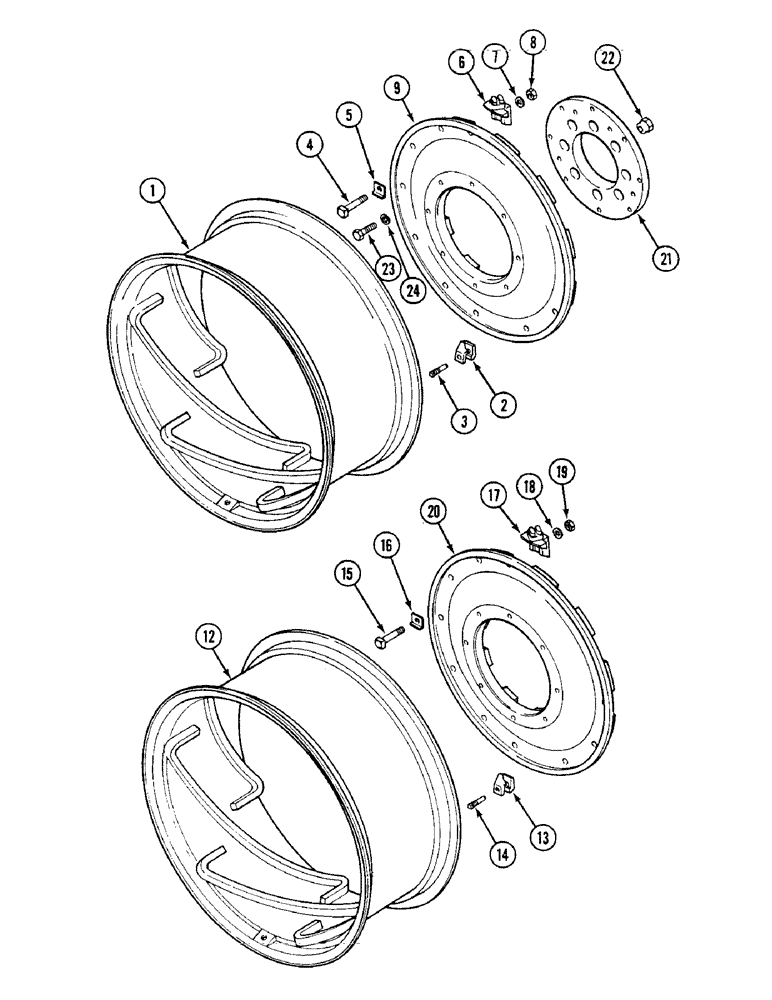

Запчасти Case IH 1594 (6-218) - REAR WHEELS, NORTH AMERICA ONLY (06) - POWER TRAIN

A162373

WHEEL

ASSEMBLY - 18.4 x 34 inch (468 x 864 mm) (Machinery item), Includes: Ref. 1 - 9

2шт.

A166564

WHEEL

ASSEMBLY - 18.4 x 34 inch (Machinery item), Includes: Ref. 1 - 9

2шт.

1

A33170

RIM

- wheel

1шт.

2

A9406

STOP

- rim

2шт.

3

K200142

SCREW,Hex, 9/16" x 2 1/8"

BOLT - stop bracket

2шт.

4

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 NC x 3-1/2 inch

6шт.

5

A34799

LOCK WASHER

- lock, clamp bolt

6шт.

6

A33171

CLAMP

- double ramp

6шт.

7

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut

6шт.

8

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

6шт.

9

A33172

WHEEL

CENTER - wheel

1шт.

A162372

WHEEL

ASSEMBLY - 18.4 x 38 inch (468 x 965 mm) (Machinery item), Includes: Ref. 12 - 19

2шт.

A163259

WHEEL

ASSEMBLY - 16.9 x 38 inch (430 x 965 mm) (Machinery item), Includes: Ref. 12 - 19

2шт.

12

A66197

RIM

- wheel

1шт.

13

A9406

STOP

- rim

4шт.

14

K200142

SCREW,Hex, 9/16" x 2 1/8"

BOLT - stop bracket

4шт.

15

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 NC x 3-1/2 inch

6шт.

16

A34799

LOCK WASHER

- lock, clamp bolt

6шт.

17

A33171

CLAMP

- double ramp

6шт.

18

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut

6шт.

19

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

6шт.

20

A33174

WHEEL

CENTER - wheel

1шт.

21

A948149

ADAPTER - hub

2шт.

22

K617169

WHEEL NUT

- special wheel, 3/4 inch UNF

16шт.

23

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8-11 NC x 2-1/2 inch, grade 8

16шт.

24

192-65

LOCK WASHER,5/8"

5/8"

16шт.
