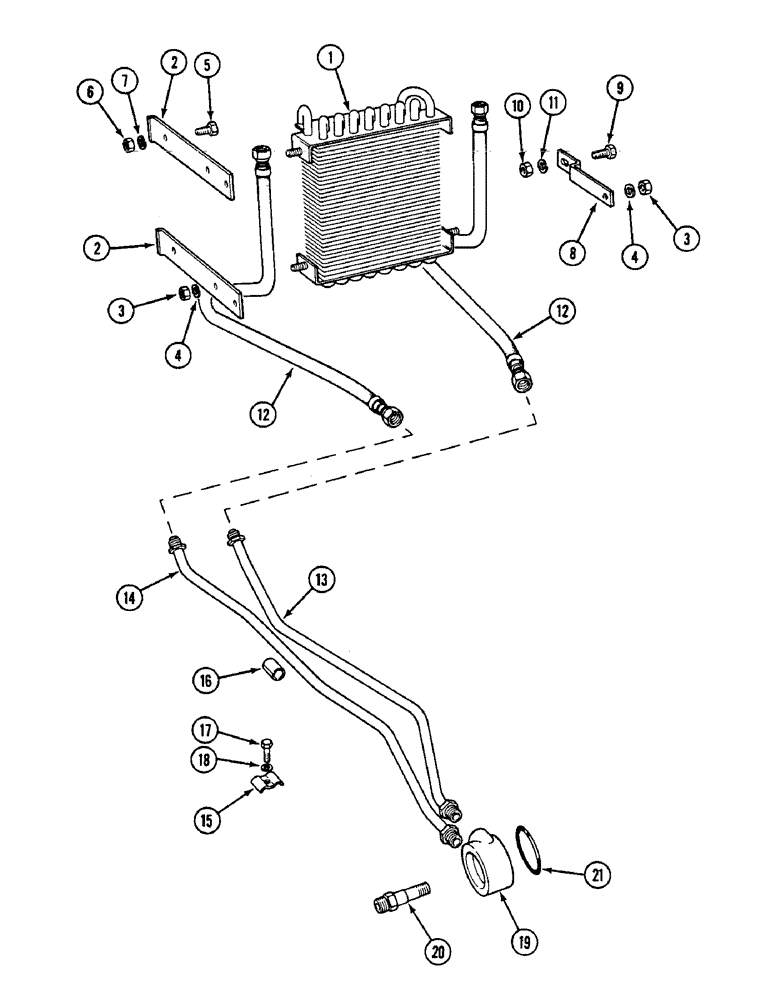

Запчасти Case IH 1594 (2-02) - ENGINE OIL COOLER (02) - ENGINE

1

K306303

COOLER

- oil

1шт.

2

K306304

SUPPORT

BRACKET - support

2шт.

3

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch UNC

3шт.

4

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 1.25 x 20 mm

2шт.

6

825-1408

NUT,M8, Cl 8

2шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

8

K306307

STAY

- (With air conditioning)

1шт.

8

K306305

STAY

- (Without air conditioning)

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 1.25 x 20 mm

1шт.

10

825-1408

NUT,M8, Cl 8

1шт.

11

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

12

K201664

HOSE

- flexible

2шт.

13

K206707

PIPE

TUBE - oil feed

1шт.

14

K206708

PIPE,43.25, 6.375" L

TUBE - oil return

1шт.

15

K306373

CLAMP

CLIP - tubes (Replaces K602982)

1шт.

16

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

SLEEVE - nylon

4шт.

17

K602982

SCREW,3/8" - 16 x 3/4", Gr S

BOLT - 3/8 UNC x 3/4 inch

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

K955686

HOUSING

- oil filter

1шт.

20

K200039

CONNECTOR, ELEC

CONNECTOR - 5/8 UNC - 3/4 inch UNF

1шт.

21

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.
