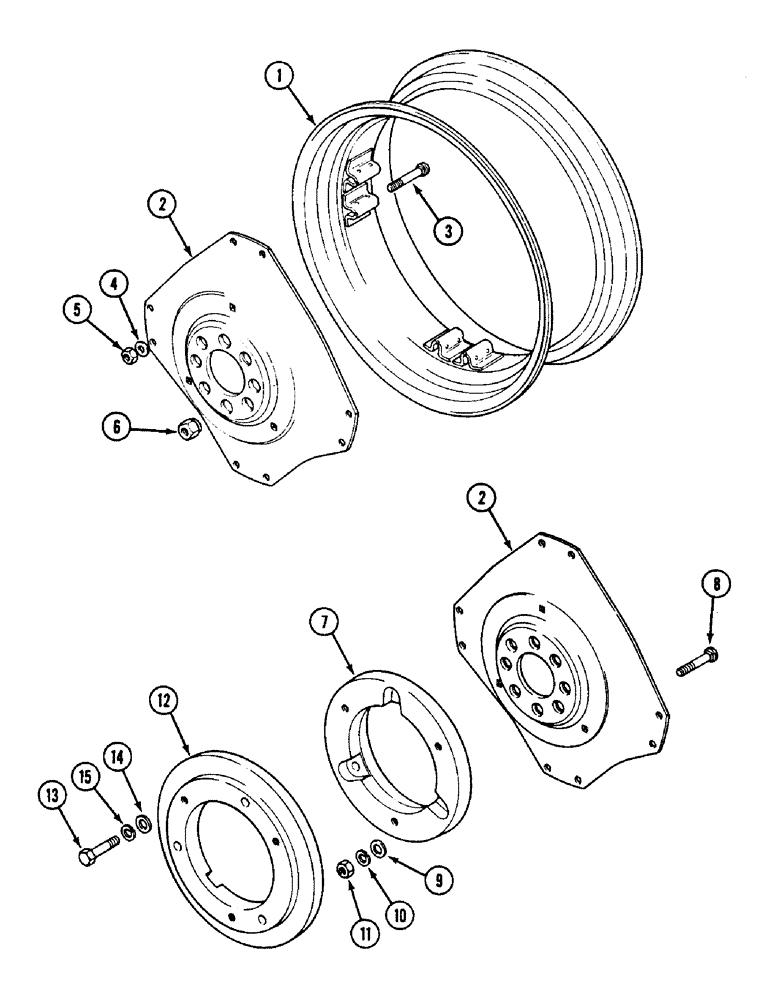

Запчасти Case IH 1594 (6-216) - REAR WHEELS AND BALLAST WEIGHTS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
WHEEL ASSEMBLY - rear, for 18.4/15-34 inch tires, Includes: Ref. 1 - 5
2шт.
1
K306363
RIM
- rear wheel, DW, 16 x 34
1шт.
2
K306352
DISC, WHEEL
CENTER - rear wheel
1шт.
3
1333029C1
BOLT,Coach, M16 x 120mm, Gr 8.8
BOLT - coach, 16 x 120 mm grade 8.8
8шт.
4
895-11016
WASHER,17.5mm ID x 30mm OD x 3mm Thk
Flat M16 x 30 x 3
8шт.
5
829-1416
NUT,M16, Cl 10
- hex, 16 mm - 2.0, class 10
8шт.
REF
INSTRUCTION
WHEEL ASSEMBLY - rear, for, 16.9/14-38 or 18-4/15 x 38 inch tire, Includes: Ref. 1 - 5
2шт.
1
K302535
RIM
- rear wheel, DW, 14 x 38 inch
1шт.
2
K302537
DISC, WHEEL
CENTER - rear wheel
1шт.
3
1333029C1
BOLT,Coach, M16 x 120mm, Gr 8.8
BOLT - coach, 16 x 120 mm grade 8.8
8шт.
4
895-11016
WASHER,17.5mm ID x 30mm OD x 3mm Thk
Flat M16 x 30 x 3
8шт.
5
829-1416
NUT,M16, Cl 10
- hex, 16 mm - 2.0, class 10
8шт.
K308870
WHEEL
ASSEMBLY - rear, for, 13.6/12 x 38 inch tires, Includes: Ref. 1 - 5
2шт.
1
1265244C1
RIM
- wheel
1шт.
2
K302537
DISC, WHEEL
CENTER - rear wheel
1шт.
3
1333029C1
BOLT,Coach, M16 x 120mm, Gr 8.8
BOLT - coach, 16 x 120 mm grade 8.8
8шт.
4
895-11016
WASHER,17.5mm ID x 30mm OD x 3mm Thk
Flat M16 x 30 x 3
8шт.
5
829-1416
NUT,M16, Cl 10
- hex, 16 mm - 2.0, class 10
8шт.
6
K617177
WHEEL NUT
- wheel, 3/4 inch UNF
16шт.
UK5926
WHEEL
WEIGHT UNIT - ballast, for wheels Order components, Includes: Ref. 7 - 15
1шт.
7
K207479
WHEEL
WEIGHT - ballast, inner, 45 kg (100 lb)
2шт.
8
K611283
BOLT
- 5/8 UNF x 3-1/2 inch, Serial Range: weight-wheel
6шт.
9
K626855
WASHER
- special, 5/8 inch (10 mm)
6шт.
10
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
6шт.
11
425-1110
NUT,5/8"-18, G5
6шт.
12
K207480
WHEEL
WEIGHT - ballast, outer, 44 kg (97 lb)
2шт.
13
K601366
BOLT
- 5/8 UNC x 3-1/2 inch, weight to weight, Order 413-1056
6шт.
14
K626855
WASHER
- special, 5/8 inch (10 mm)
6шт.
15
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
6шт.
Выбрано товаров: 29
