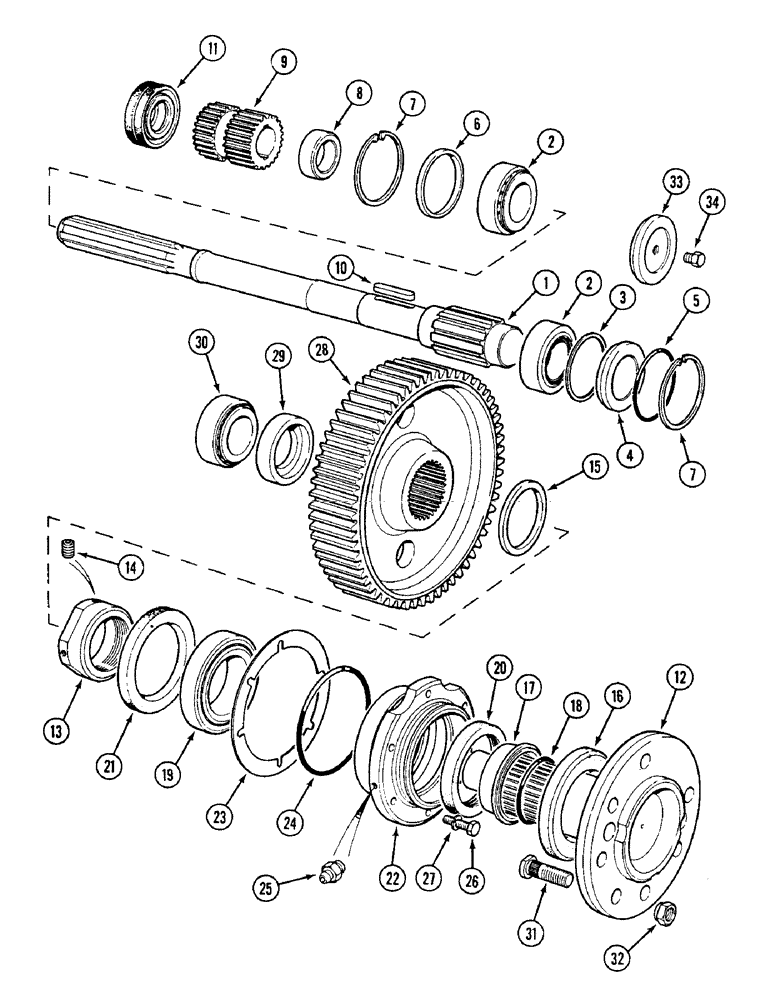

Запчасти Case IH 1594 (6-214) - FINAL DRIVE GEARS AND SHAFTS (06) - POWER TRAIN

1

K946505

SHAFT

- spur pinion (11 teeth, 11/58 ratio)

2шт.

1

K949740

SHAFT

- spur pinion (9 teeth, 9/59 ratio)

2шт.

2

REF

INSTRUCTION

BEARING - taper roller, Order 529207R91 and 529208R1

4шт.

3

K929906

SHIM

- 0.003 inch (0.07 mm)

1шт.

3

K929907

SHIM

- 0.007 inch (0.18 mm)

1шт.

3

K929908

SHIM

- 0.009 inch (0.22 mm)

1шт.

3

K929909

SHIM

- 0.015 inch (0.38 mm)

1шт.

4

K929889

PLATE

COVER - bearing, standard clearance

2шт.

5

K623703

O-RING,3.1mm Thk x 94.45mm ID

- 95 mm ID

2шт.

6

K929891

BUSHING

SPACER - bearing

2шт.

7

R30570

SNAP RING,3.75", Int, #375

Ring, Snap, brg 3.75", Int, #375

4шт.

8

K942015

BUSHING

SPACER - bearing

2шт.

9

K940854

HUB

- brake disc

2шт.

10

K622324

KEY

- 11/32 x 1/2 x 2-1/2 inch

4шт.

11

K13353

SEAL,44.45mm ID x 80.96mm OD x 12.7mm Thk

- oil, 1-3/4 x 3-3/16 x 1/2 inch (45 x 81 x 13 mm)

4шт.

12

K261008

DRIVE

SHAFT ASSEMBLY - final drive, Includes: 13 - 15

2шт.

13

K945534

LOCK NUT

RING NUT - 3-3/8 inch

1шт.

14

K606408

SCREW

LOCKSCREW - 3/8 UNC x 1/2 inch

1шт.

15

K955057

WASHER

SPACER - 0.230 inch (5.8 mm)

1шт.

15

K955058

WASHER

SPACER - 0.206 inch (5.2 mm)

1шт.

16

K924150

SHIELD

- dust

2шт.

17

K924148

COLLAR

SLEEVE - bearing

2шт.

18

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

2шт.

19

REF

INSTRUCTION

BEARING - taper roller, Order ST2040 and ST986

2шт.

20

K623432

SEAL,101.6mm ID x 127mm OD x 15.88mm Thk

- oil, 4 x 5 x 5/8 inch (102 x 127 x 16 mm)

2шт.

21

K623457

OIL SEAL

- 105 x 140 x 12 mm

2шт.

22

K945535

HOUSING

- oil seal, right-hand

1шт.

22

K945536

HOUSING

- oil seal, left-hand

1шт.

23

K940849

SHIM

- 0.003 inch (0.07 mm)

1шт.

23

K940848

SHIM,0.13mm Thk

- 0.005 inch (0.12 mm)

1шт.

23

K940847

SHIM,0.38mm Thk

- 0.015 inch (0.38 mm)

1шт.

23

K940846

SHIM

- 0.030 inch (0.76 mm)

1шт.

24

238-5256

O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

2шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

26

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

- hex, 7/16 UNC x 1-1/2 inch

12шт.

27

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

28

K957407

WHEEL

- spur (58 teeth, 11/58 ratio)

2шт.

28

K967406

BOLT

WHEEL - spur (59 teeth, 9/59 ratio)

2шт.

29

K206415

COLLAR

- shaft

2шт.

30

REF

INSTRUCTION

BEARING - taper roller, Order 529207R91 and 529208R1

2шт.

31

K611464

BOLT

- 3/4 inch UNF

16шт.

32

K617177

WHEEL NUT

- wheel, 3/4 inch UNF

16шт.

33

K311819

COVER

- end, high clearance

2шт.

34

K623752

PLUG

- end cover, 1/8 inch BSP

2шт.
