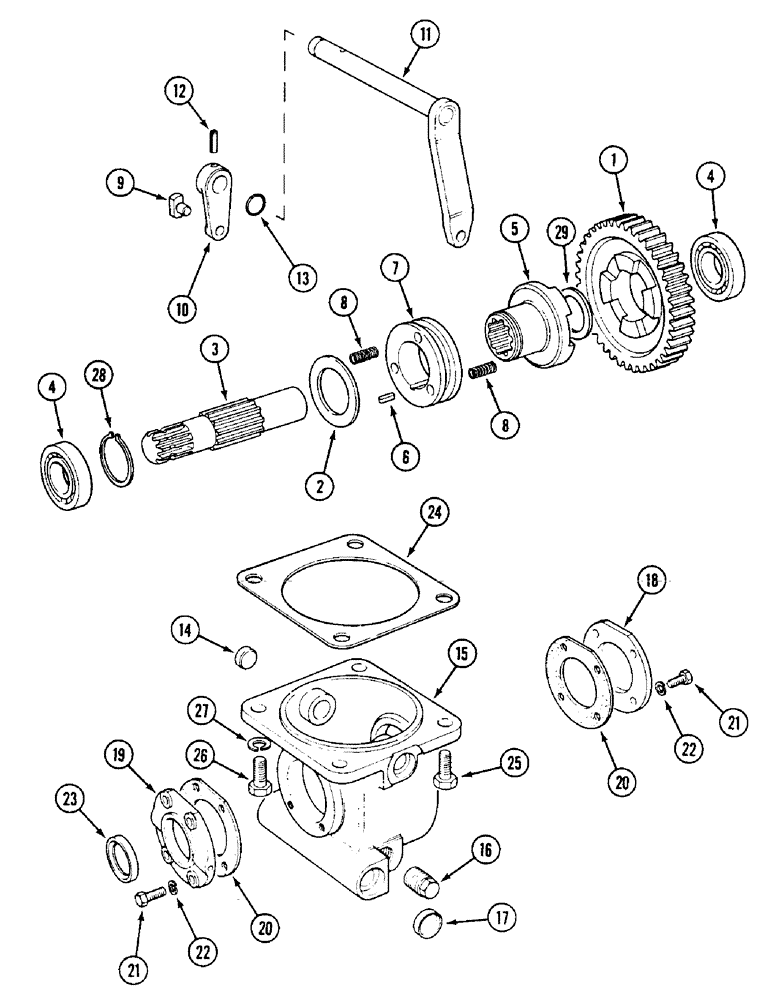

Запчасти Case IH 1594 (6-210) - TRANSFER GEARBOX - MFD POWER SHIFT (06) - POWER TRAIN

1

K205167

GEAR

- drive, includes two lugs (Carraro 116105)

1шт.

2

K261812

WASHER

- thrust (Carraro 115208)

1шт.

3

K261920

SHAFT

- output (Carraro 116104)

1шт.

4

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING - ball (Carraro 25808)

2шт.

5

K208021

SPLINED COUPLING

CLUTCH - sliding (Carraro 118914) (Replaces K261918)

1шт.

6

1966855C1

SPLINE

KEY - sleeve Carraro 24507

1шт.

7

1967549C1

SLEEVE

- clutch (Carraro 115797)

1шт.

8

K261814

SPRING

- clutch (Carraro 115798)

6шт.

9

K261924

SELECTOR

PIN - trunnion (Carraro 115307)

2шт.

10

K261922

SELECTOR

FORK - selector (Carraro 112872)

2шт.

11

K261930

SHAFT

SPINDLE AND LEVER - (Carraro 116108)

1шт.

12

K261917

PIN

- roll, spindle (Carraro 24440)

2шт.

13

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

(Carraro 28522) -114, 70 Duro, .612" ID x .103" Thk

1шт.

14

A157155

PLUG

- (Carraro 106320)

1шт.

15

K205168

HOUSING

- transfer box (Carraro 116090)

1шт.

16

110782A1

PLUG, DRAIN

PLUG - 24 mm (Carraro 92270)

1шт.

If your plug measures 22 mm with thread pitch of 1.5, use P/N A156873.

1шт.

17

K260751

CORE

PLUG - core (Carraro 112588)

2шт.

18

K965396

COVER

- rear (Carraro 89244)

1шт.

19

K965397

COVER

- front (Carraro 89275)

1шт.

20

K965398

GASKET

- cover

2шт.

21

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, M8 x 25 mm

8шт.

22

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

23

K965399

OIL SEAL

- oil (Carraro 25156)

1шт.

24

K261921

GASKET

- main frame

1шт.

25

K260269

BOLT

BOLT - 5/8 inch UNC (Carraro 21475)

3шт.

26

K260276

PIN

BOLT - 5/8 inch UNC (Carraro 106594)

1шт.

27

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

28

800-1152

SNAP RING,M52, External

RING - snap (Carraro 24807)

1шт.

29

K261919

WASHER

- thrust (Carraro 110287)

1шт.
