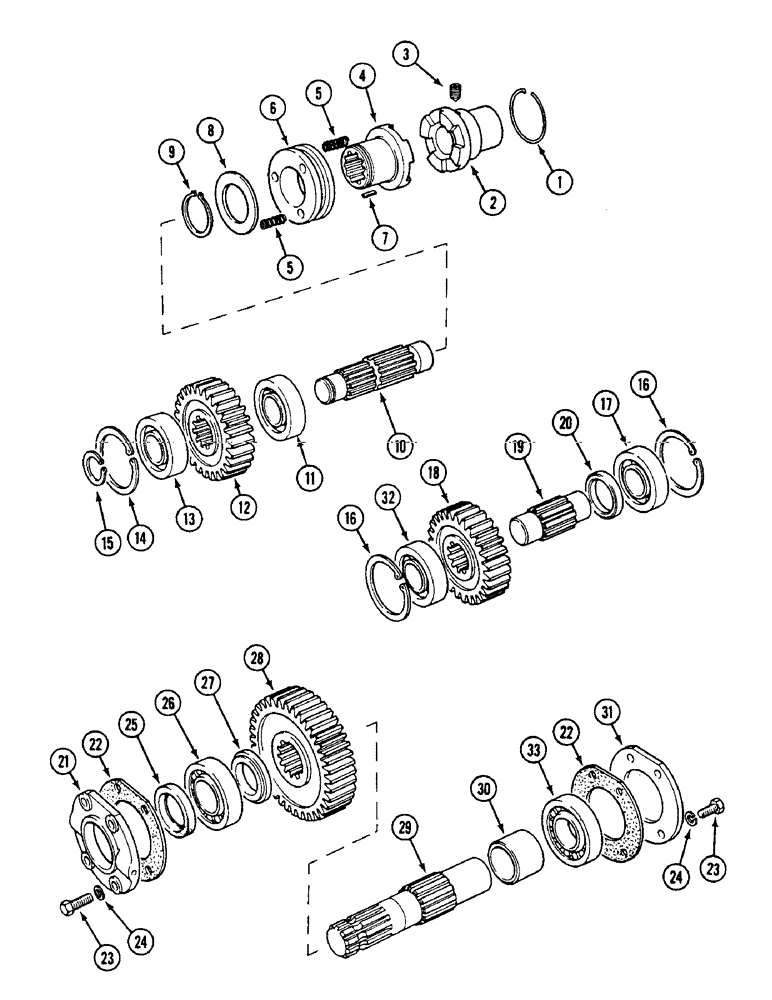

Запчасти Case IH 1594 (6-208) - TRANSFER GEARBOX GEARS AND SHAFTS, MFD - SYNCHROMESH (06) - POWER TRAIN

1

K965760

SPRING

RING - snap (Carraro 108169)

1шт.

2

K261903

SPLINED COUPLING

COUPLING - drive (Carraro 115962)

1шт.

3

K260742

SCREW

- drive coupling (Carraro 110550)

1шт.

4

K261815

SPLINED COUPLING

CLUTCH - sliding (Carraro 117836)

1шт.

5

K261814

SPRING

- clutch (Carraro 115798)

6шт.

6

1967549C1

SLEEVE

- clutch (Carraro 115797)

1шт.

7

1966855C1

SPLINE

KEY - sleeve (Carraro 24507)

1шт.

8

K261812

WASHER

- clutch (Carraro 115208)

1шт.

9

800-1152

SNAP RING,M52, External

RING - snap (Carraro 24807)

1шт.

10

K261811

DRIVE SHAFT

SHAFT - drive, gearbox (Carraro 115961)

1шт.

11

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING - ball (Carraro 25808)

1шт.

12

K260271

PINION

GEAR - drive (Carraro 106583)

1шт.

13

ST241

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

BEARING - ball (Carraro 25857)

1шт.

14

K965403

RING, SNAP

RING - snap (Carraro 24913)

1шт.

15

K965402

RING, SNAP

RING - snap (Carraro 24785)

1шт.

16

K965403

RING, SNAP

RING - snap (Carraro 24913)

1шт.

17

ST241

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

BEARING - ball (Carraro 25857)

1шт.

18

K260271

PINION

GEAR - intermediate (Carraro 106583)

2шт.

19

K965389

SHAFT

- intermediate (Carraro 105359)

1шт.

20

K260277

COLLAR

SPACER - bearing (Carraro 106580)

1шт.

21

K965397

COVER

PLATE - front (Carraro 89275)

1шт.

22

K965398

GASKET

- end plates (Carraro 88830)

2шт.

23

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, M8 x 25 mm (Carraro 20781)

8шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

25

K965399

OIL SEAL

- oil (Carraro 25156)

1шт.

26

K965406

ROLLER BEARING

BEARING - roller (Carraro 27544)

1шт.

27

K260278

COLLAR

SPACER - front (Carraro 104839)

1шт.

28

K260272

GEAR

- driven (Carraro 105803)

1шт.

29

K260273

SHAFT

- output (Carraro 106581)

1шт.

30

K965409

SHAFT

SPACER - rear (Carraro 105357)

1шт.

31

K965396

COVER

PLATE - rear (Carraro 89244)

1шт.

32

K395136

ROLLER BEARING

- roller (Carraro 27515)

1шт.

33

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING - ball (Carraro 25808)

1шт.
