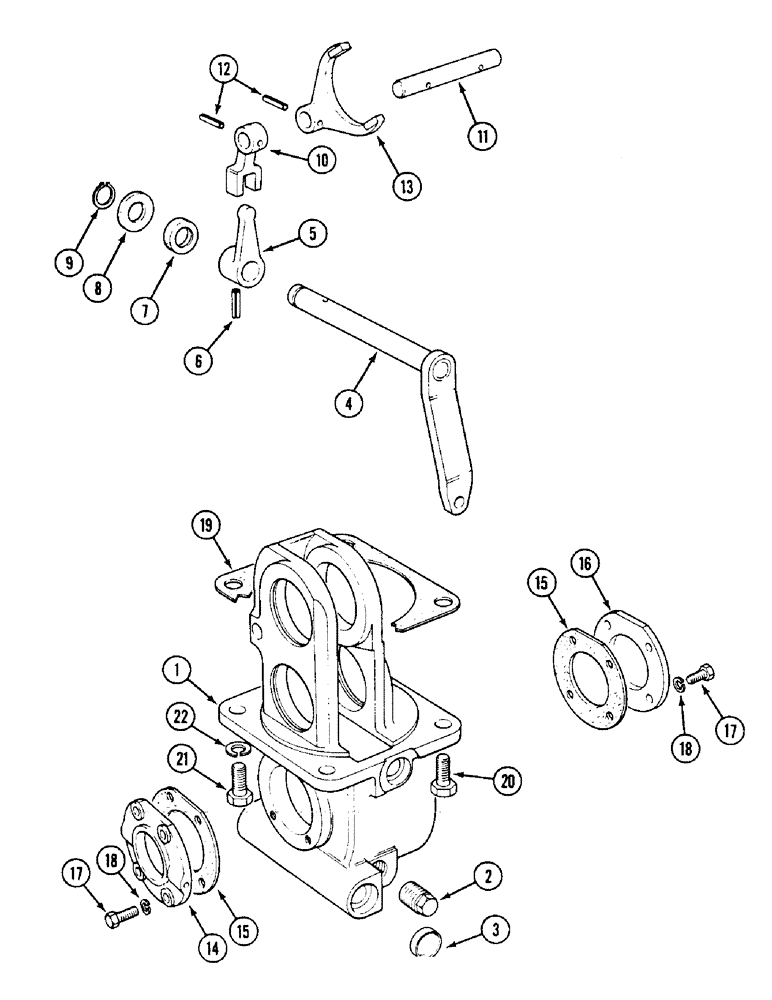

Запчасти Case IH 1594 (6-206) - TRANSFER GEARBOX - HOUSING AND SELECTOR, MFD - SYNCHROMESH (06) - POWER TRAIN

1

K205140

HOUSING

- gearbox (Carraro 113604)

1шт.

2

110782A1

PLUG, DRAIN

PLUG - 24 mm (Carraro 92270)

1шт.

3

K260751

CORE

PLUG - core (Carraro 112588)

2шт.

4

K261931

SHAFT

AND LEVER - selector (Carraro 117840)

1шт.

5

K260266

SELECTOR

LEVER - selector (Carraro 106578)

1шт.

6

905812R1

PIN,M6 x 36, Coiled

- roll (Carraro 24442)

1шт.

7

905835R1

OIL SEAL,20mm ID x 30mm OD x 7mm Thk

- oil (Carraro 25107)

2шт.

8

1966645C1

WASHER

- (Carraro 98492)

1шт.

9

800-1120

SNAP RING,M20, Ext

Retaining, IPTO shaft front bearing (Heavy duty) (Carraro 24775) M20, Ext

1шт.

10

K260265

SELECTOR

LEVER - selector (Carraro 105806)

1шт.

11

K261802

SHAFT

SPINDLE - selector (Carraro 115963)

1шт.

12

905829R1

PIN,M5 x 26, Coiled

- roll (Carraro 24437)

2шт.

13

K261801

FORK

- selector (Carraro 115964)

1шт.

14

K965397

COVER

PLATE - front (Carraro 89272)

1шт.

15

K965398

GASKET

- end plates (Carraro 88830)

2шт.

16

K965396

COVER

PLATE - rear (Carraro 89244)

1шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm (Carraro 20781)

8шт.

18

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

19

K260755

GASKET

- transfer housing (Carraro 111664)

1шт.

20

K260269

BOLT

BOLT - 5/8 inch UNC (Carraro 21475)

3шт.

21

K260276

PIN

BOLT - 5/8 inch UNC (Carraro 106594)

1шт.

22

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.
