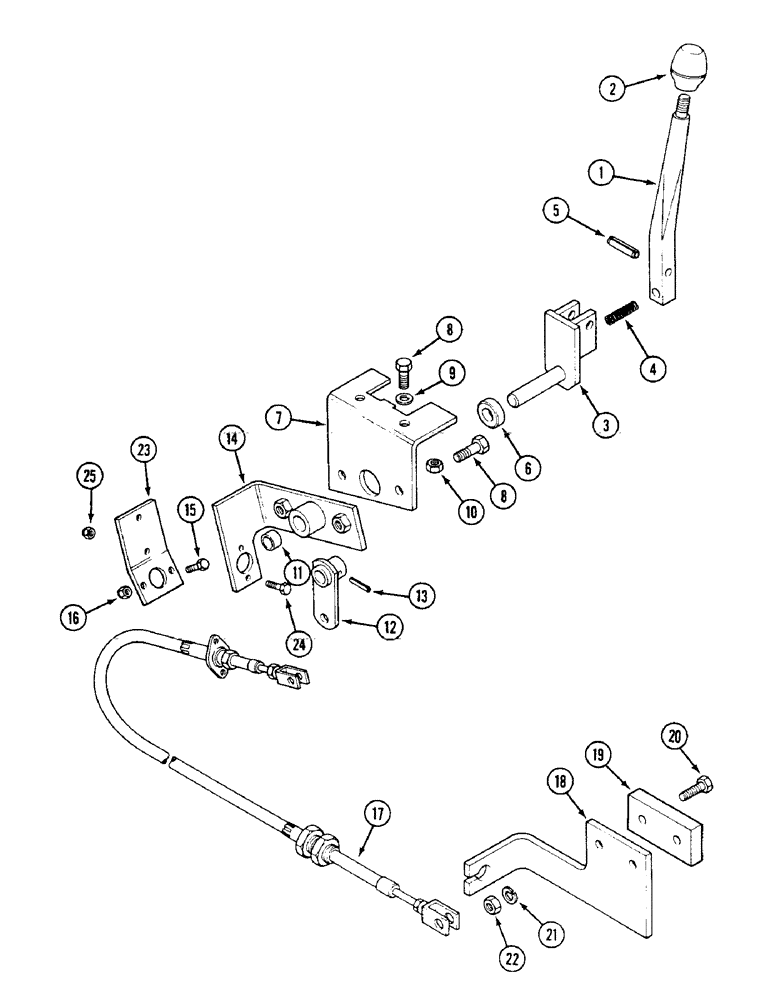

Запчасти Case IH 1594 (6-202) - MFD ENGAGEMENT LEVER, TRACTORS WITHOUT CAB (06) - POWER TRAIN

1

K207961

LEVER

- MFD selector (Replaces K206949)

1шт.

2

K955948

KNOB

- dump control (Replaces K950493)

1шт.

3

K207163

BLOCK

SPINDLE - selector lever

1шт.

4

K13507

SPRING

- selector lever

1шт.

5

K623894

PIN

- roll, 5/16 x 1-1/4 inch, Order 138-155

1шт.

6

K207191

BUSHING

SPACER - spindle

1шт.

7

K207584

PLATE

GATE - selector lever

1шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, M8 x 20 mm

4шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

10

825-1408

NUT,M8, Cl 8

2шт.

11

K628759

BUSHING

- bracket

2шт.

12

K952260

LEVER

- operating

1шт.

13

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

Pin, 3/16" x 7/8", Slotted

1шт.

14

K207337

BRACKET

- cable support, upper

1шт.

15

K613988

SCREW

- No. 10 UNF x 3/4 inch

2шт.

16

K617299

LOCK NUT

- self-locking, No. 10 UNF

2шт.

17

K307987

CABLE

- inner and outer

1шт.

18

K207583

BRACKET

- cable support

1шт.

19

K207349

BLOCK

SPACER - cable bracket, lower

1шт.

20

K650645

BOLT

- M8 x 35 mm

2шт.

21

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

22

825-1408

NUT,M8, Cl 8

2шт.

23

K208528

BRACKET - extension

1шт.

Reference #23, Part number K208528, is a good part number and there is a print in file. This part was never set up in the NA or European system. It has nver had a demand on it. Over 10 years old, and it will not be set-up. Send drawing to dealer and have him make locally. bj -1-13-98

1шт.

24

K613988

SCREW

- No. 10 UNF x 3/4 inch

2шт.

25

K617299

LOCK NUT

- self-locking, No. 10 UNF

2шт.
