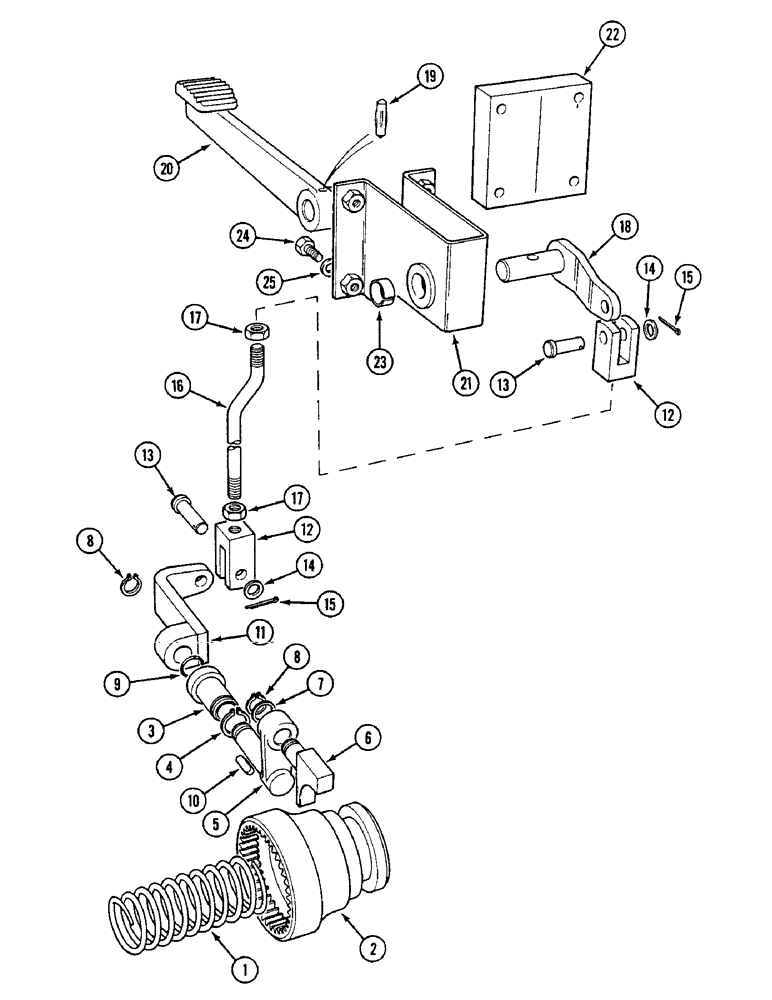

Запчасти Case IH 1594 (6-200) - DIFFERENTIAL LOCK, TRACTORS WITH CAB (06) - POWER TRAIN

1

K625119

SPRING

- return

1шт.

2

K940723

SLEEVE

- locking

1шт.

3

K903494

BUSHING

- rear axle housing

1шт.

4

K34454

RING, SNAP

RING - snap, 7/8 inch (22 mm) external

1шт.

5

K210155

SHAFT

AND ARM - selector (Replaces K940724)

1шт.

6

K940725

SELECTOR

FORK - selector

1шт.

7

K626736

WASHER

- 5/8 inch (16 mm) special

1шт.

8

K11797

RING, SNAP

RING - snap, 1/2 inch (13 mm) external

2шт.

9

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

10

K622309

KEY

- 3/16 x 5/32 x 3/4 inch

1шт.

11

K306740

LEVER

- rod

1шт.

12

K202301

FORK

- rod end, 3/8 inch UNC

2шт.

13

K950269

PIN

- pivot, Order also K621562 Circlip

2шт.

14

K19472

WASHER

- flat, 3/8 inch (10 mm)

2шт.

15

132-380

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

16

K202536

ROD

- 3/8 UNC x 17-1/4 inch

1шт.

17

425-106

NUT,3/8"-16, Cl 5

2шт.

18

K207131

LEVER

- operating (Replaces K202529)

1шт.

19

38-32022

PIN,5/16" x 1 3/8", Coiled

1шт.

20

K202528

PEDAL

- foot

1шт.

21

K307051

BRACKET

- pedal support (Replaces K202518)

1шт.

22

K307057

FOAM

SEAL - foam

2шт.

23

K628754

BUSHING

- bracket, lever

2шт.

24

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- M8 x 20 mm

4шт.

25

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.
