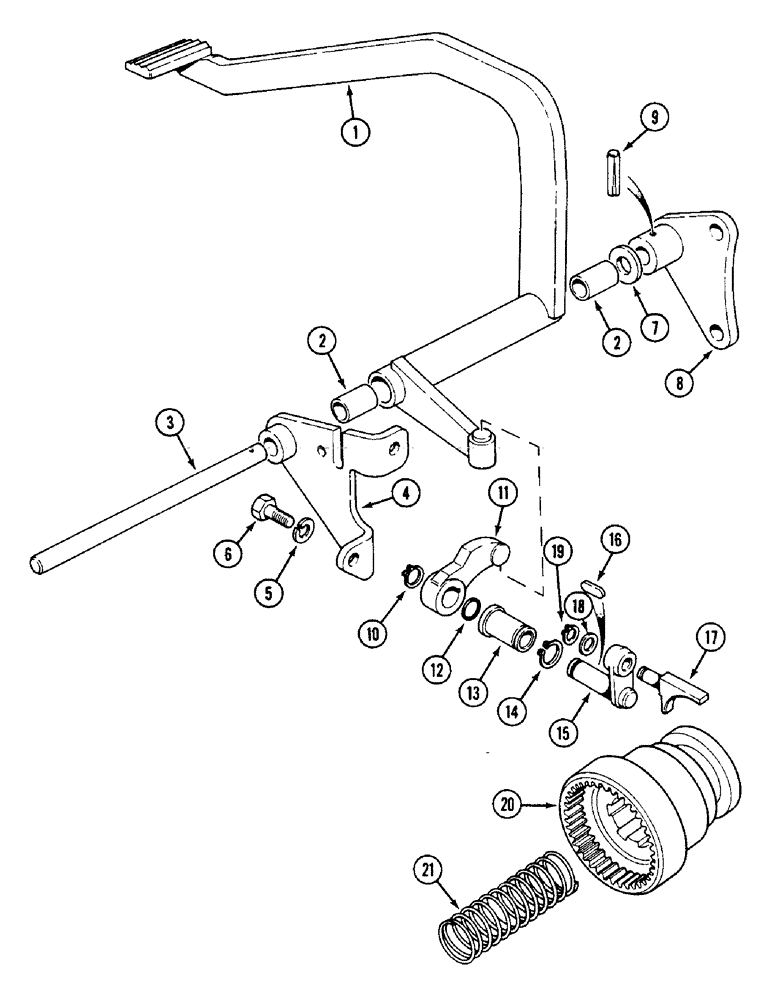

Запчасти Case IH 1594 (6-198) - DIFFERENTIAL LOCK, TRACTORS WITHOUT CAB (06) - POWER TRAIN

1

K203106

LOCK

PEDAL - differential lock

1шт.

2

K621377

BUSHING

- pedal

2шт.

3

K203520

SHAFT

SPINDLE

1шт.

4

K203087

LOCK

BRACKET

1шт.

5

492-11038

LOCK WASHER,3/8"

2шт.

6

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Order 413-616 Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

7

K202570

BUSHING

SPACER

1шт.

8

K203122

LOCK

BRACKET

1шт.

9

135-55

GROOVED PIN,3/16" x 1 1/4", Type A

Pin, Grooved, 3/16" x 1 1/4", Type A

1шт.

10

K11797

RING, SNAP

RING - snap

1шт.

11

K903228

LEVER

1шт.

12

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

13

K903494

BUSHING

- rear axle case

1шт.

14

K34454

RING, SNAP

RING - snap, 7/8 inch (22 mm) external

1шт.

15

K210155

SHAFT

AND ARM - selector (Replaces K940724)

1шт.

16

K622309

KEY

- 3/16 x 5/32 x 3/4 inch

1шт.

17

K940725

SELECTOR

FORK - selector

1шт.

18

K626736

WASHER

- 5/8 inch (16 mm) special

1шт.

19

K11797

RING, SNAP

RING - snap, 1/2 inch (13 mm) external

1шт.

20

K940723

SLEEVE

- locking

1шт.

21

K625119

SPRING

- return

1шт.
