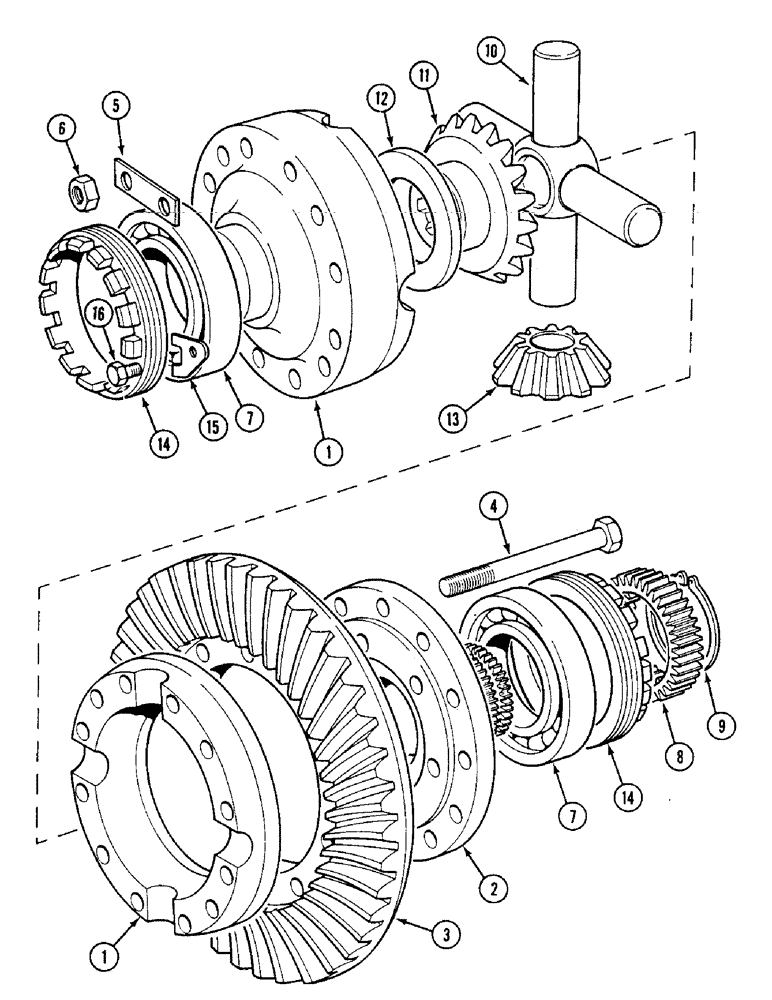

Запчасти Case IH 1594 (6-196) - DIFFERENTIAL (06) - POWER TRAIN

1

K954322

CAGE

- differential

1шт.

2

K940718

PLATE

- end

1шт.

3

K965821

PINION

AND SPIRAL GEAR - bevel (Synchromesh)

1шт.

3

K965800

GEAR-SET

BEVEL PINION AND SPIRAL GEAR - bevel (Power shift) (Two-wheel drive)

1шт.

3

K261786

WHEEL

BEVEL PINION AND SPIRAL GEAR - bevel (Power shift) (MFD)

1шт.

4

413-892

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

- hex, 1/2 UNC x 5-3/4 inch

12шт.

5

K626424

WASHER

- tab, bolt

6шт.

6

K607004

NUT

- hex, 1/2 inch UNC, Order 425-108

12шт.

7

K19010

BALL BEARING

BEARING - ball

2шт.

8

K940722

GEAR

RING - gear

1шт.

9

K621475

RING, SNAP

RING - snap, 2-1/2 inch (64 mm) external

1шт.

10

K954949

U-JOINT SPIDER

SPIDER - pinion

1шт.

11

K30234

CONE PINION

WHEEL - bevel

2шт.

12

K940805

WASHER, THRUST

WASHER - thrust

2шт.

13

K942317

DIFFERENTIAL

PINION - bevel

4шт.

14

K15007

RING, LOCKING

ADJUSTER - bearing

2шт.

15

K626420

WASHER

PLATE - lock

2шт.

16

K602801

BOLT (SPREADER)

BOLT - 5/16 UNC x 1/2 inch, Order 413-58

2шт.
