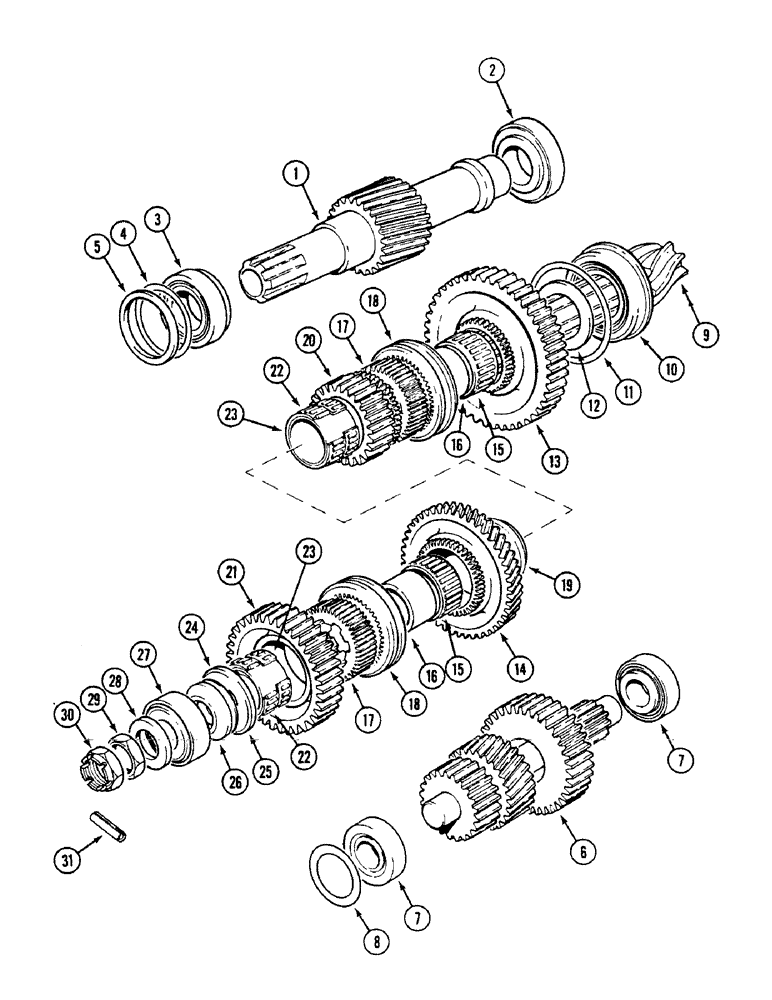

Запчасти Case IH 1594 (6-192) - SHAFTS AND GEARS - RANGE GEARBOX, POWER SHIFT (06) - POWER TRAIN

1

K948489

DRIVE SHAFT

SHAFT - drive

1шт.

2

K620117

ROLLER

BEARING - roller, tapered

1шт.

3

REF

INSTRUCTION

BEARING - roller, tapered, Order B17220 and 300426R91

1шт.

4

K626254

SHIM,.002" Thk

(0.05 mm) .002" Thk

1шт.

4

K626255

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

4

K626256

SHIM,.015" Thk

(0.38 mm) .015" Thk

1шт.

4

K626257

SHIM,.030" Thk

(0.76 mm) .030" Thk

1шт.

5

K940603

BUSHING

SPACER

1шт.

6

K948493

SHAFT

LAYSHAFT

1шт.

7

K620116

TAPERED BEARING,31.75mm ID x 68.26mm OD x 22.23mm W

- roller, tapered

2шт.

8

K928485

SHIM

- 0.002 inch (0.05 mm)

1шт.

8

K928486

SHIM

- 0.005 inch (0.13 mm)

1шт.

8

K928487

SHIM

- 0.015 inch (0.38 mm)

1шт.

8

K928488

SHIM

- 0.030 inch (0.76 mm)

1шт.

9

K965800

GEAR-SET

BEVEL PINION AND SPIRAL GEAR - bevel (Two-wheel drive)

1шт.

9

K261786

WHEEL

BEVEL PINION AND SPIRAL GEAR - bevel (MFD)

1шт.

10

K620158

TAPERED BEARING

BEARING - roller, tapered

1шт.

11

K626983

SHIM,.002" Thk

(0.05 mm) .002" Thk

1шт.

11

K626984

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

11

K626985

SHIM

- 0.010 inch (0.25 mm)

1шт.

12

K928637

COLLAR

1шт.

13

K948492

GEAR

- 38 teeth

1шт.

14

K928319

GEAR

- 43 teeth

1шт.

15

K620081

NEEDLE BEARING

BEARING - roller, needle

2шт.

16

K917103

BUSHING

BEARING BUSHING - short

2шт.

17

K928636

GEAR

CLUTCH - fixed dog

2шт.

18

K917109

GEAR

CLUTCH - sliding dog

2шт.

19

K928637

COLLAR

1шт.

20

K948491

GEAR

- 22 teeth

1шт.

21

K948490

GEAR

- 30 teeth

1шт.

22

K620080

NEEDLE BEARING

BEARING - roller, needle

4шт.

23

K917104

BUSHING

BEARING BUSHING - long

2шт.

24

K917106

COLLAR

- (Two-wheel drive)

1шт.

25

K943058

SHIM

- 0.002 inch (0.05 mm) (Two-wheel drive)

1шт.

25

K943059

SHIM

- 0.005 inch (0.13 mm) (Two-wheel drive)

1шт.

25

K943060

SHIM

- 0.015 inch (0.38 mm) (Two-wheel drive)

1шт.

25

K943061

SHIM

- 0.030 inch (0.76 mm) (Two-wheel drive)

1шт.

26

K928641

BUSHING

SPACER - two-wheel drive

1шт.

27

K620061

BEARING, ROLLER

BEARING - roller, tapered (Two-wheel drive)

1шт.

28

K14687

WASHER

- 1-1/8 inch (29 mm) (Two-wheel drive)

1шт.

29

K623317

LOCK NUT

- 1-1/8 inch BSF, left-hand thread (Two-wheel drive)

1шт.

30

K622805

LOCK NUT

- lock, 1-1/8 BSF, left-hand thread (Two-wheel drive)

1шт.

31

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, , 2WD 3/16" x 1 1/2", Slotted

1шт.
