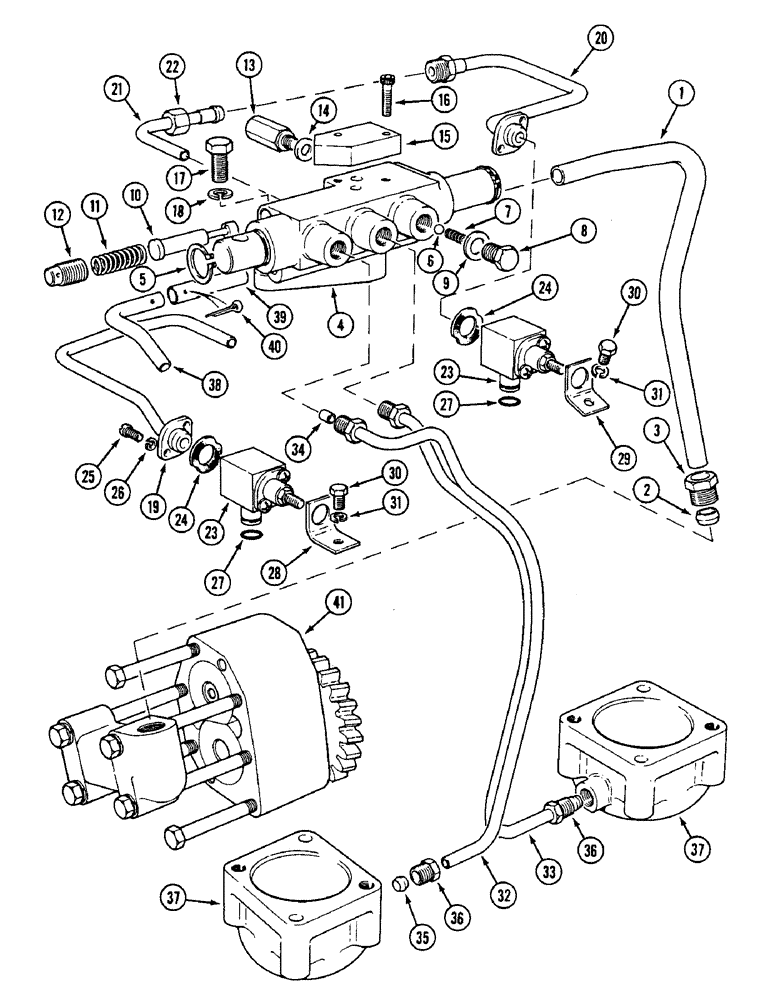

Запчасти Case IH 1594 (6-190) - CONTROL VALVES AND TUBES, POWER SHIFT (06) - POWER TRAIN

1

K201836

PIPE,9.875, 5.437" L

TUBE - connector to valve inlet

1шт.

2

K11904

FERRULE

SLEEVE - 1/2 inch (13 mm)

2шт.

3

K617953

TUBE NUT

NUT - tubeing, 3/4 inch UNF

2шт.

4

K959399

VALVE

ASSEMBLY - control, Includes: Ref. 5 - 14

1шт.

5

K34454

RING, SNAP

RING - snap, 7/8 inch (22 mm) external

1шт.

6

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 24

1шт.

7

K625208

SPRING

- detent

1шт.

8

K619538

PLUG

- 7/16 inch UNF special

1шт.

9

K626788

WASHER

- aluminum, 7/16 inch (11 mm)

1шт.

10

K203026

PISTON

PLUNGER - relief valve

1шт.

11

K625206

SPRING

-

1шт.

12

K202400

VALVE

ADJUSTER - 3/8 inch BSP

1шт.

13

K623847

PLUG

- 1/8 inch BSP special

1шт.

14

K16732

WASHER

- copper, 3/8 inch (10 mm)

1шт.

15

K202125

PLATE

- restrictor

1шт.

16

K606500

SCREW

BOLT - 1/4 UNC x 1/2 inch, Order 61-3258

2шт.

17

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Order 413-614 Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

K203204

PIPE,0.312" OD x 3.687, 5.437" L

TUBE - front sequence valve

1шт.

20

K203203

PIPE,0.312" OD x 4.833, 3.812" L

TUBE - union to rear sequence valve

1шт.

21

K202168

CONNECTOR, ELEC,0.312" OD x 1.75, 2.625" L

TUBE - control valve to union

1шт.

22

K19644

FITTING

NUT - union, 1/4 inch BSP

1шт.

23

K963539

VALVE

ASSEMBLY - sequence

2шт.

24

K626460

SEALING WASHER

WASHER - sealing

2шт.

25

K615403

SCREW

- no. 10 UNF x 3/8 inch

8шт.

26

K19488

SPRING WASHER

- lock, 3/16 inch

8шт.

27

K24554

O-RING

- sealing, 1/2 inch (13 mm) diameter

2шт.

28

K940535

PLATE

- retaining, front valve

1шт.

29

K940534

PLATE

- retaining, rear valve

1шт.

30

K602700

SCREW,1/4" - 20 x 3/8"

BOLT - 1/4 UNC x 3/8 inch, Order 113-6

2шт.

31

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

32

K202167

PIPE

TUBE - front brake band cylinder

1шт.

33

K202166

PIPE

TUBE - rear brake band cylinder

1шт.

34

K943460

PLUG

- restrictor, brake tubes

2шт.

35

K622401

RING

SLEEVE - 5/16 inch (8 mm)

6шт.

36

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

NUT - tubing, 1/2 inch UNF

6шт.

37

REF

INSTRUCTION

CYLINDER AND PISTON - brake band, See Figure 6-174

2шт.

38

K202165

PIPE

TUBE - front unit lubrication

1шт.

39

K942700

PIPE,0.375" OD x 2.25" L

CONNECTOR - valve to tube

1шт.

40

K19523

PIN

- cotter, 1/16 x 3/4 inch

1шт.

41

REF

INSTRUCTION

PUMP ASSEMBLY, See Figure 6-188

1шт.
