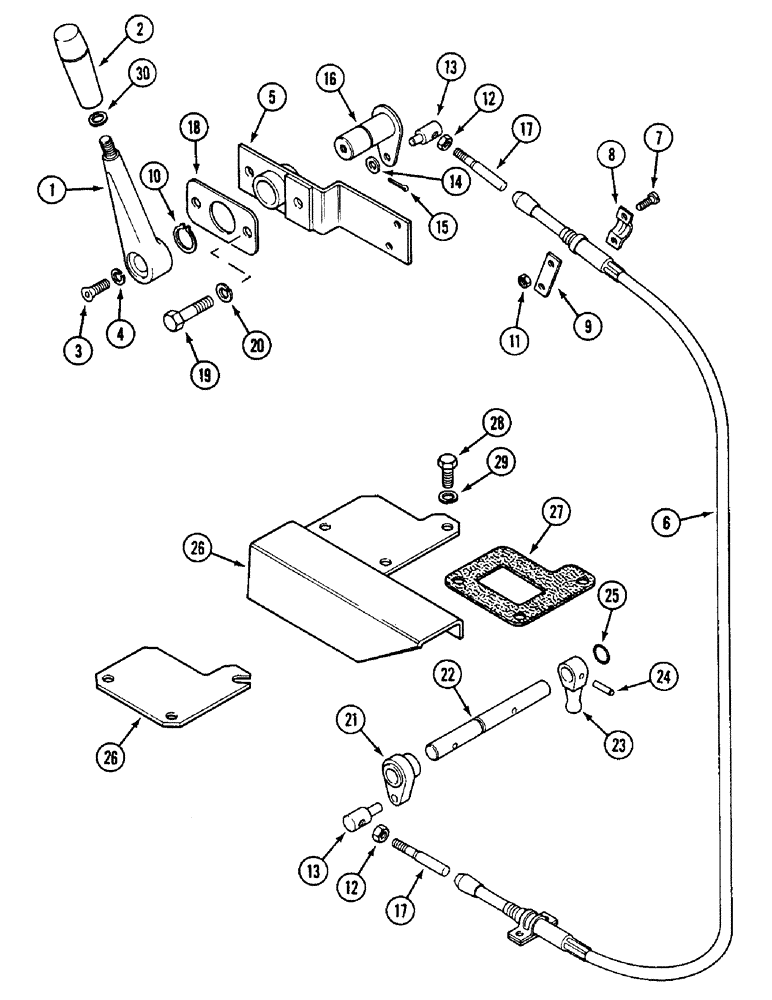

Запчасти Case IH 1594 (6-182) - POWER SHIFT SELECTOR LEVER (06) - POWER TRAIN

REF

INSTRUCTION

SELECTOR LEVER AND CABLE - Order components, Includes: Ref. 1 - 17

1шт.

1

K261005

HANDLE

LEVER - selector

1шт.

2

K307557

KNOB

- selector lever (Replaces K261006)

1шт.

3

443-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

1шт.

4

K207297

LOCK WASHER

- lock, 1/4 inch

1шт.

5

K207676

BRACKET

- lever shaft (Without cab)

1шт.

5

K207676

BRACKET

- lever shaft (With cab)

1шт.

6

K261003

CABLE

- inner and outer, 1 130 mm (Without cab)

1шт.

6

K261004

CABLE

CABLE - inner and outer, 975 mm (With cab)

1шт.

7

490-11010

SCREW,Cross Pan Hd, #10-32 x 5/8"

- machine, pan Phillips, No. 10 NF x 5/8 inch

4шт.

8

K207283

CLIP

- cable

2шт.

9

K207284

PLATE

- cable clip

3шт.

10

K621530

RING, SNAP

RING - retaining, lever shaft

1шт.

11

K617299

LOCK NUT

- self-locking, No. 10 UNF

2шт.

12

27122R1

LOCK NUT,1/4"-28, GC

NUT - retaining

2шт.

13

K207292

PIVOT

- cable end

2шт.

14

K626662

WASHER

- 1/4 inch

2шт.

15

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

16

K207294

LEVER

AND SHAFT

1шт.

17

K207296

LARGE PIN

FITTING - cable end

2шт.

18

K304556

PLATE

- mounting

1шт.

19

K650645

BOLT

- M8 x 35 mm

2шт.

20

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

21

K205309

LEVER

- cable

1шт.

22

K205302

SHAFT

SPINDLE - gearbox cover

1шт.

23

K201835

SELECTOR

LEVER - spool valve

1шт.

24

K623729

PIN

- 3/16 x 3/4 inch

2шт.

25

K24554

O-RING

RING - sealing, 1/2 inch (13 mm) diameter

1шт.

26

K207780

COVER

PLATE - gearbox cover (Without cab)

1шт.

26

K308400

COVER

PLATE - gearbox cover (With cab)

1шт.

27

K207786

GASKET,0.25mm Thk

- cover plate

1шт.

28

K602803

BOLT

- 5/16 UNC x 3/4 inch, Order 413-512

3шт.

29

K19481

SPRING WASHER

WASHER - lock, 5/16 inch, Order 492-11031

3шт.

30

K19472

WASHER

- flat, 3/8 inch (10 mm)

1шт.
