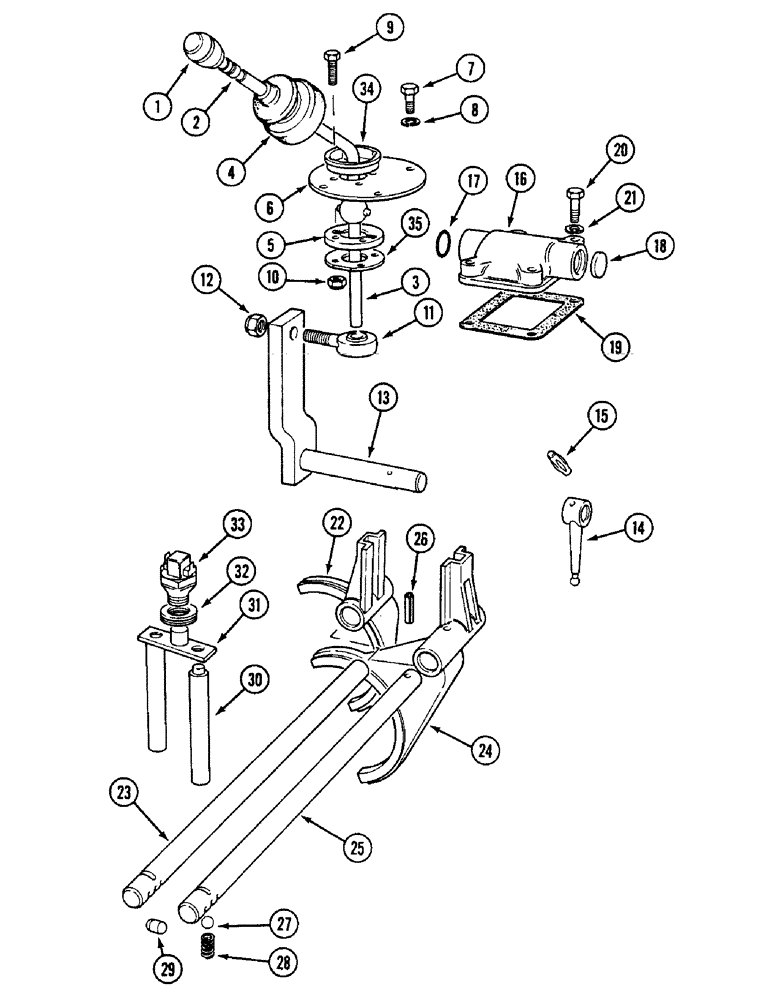

Запчасти Case IH 1594 (6-180) - RANGE SHIFT LEVER - POWER SHIFT, TRACTORS WITH CAB (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
K203121
BALL KNOB
KNOB - lever
1шт.
2
K628472
RING
- retaining, Serial Range: knob-lever
1шт.
3
K206709
LEVER
- gear
1шт.
4
K204741
BELLOWS
COVER - rubber
1шт.
5
K204810
HOUSING
- ball
1шт.
6
K204803
PLATE
- lever
1шт.
7
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
- hex, full threads, 8 - 1.25 x 20 mm
4шт.
8
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
10шт.
9
K606508
SCREW
BOLT - 1/4 UNC x 1-1/2 inch
4шт.
10
231-1444
NUT,1/4"-20, GB
NUT, LOCK, 1/4"-20, GB
4шт.
11
K204680
ROD
JOINT - ball
1шт.
12
131-377
LOCK NUT,5/8"-11, GC
NUT - lock, ball joint, 5/8 inch UNC
1шт.
13
K204767
SHAFT
AND ARM - selector
1шт.
14
K202079
SELECTOR
LEVER - selector
1шт.
15
617938R1
PIN,5/16" x 1 3/8", Coiled
1шт.
16
K950243
HOUSING
- lever shaft
1шт.
17
K623630
SEAL
- oil, 7/8 inch (22 mm) ID
1шт.
18
41-16
PLUG,Exp, 1"
- expansion, housing
1шт.
19
K950543
GASKET,0.2mm Thk
- housing
1шт.
20
K600205
BOLT
- 5/16 UNC x 1-1/2 inch
4шт.
21
K19481
SPRING WASHER
WASHER - lock, 5/16 inch
4шт.
22
K917217
SELECTOR
FORK - selector, first and third range
1шт.
23
K917216
SELECTOR
ROD - selector, first and third range
1шт.
24
K917219
SELECTOR
FORK - selector, second and reverse range
1шт.
25
K917218
SELECTOR
ROD - selector, second and reverse range
1шт.
26
K623887
PIN,5.21mm OD x 25.4mm L
- roll, 3/16 x 1 inch
2шт.
27
211-1012
BALL,3/8" Dia
- chrome alloy steel, 3/8 inch, grade 24
4шт.
28
K13507
SPRING
- gear detent
2шт.
29
K30430
LOCKING DEVICE
LOCK - gear
1шт.
30
K954204
PLUNGER
- switch
1шт.
31
K954208
GUIDE
PLUNGER - safety switch
1шт.
32
K626895
SHIM,.002" Thk
(0.05 mm) .002" Thk
1шт.
32
K626858
SHIM,.005" Thk
(0.13 mm) .005" Thk
1шт.
32
K626894
SHIM,.010" Thk
(0.25 mm) .010" Thk
1шт.
33
K262714
SWITCH
- safety starter
1шт.
34
K205234
RETAINER
- upper
1шт.
35
K204742
PLATE
RETAINER - lower
1шт.
Выбрано товаров: 37
