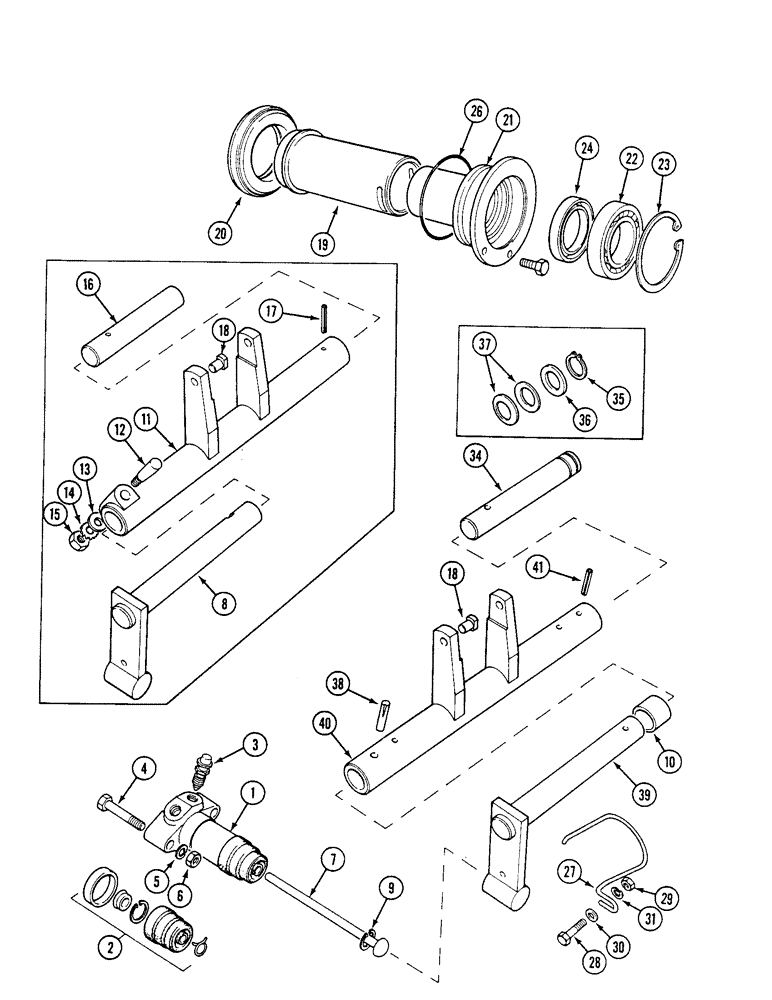

Запчасти Case IH 1494 (6-170) - TRANSMISSION CLUTCH RELEASE MECHANISM, MECHANICAL COMPONENTS (06) - POWER TRAIN

1

K306544

CYLINDER,50mm Stroke

ASSEMBLY slave, Girling 73067124, Mineral oil, Includes: Ref. 2 & 3

1шт.

2

K261633

SEAL KIT

SEAL KIT slave cylinder

1шт.

3

K964534

SCREW,M12 x 1

air removal, M12

1шт.

4

K650648

BOLT

M8 x 15 mm

2шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

6

825-1408

NUT,M8, Cl 8

2шт.

7

K206924

ROD

push, cylinder

1шт.

8

K206759

ARM

SHAFT AND LEVER stub, left hand, prior to P.I.N. 11276546

1шт.

9

K653434

RING, SNAP

RING snap, 20 mm, internal

1шт.

10

K628753

BUSHING

main frame

3шт.

11

K200323

CLUTCH

FORK clutch, prior to P.I.N. 11276546

1шт.

12

K609425

LARGE PIN

PIN locking, 3/8 inch UNC, prior to P.I.N. 11276546

1шт.

13

K19472

WASHER

flat, 3/8 inch, 10 mm, prior to P.I.N. 11276546

1шт.

14

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, , Prior to P.I.N. 11276546 Ext Tooth, 3/8"

1шт.

15

280136

NUT,3/8"-16, G8

Prior to P.I.N. 11276546 3/8"-16, G8

1шт.

16

K200483

SHAFT

stub, right hand, prior to P.I.N. 11276546

1шт.

17

K623726

PIN

roll, 1/4 x 1-1/2 inch, prior to P.I.N. 11276546

1шт.

18

K84748

TRUNNION

PIN trunnion, clutch fork

2шт.

19

K928937

BEARING CARRIER,54.04mm ID x 76.2mm OD x 107.95mm L

CARRIER release bearing

1шт.

20

K620153

THRUST BEARING,69.84mm ID x 103.17mm OD x 21.59mm W

BEARING release

1шт.

21

K202075

SUPPORT

bearing carrier, Synchromesh without creeper gear

1шт.

21

K210107

SUPPORT

bearing carrier, Synchromesh with creeper gear

1шт.

22

G10418

BEARING, BALL

BEARING ball, Synchromesh transmission

1шт.

22

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

BEARING ball, 4-1/2 inch OD x 3 inch ID

1шт.

23

K12229

RING, SNAP

RING snap, 75 mm

1шт.

24

K623483

OIL SEAL

oil, 50 x 70 x 10 mm

1шт.

24

K623430

OIL SEAL

oil, 45 x 65 x 8 mm

1шт.

25

K602862

SCREW,5/16" - 18 x 1 1/4", Gr S

BOLT, 5/16 UNC x 1 inch

3шт.

26

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

27

K207045

SPRING

cross shaft

1шт.

28

K966404

SCREW

BOLT, 1/4 UNC x1-1/8 inch

1шт.

29

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch UNC

1шт.

30

K626662

WASHER

1/4 inch

1шт.

31

K626341

SPRING WASHER

WASHER lock, 1/4 inch

1шт.

34

K210127

SHAFT

stub, right hand, P.I.N. 11276546 and after

1шт.

35

K11128

CIRCLIP

RING snap, 1 inch, 25 mm, external, Serial Range: 11276546-11515727

1шт.

36

K627472

WASHER

1 inch, Serial Range: 11276546-11515727

1шт.

37

K626749

WASHER

Belleville, 1 inch, P.I.N. 11276546 and after

4шт.

38

K623768

GROOVED PIN,3/8" x 2", Type B

Pin, Grooved, (P.I.N. 11276546 and after) 3/8" x 2", Type B

1шт.

39

K207996

LEVER

SHAFT AND LEVER, left hand, P.I.N. 11276546 and after

1шт.

40

K207254

CLUTCH

FORK clutch, P.I.N. 11276546 and after

1шт.

41

135-765

GROOVED PIN,1/4" x 1 3/4", Type E

PIN, 5/64 x 3/4 inch

1шт.
