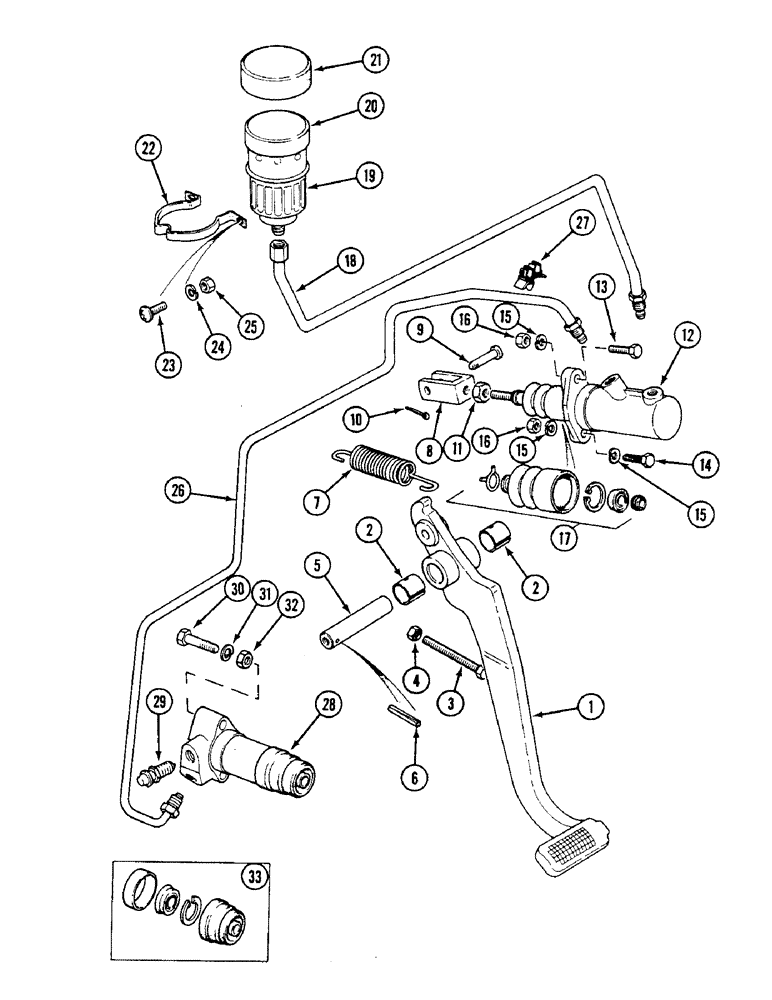

Запчасти Case IH 1494 (6-166) - TRANSMISSION CLUTCH RELEASE MECHANISM, TRACTORS WITHOUT CAB (06) - POWER TRAIN

1

K260510

CLUTCH

PEDAL clutch, brake, Includes: Ref. 2

1шт.

2

K628764

BUSHING

pivot

2шт.

3

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

1,шт.

4

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

5

K202056

PIN

pivot, clutch pedal

1шт.

6

K19552

GROOVED PIN,1/8" x 1 1/8", Type A

Pin, Grooved, 1/8" x 1 1/8", Type A

1шт.

7

K624970

SPRING

pedal return

1шт.

8

K622205

FORK

END fork, 5/16 inch UNF

1шт.

9

K625954

PIN

clevis, 5/16 x 1-3/16 inch

1шт.

10

K19528

PIN

cotter, 1/16 x 1/2 inch

1шт.

11

425-115

NUT,5/16"-24, G5

lock, 5/16 inch UNF

1шт.

12

K950544

CYLINDER,36.32mm Stroke

ASSEMBLY master, Mineral oil, Girling 73067017

1шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 1.25 x 25 mm

1шт.

14

K655645

BOLT

SCREW, M8 x 16 mm

1шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

16

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

17

K964572

SEAL KIT

SEAL KIT master cylinder

1шт.

18

K302631

PIPE

TUBE, reservoir to master cylinder

1шт.

19

K951526

RESERVOIR

brake, Includes: Ref. 20 & 21

1шт.

20

K964488

CAP

filler, reservoir

1шт.

21

K964813

COVER

green

1шт.

22

K200671

SPRING

CLAMP reservoir

1шт.

23

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

machine, pan Phillips, No. 10 UNF x 1/2 inch

2шт.

24

K626340

RING

WASHER lock, 10

2шт.

25

225-14210

NUT,#10-32

2шт.

26

K307539

CLUTCH

TUBE, master cylinder to slave cylinder

1шт.

27

K625024

CLIP

tube

1шт.

28

K306544

CYLINDER,50mm Stroke

ASSEMBLY slave, Girling 73067124, Mineral oil, Includes: Ref. 29

1шт.

29

K964534

SCREW,M12 x 1

air removal

1шт.

30

K650648

BOLT

M8 x 15 mm

2шт.

31

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

32

825-1408

NUT,M8, Cl 8

2шт.

33

K261633

SEAL KIT

SEAL KIT slave cylinder

1шт.
