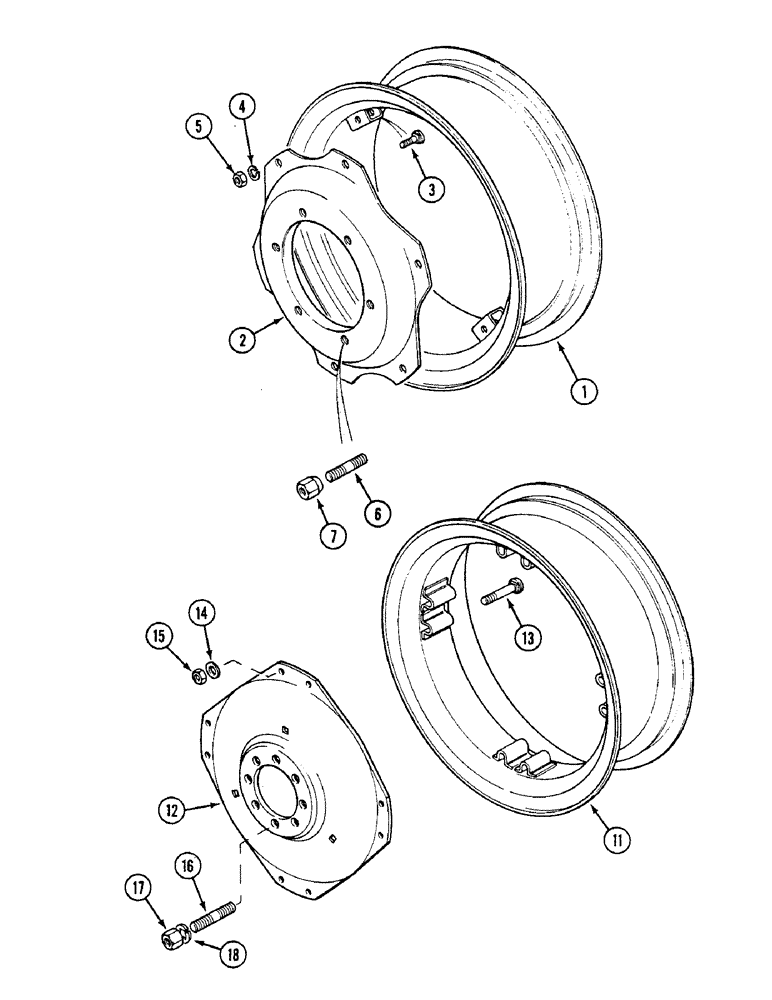

Запчасти Case IH 1494 (5-162) - FRONT WHEELS, MFD TRACTORS, PRIOR TO P.I.N. 11518001 AND AFTER (05) - STEERING
№
Артикул
Название
Примечание
Количество
K307634
WHEEL
ASSEMBLY, front, for 12.4/11-24 inch tires, Includes: Ref. 1 - 5
2шт.
1
K307637
RIM
wheel, W10 x 24
1шт.
2
K307640
DISC, WHEEL
WHEEL, center, steel
1шт.
3
1335133C1
PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9
BOLT - carriage, 16 mm - 2.00 x 74 mm
6шт.
4
1335135C1
WASHER
flat, 17 x 33 x 5 mm
6шт.
5
829-1416
NUT,M16, Cl 10
hex, 16 mm - 2.0, class 10
6шт.
K307635
WHEEL
ASSEMBLY, front, for 13.6/12-24 inch tires, Includes: Ref. 1 - 5
2шт.
1
K307638
RIM
WHEEL, W12 x 24 inch
1шт.
2
K307640
DISC, WHEEL
WHEEL, center, steel
1шт.
3
1335133C1
PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9
BOLT - carriage, 16 mm - 2.00 x 74 mm
6шт.
4
1335135C1
WASHER
flat, 17 x 33 x 5 mm
6шт.
5
829-1416
NUT,M16, Cl 10
hex, 16 mm - 2.0, class 10
6шт.
6
K205125
STUD
hub, M14 x 52 mm
12шт.
7
K965326
WHEEL NUT
wheel, M14
12шт.
K330080
RIM
WHEEL ASSEMBLY, front, for 12.4/11-24 inch tires, MFD tractors, P.I.N. 11518001 and after, Includes: Ref. 11 - 15
2шт.
11
K330081
RIM
wheel, W, 10 x 24, MFD tractors, P.I.N. 11518001 and after
1шт.
12
K330074
DISC, WHEEL
CENTER wheel, steel, MFD tractors, P.I.N. 11518001 and after
1шт.
13
1335133C1
PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9
BOLT - carriage, 16 mm - 2.00 x 74 mm, MFD tractors, P.I.N. 11518001 and after
6шт.
14
1335135C1
WASHER
flat, 17 x 33 x 5 mm, MFD tractors, P.I.N. 11518001 and after
6шт.
15
829-1416
NUT,M16, Cl 10
hex, 16 mm - 2.0, class 10, MFD tractors, P.I.N. 11518001 and after
6шт.
REF
INSTRUCTION
WHEEL ASSEMBLY, front, for 13.6/12-24 inch tires, MFD tractors, P.I.N. 11518001 and after, Includes: Ref. 11 - 15
2шт.
11
K330073
RIM
wheel, W, 12 x 24 inch, MFD tractors, P.I.N. 11518001 and after
1шт.
12
K330074
DISC, WHEEL
CENTER wheel, steel, MFD tractors, P.I.N. 11518001 and after
1шт.
13
1335133C1
PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9
BOLT - carriage, 16 mm - 2.00 x 74 mm, MFD tractors, P.I.N. 11518001 and after
6шт.
14
1335135C1
WASHER
flat, 17 x 33 x 5 mm, MFD tractors, P.I.N. 11518001 and after
6шт.
15
829-1416
NUT,M16, Cl 10
hex, 16 mm - 2.0, class 10, MFD tractors, P.I.N. 11518001 and after
6шт.
16
K260218
STUD
wheel fixing, prior to 709/19 axle no. 917, MFD tractors, P.I.N. 11518001 and after
16шт.
16
K260218
STUD
wheel fixing, 709/19 axle no. 917 and after, MFD tractors, P.I.N. 11518001 and after
12шт.
16
N13515
STUD
special, with collar, 709/19 axle no. 917 and after, MFD tractors, P.I.N. 11518001 and after
4шт.
17
K395089
WHEEL NUT
wheel, includes cone shaped washer, MFD tractors, P.I.N. 11518001 and after
16шт.
18
K395083
WASHER,18.5mm ID x 29mm OD x 7mm Thk
wheel nut, special, MFD tractors, P.I.N. 11518001 and after
16шт.
Выбрано товаров: 31
