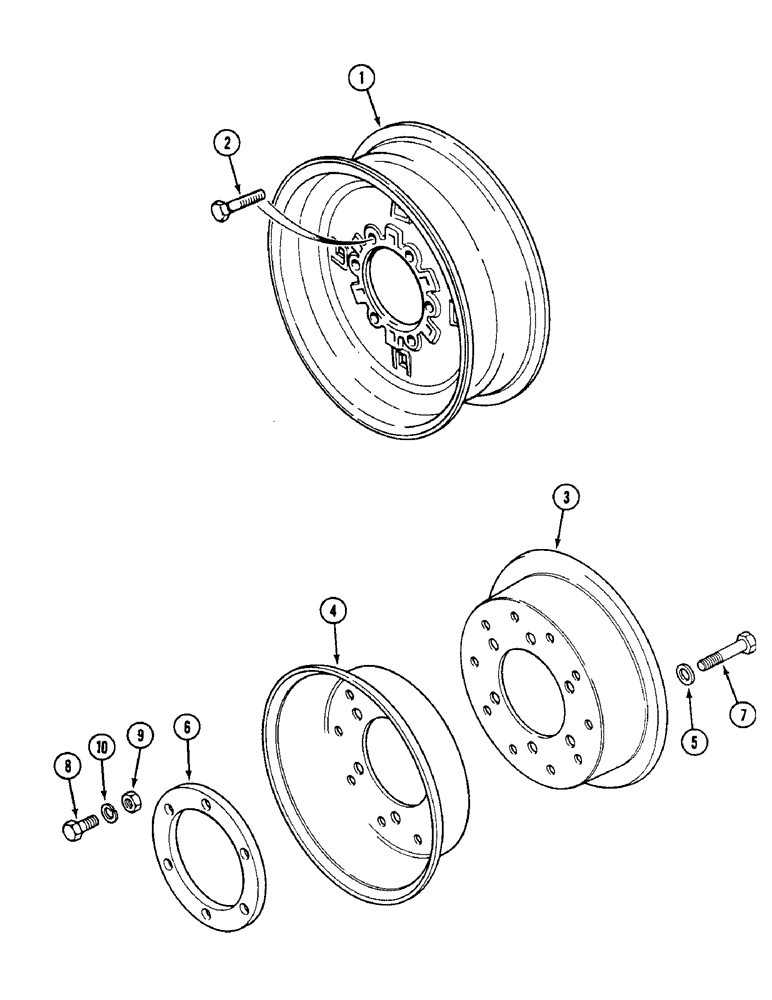

Запчасти Case IH 1494 (5-160) - FRONT WHEELS, TWO WHEEL DRIVE TRACTORS (05) - STEERING

1

G57046

WHEEL ASSY.

WHEEL front, 5.50F x 16 inch, fits 7.50-16 inch tires

2шт.

1

K301046

WHEEL

front, 5.50F x 18 inch, fits 7.50-18 inch tires

2шт.

1

K301430

WHEEL

front, W, 8 x 16 inch, fits 10.00-16 inch tires

2шт.

1

K309951

WHEEL

front, 8.00 LBH x 15 inch, fits 11L x 15 tubeless tires

2шт.

2

K600875

BOLT

wheel, 1/2 UNC x 1-7/8 inch

12шт.

REF

INSTRUCTION

WHEEL ASSEMBLY front, fits 9.00-10 inch tires, low profile special, Includes: Ref. 3 - 10

2шт.

3

NSS

NOT SOLD SEPARAT

WHEEL half, 5.50 x 10 inch, with valve hole, low profile special

1шт.

4

NSS

NOT SOLD SEPARAT

WHEEL half, 5.50 x 10 inch, without valve hole, low profile special

1шт.

5

K626687

WASHER

wheel bolt, 1/2 inch, 13 mm, special, low profile special

6шт.

6

K910174

BUSHING

SPACER front wheel, low profile special

1шт.

7

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Low profile special Hex, 1/2"-13 x 2", G5

6шт.

8

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Low profile special Hex, 1/2"-13 x 1", G5, Full Thd

10шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Low profile special 1/2"-13, G5

10шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Low profile special 1/2"

10шт.
