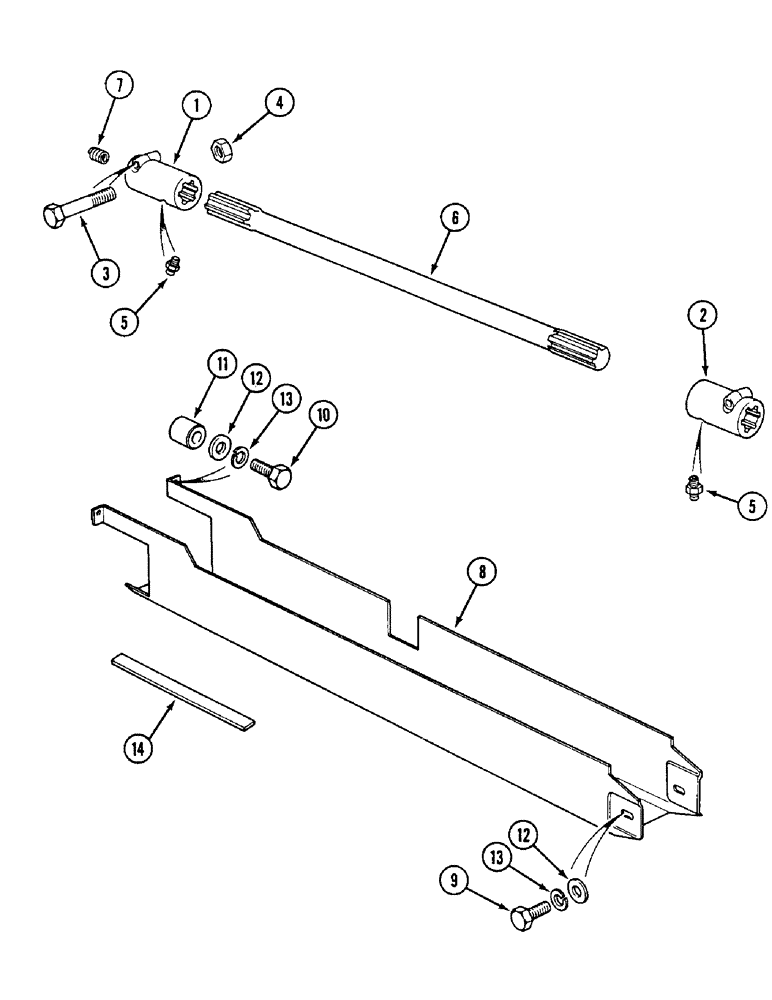

Запчасти Case IH 1494 (5-156) - FRONT AXLE DRIVE SHAFT, MFD TRACTORS, P.I.N. 11518001 AND AFTER (05) - STEERING

1

51200378

SPLINED COUPLING

COUPLING driveshaft, front

1шт.

2

K260761

SPLINED COUPLING

SLEEVE coupling, rear, Carraro 102033/1

1шт.

3

514-723

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

hex, 10 - 1.25 x 60 mm

4шт.

4

K965414

NUT

M10, Carraro 22411

4шт.

5

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

2шт.

6

K395172

SHAFT

axle drive, front, Carraro 118234

1шт.

7

K965410

SPRING

tension, Carraro 83787

1шт.

8

K205189

GUARD

drive shaft, Carraro 116144

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm

2шт.

10

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

11

K205188

BUSHING

SPACER guard, Carraro 87166

2шт.

12

K965421

WASHER

8 mm, Carraro 23109

4шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

14

K307295

STRIP

edging guard

2шт.
